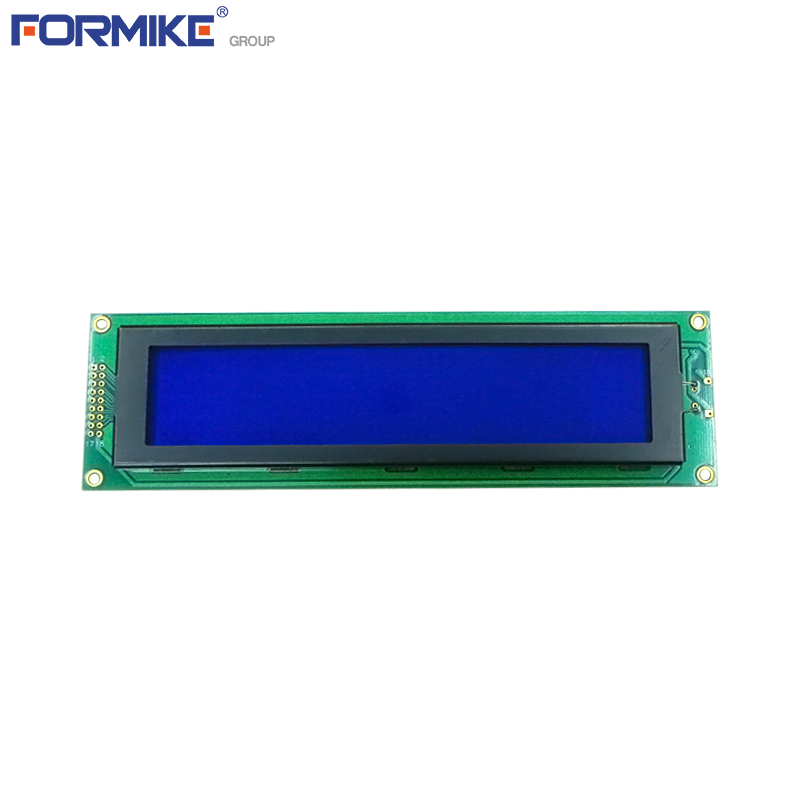

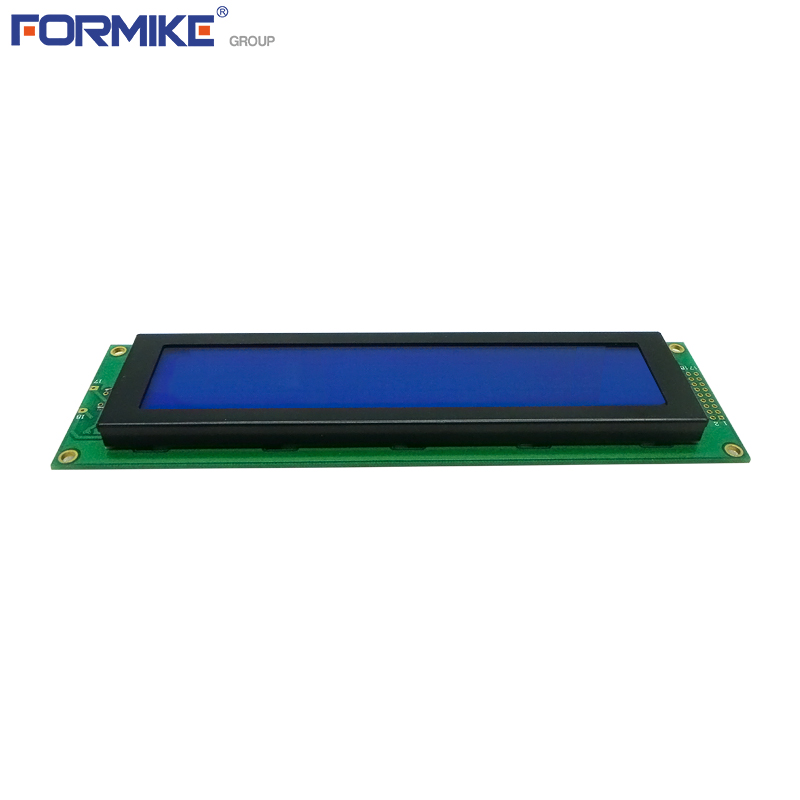

40x4 STN Type Character LCD 4004 40*4 Character COB LCD Display Module (WC4004A0SGW1B)

  • LCD Name:40x4 STN Type Character LCD 4004 40*4 Character COB LCD Display Module
  • Display Format:40character*4 line

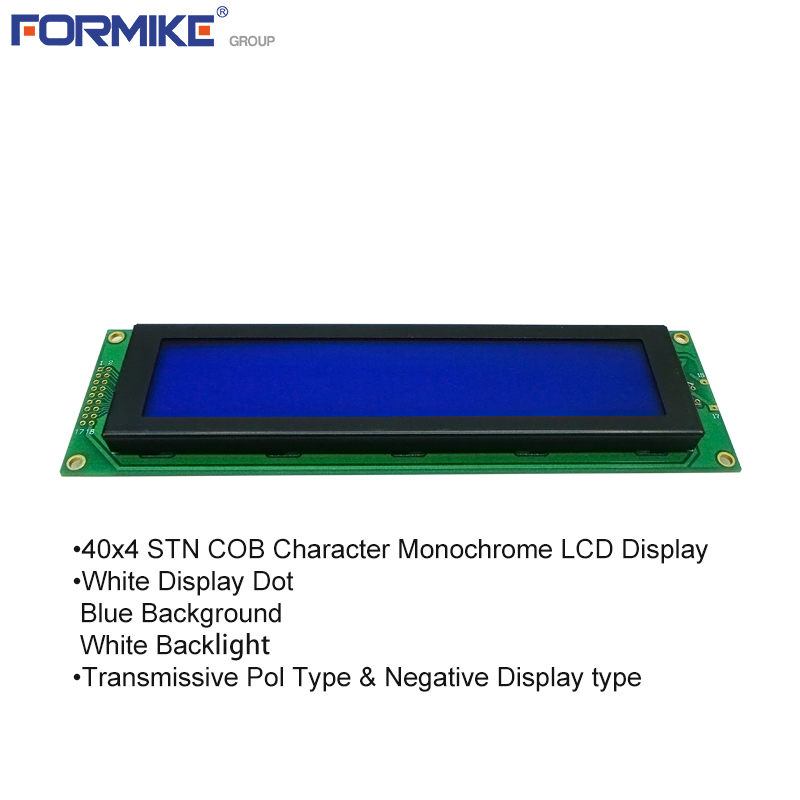

  • Display Mode:STN, Transmissive, Negative
  • LCD Color:Display dot : White; Background: Blue
  • Display Type:Character COB

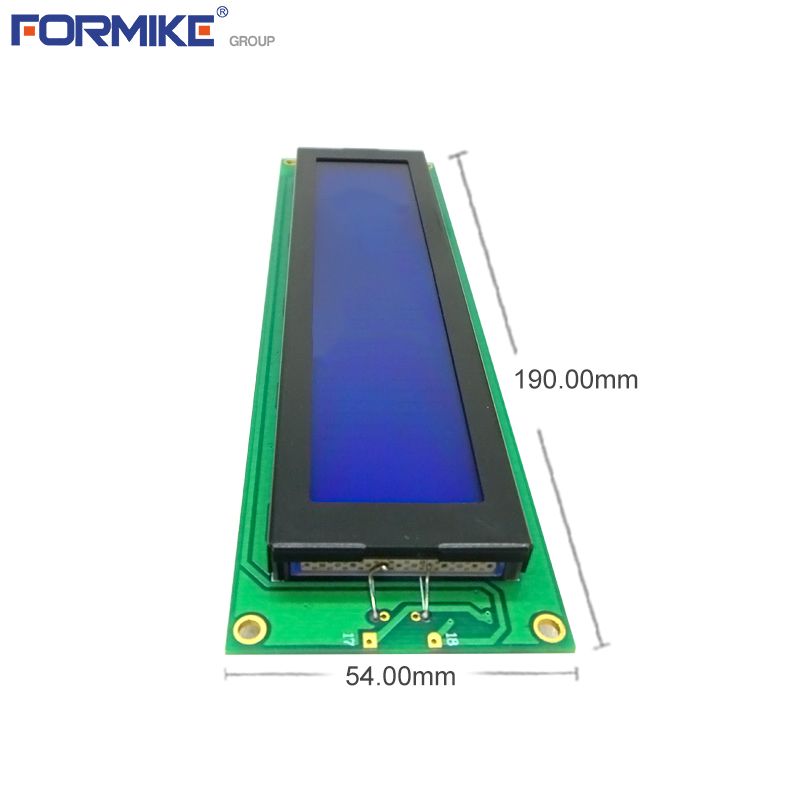

  • Outline Dimension:190.0(W) x54.0(H) x 14.9(T) mm
  • Viewing Area:147.0MIN(W) x54.0MIN(H)mm

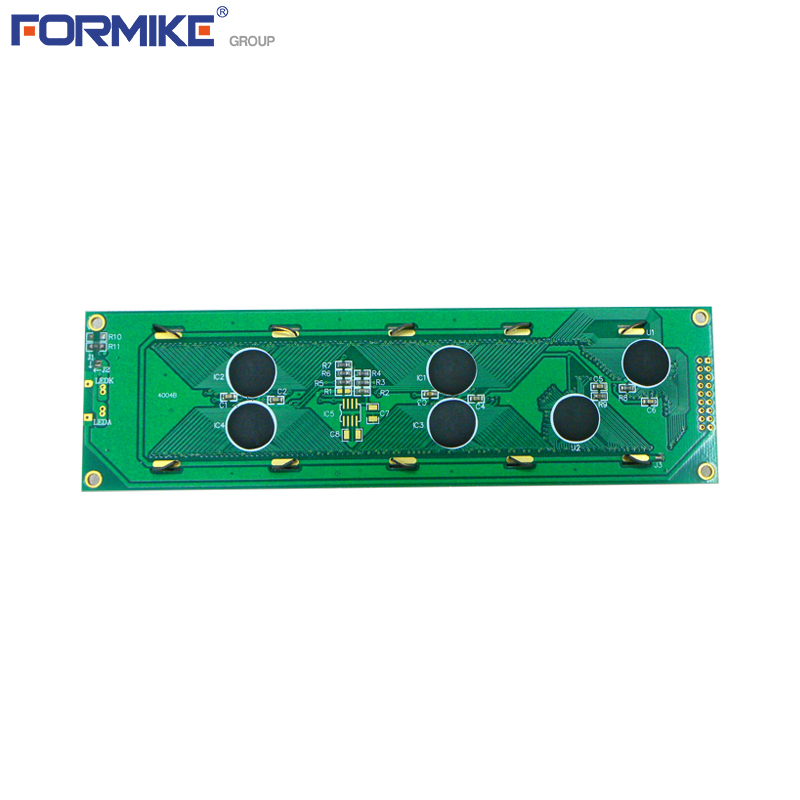

  • Drive IC:HD44780

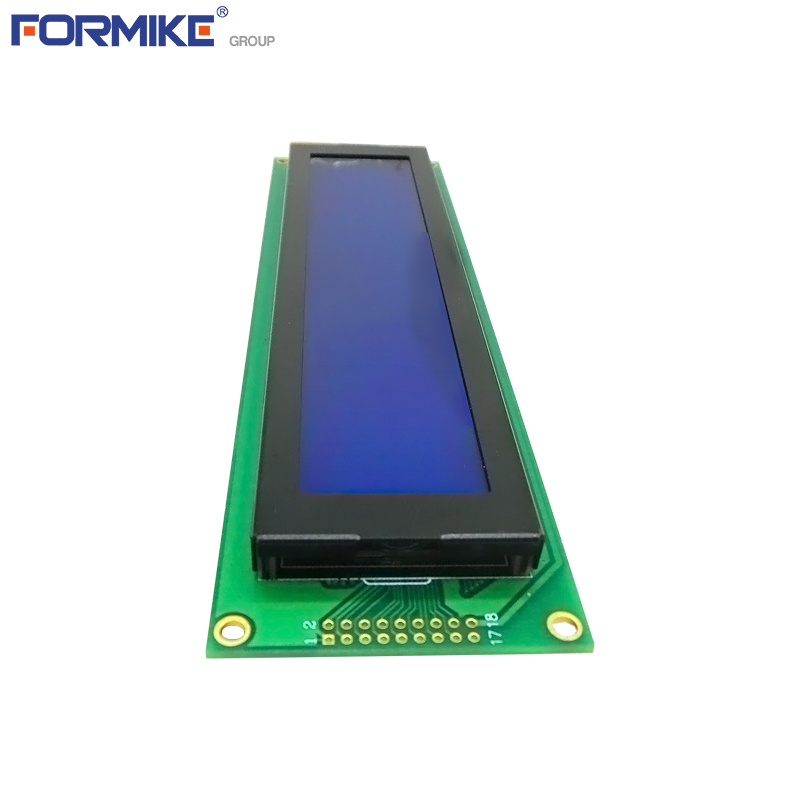

  • Pin No.:18 Pin
  • Viewing Direction:6 O’clock
  • Interface Input Data:Parallel
  • Backlight:White
  • Driving Method:1/16 Duty, 1/5 Bias
  • Operating Temp.:0℃~+50℃
  • Storage Temp.:-10℃~+60℃

40x4 STN Type Character LCD 4004 40*4 Character COB LCD Display Module

 LCD Name 40x4 STN Type Character LCD 4004 40*4 Character COB LCD Display Module

 Display Format

40character*4 line

 Display Mode

STN, Transmissive, Negative

LCD Color

Display dot : White
Background: Blue

 Display Type

 Character COB

 Outline Dimension

190.0(W) x54.0(H) x 14.9(T) mm

 Viewing Area

147.0MIN(W) x54.0MIN(H)mm
 Drive IC HD44780  Pin No. 18 Pin

 Viewing Direction

 6 O’clock

Interface Input Data

Parallel

 Backlight

White

 Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

  0℃~+50℃

 Storage Temp.

-10℃~+60℃

lcd display 40x4

character lcd 4004

STN type character lcd 40x4 character lcd module Character Monochrome lcd
