FormikeGroup was founded in 1999, which engaged in R&D, design, manufactureand sales of LCD display solution, Wi-Fi / Bluetooth Module, Smart Watch as well asaccessories of cell phone.
Ourexperienced technical on OEM and ODM and managerial personnel, strict qualitymanagement system, competitive prices ensure that we always be at the forefrontof LCD, Wifi Module, Smart Watch and accessories of cell phone industry. Contact Now

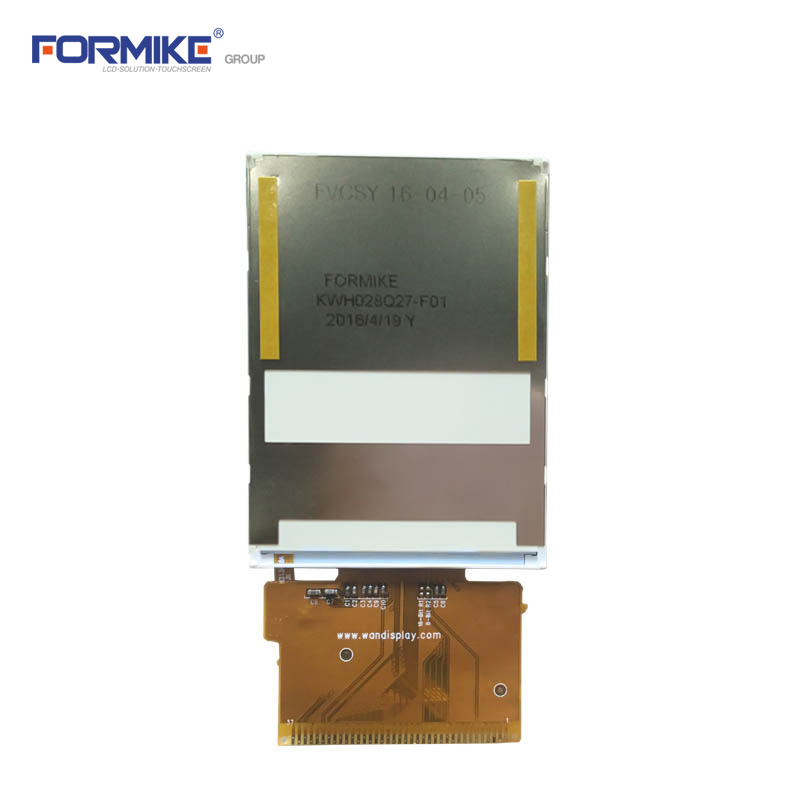

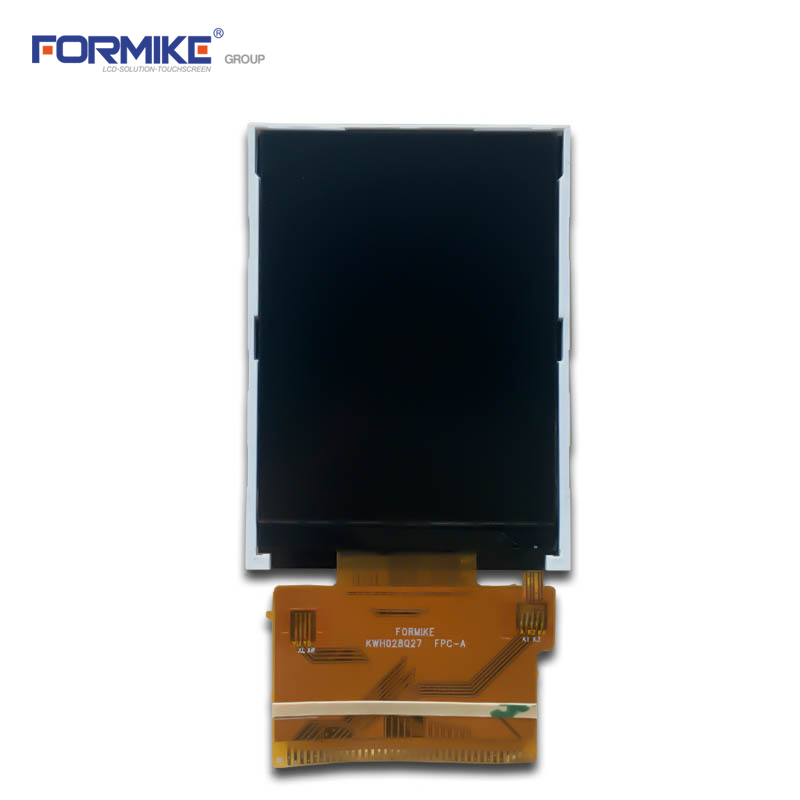

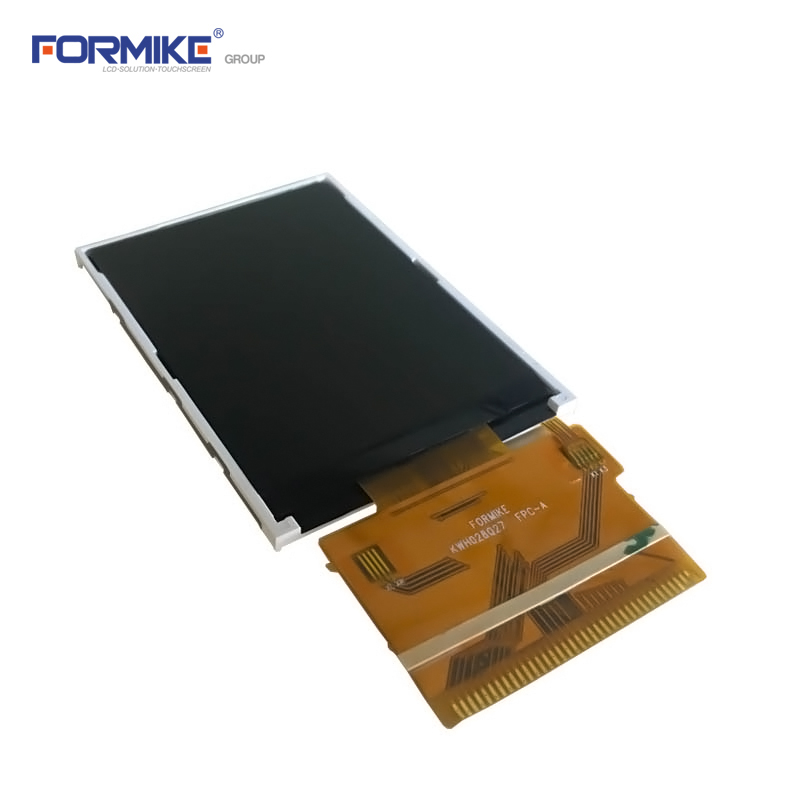

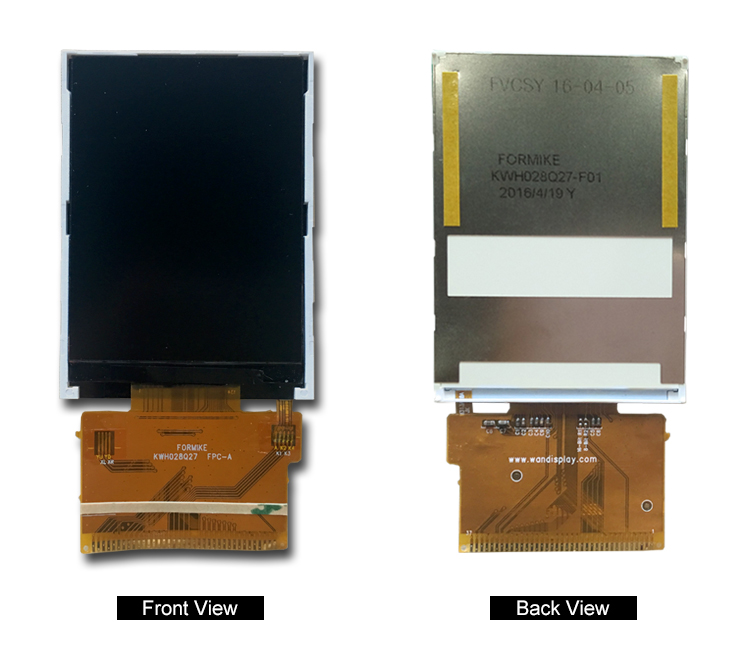

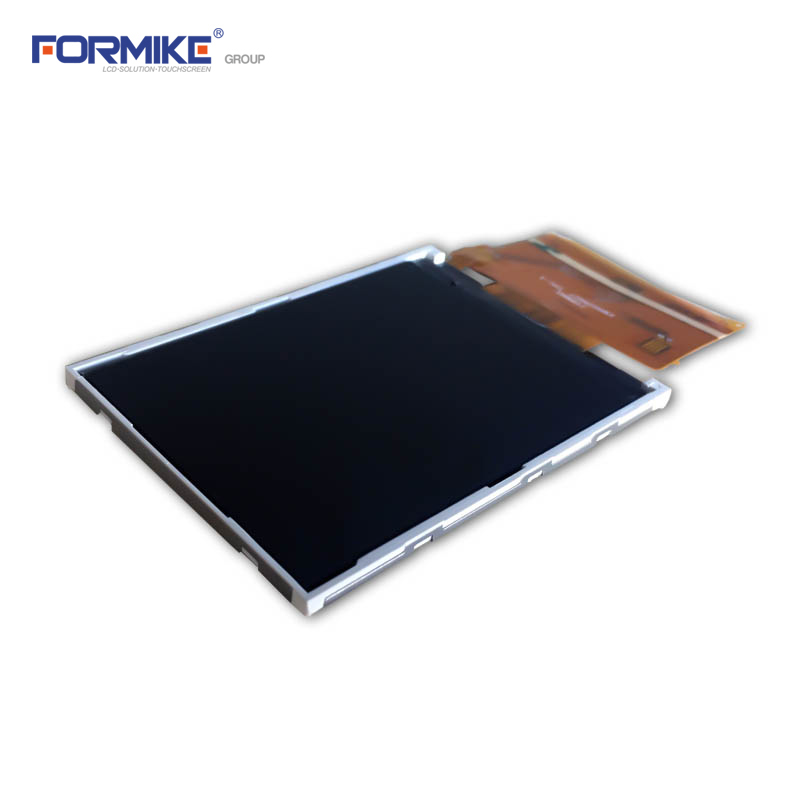

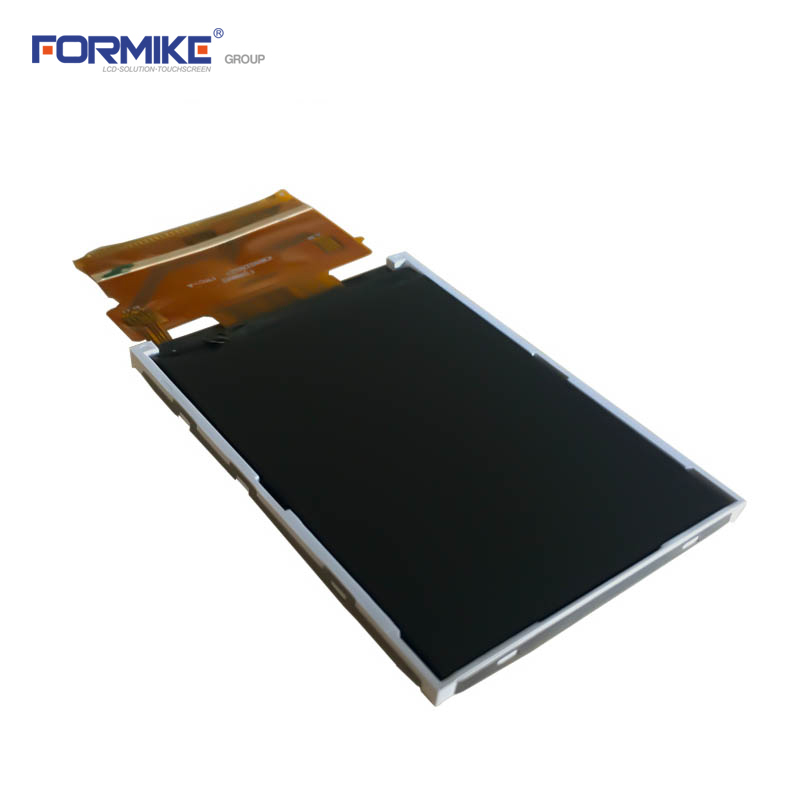

2.8 inch 240x320 LCD Supplier with MCU interface KWH028Q27-F01
- Main Specification
- 2.8 inch TFT LCD Display
- Resolution: 240 x3 RGB x 320
- Interface: 8 / 16 bits MCU, parallel
- Touch Panel : Without
|
Place of Origin: |
Guangdong, China (Mainland) |
|
Brand Name: |
FORMIKE |
|
Model Number: |
KWH028Q27-F01 |
|
Type: |
LCM |
|
LCD Type: |
2.8 inch Tft Lcd Module |
|
Display Mode: |
Normal White, Transmissive |
|
Resolution: |
240(RGB) x 320 |
|
Outline: |
50.00x69.20x2.45mm |
|
Active Area: |
43.2x57.6mm |
|
Interface: |
CPU 8/16 bits |
|
Brightness: |
320 cd/m2 |
|
Viewing Angle: |
6 O'clock |
|
Contrast Ratio: |
500:1 (Typ.) |
|
Touch Panel: |
without (option with) |
