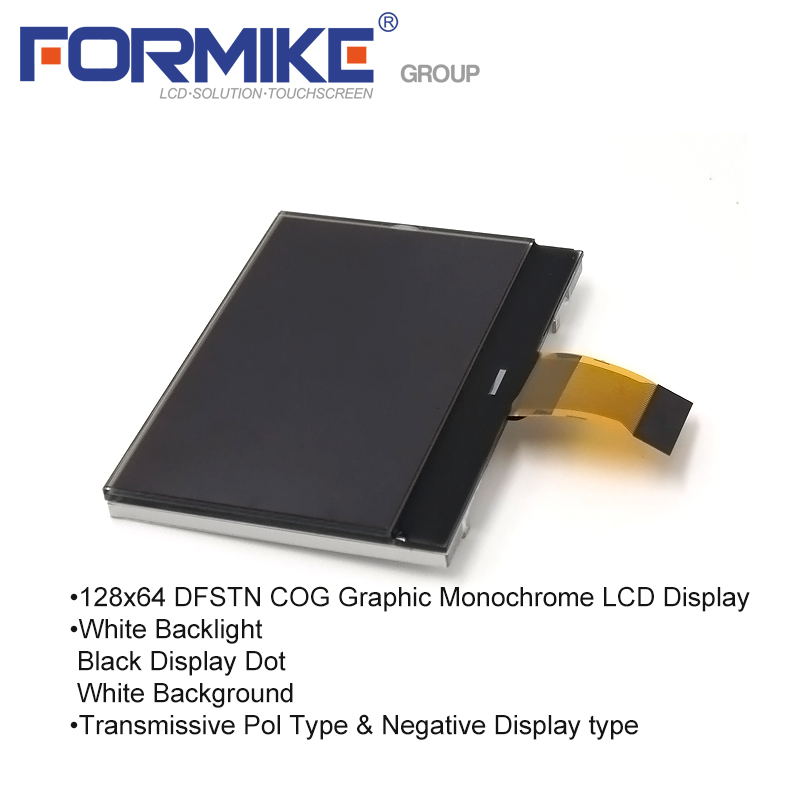

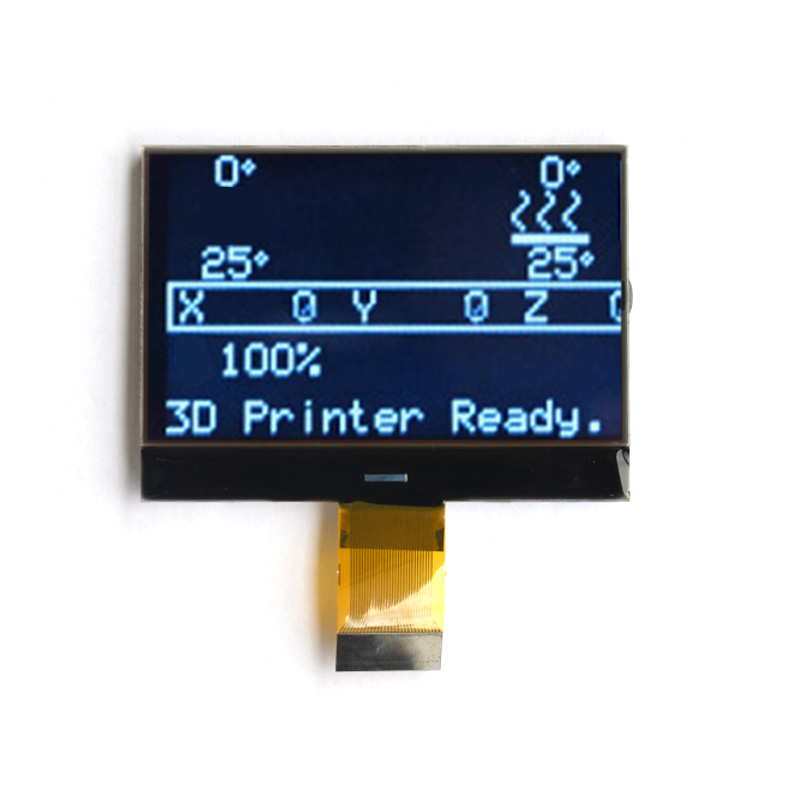

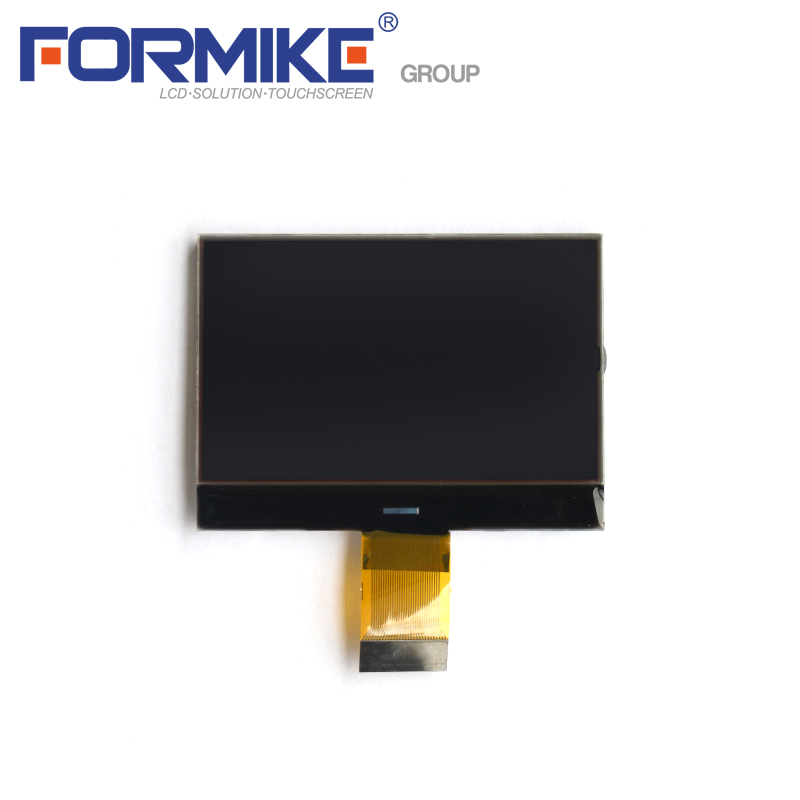

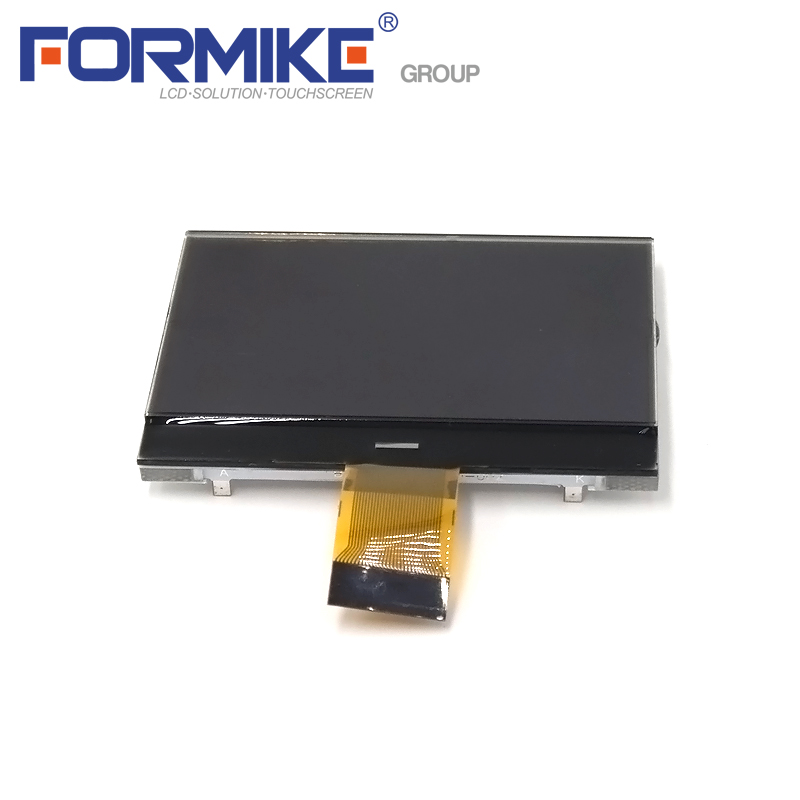

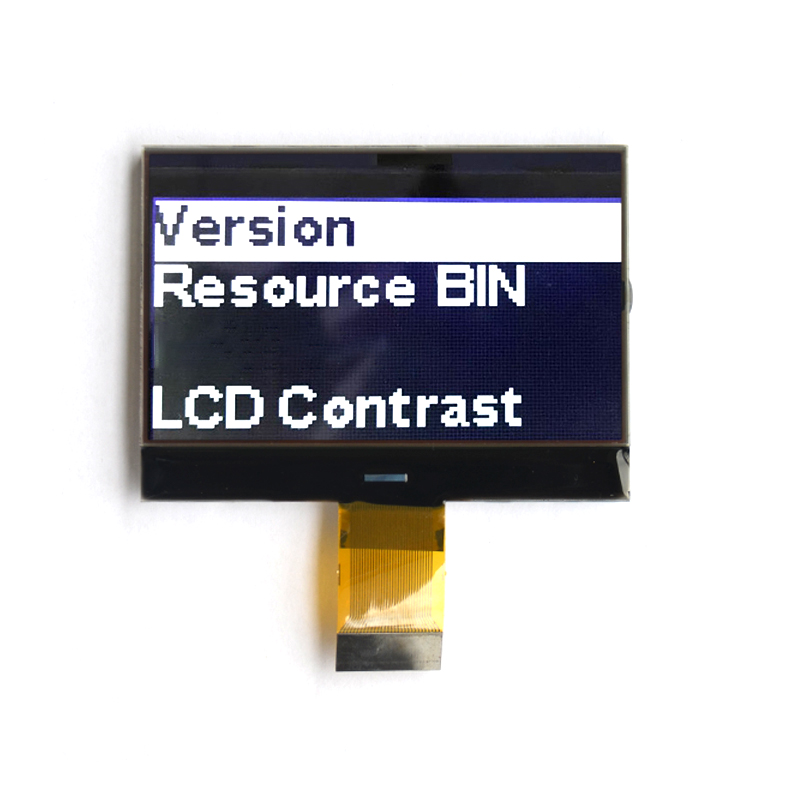

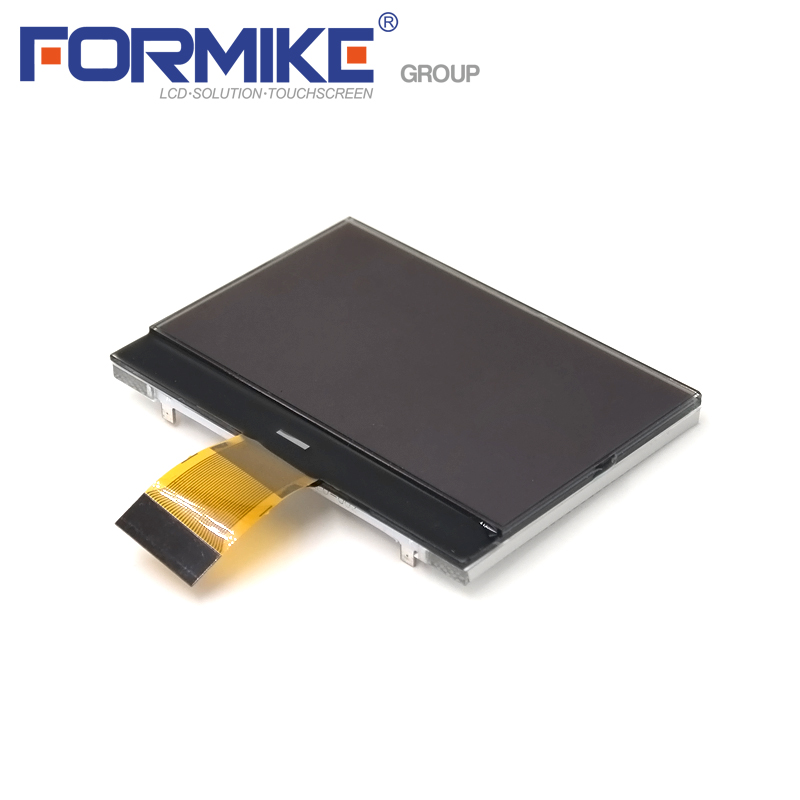

Monochrome Graphics LCD Display Module 128x64 Screen Graphic LCD(WG1206M9DVW6G)

Monochrome Graphics LCD Display Module 128x64 Screen Graphic LCD(WG1206M9DVW6G)

LCD Name: Monochrome Graphics LCD Display Module 128x64 Screen Graphic LCD
Display Format: 128*64
Display Mode: DFSTN, Transflective, Positive
LCD Color:Display dot : White; Background: Black
Display Type: Graphic COG
Outline Dimension: 71.0(W) x52.0(H) x 5.6 mm
Viewing Area: 67.0IN(W) x40.0MIN(H)mm
Drive IC: ST7565R-G
Pin No.: 30 Pin
Interface: 6800 Parallel MPU
Viewing Direction: 6 O’clock

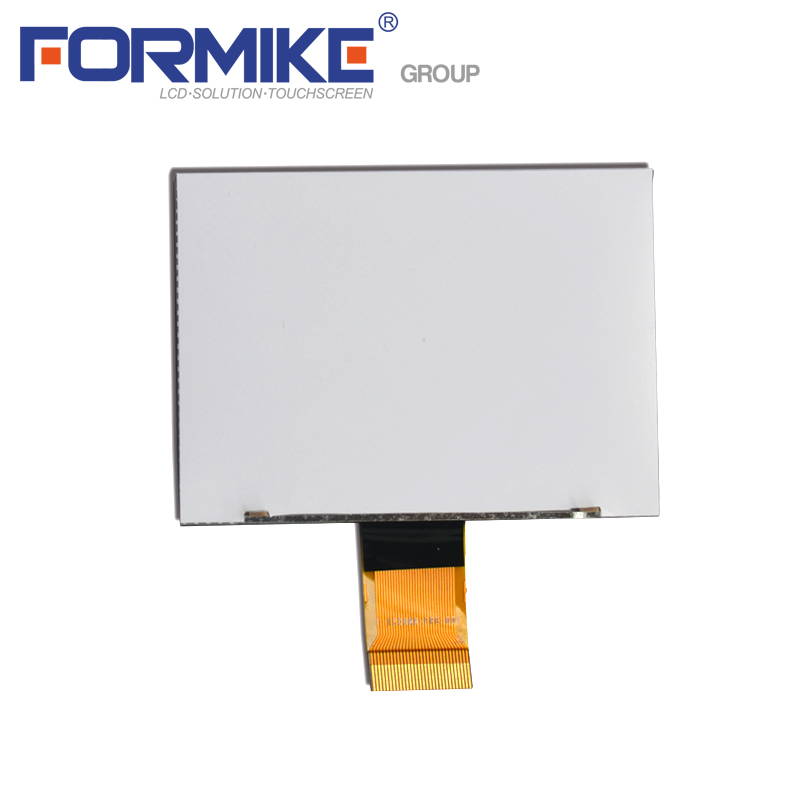

Backlight: White
Driving Method: 1/64 Duty, 1/9 Bias
Operating Temp.: -20℃~+70℃
Storage Temp.: -30℃~+80℃

Monochrome Graphics LCD Display Module 128x64 Screen Graphic LCD

LCD Name	Monochrome Graphics LCD Display Module 128x64 Screen Graphic LCD
Display Format	128 X 64 Dots	Display Mode	DFSTN, Negative, Transmissive
LCD Color	Display dot :White, Background: Black	Surface Treatment	Anti-glare
Outline Dimension	71.0(W) x52.0(H) x5.6(T) mm	Viewing Area	67MIN(W) x40MIN(H) mm
Viewing Direction	6 O’clock	Interface Input Data	6800Parallel
Backlight	White LED backlight	Driving Method	1/64 Duty, 1/9 Bias
Working Temp.	-20℃~+60℃	Storage Temp.	-30℃~+70℃

lcd display module 128x64 monochrome graphics lcd display module

128x64 cog display

lcd cog 128x64

128x64 cog graphic lcd display module
