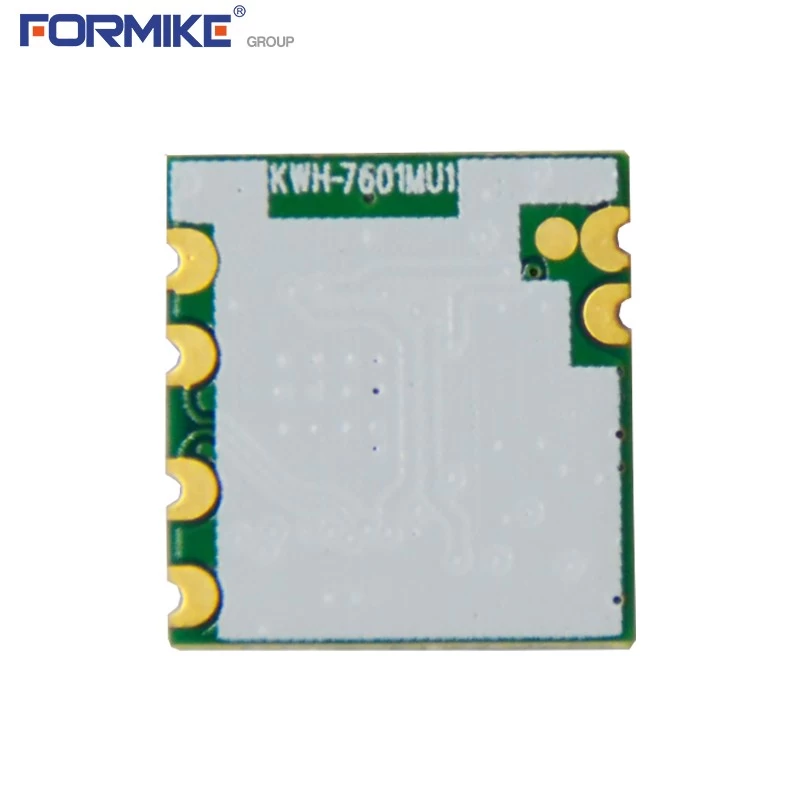

2.4GHz Wlan MTK7601 Wifi Module with USB Interface (KWH-7601-U1)2.4GHz Wlan MTK7601 Wifi Module with USB Interface (KWH-7601-U1)2.4GHz Wlan MTK7601 Wifi Module with USB Interface (KWH-7601-U1)2.4GHz Wlan MTK7601 Wifi Module with USB Interface (KWH-7601-U1)2.4GHz Wlan MTK7601 Wifi Module with USB Interface (KWH-7601-U1)2.4GHz Wlan MTK7601 Wifi Module with USB Interface (KWH-7601-U1)

2.4GHz Wlan MTK7601 Wifi Module with USB Interface (KWH-7601-U1)

  • Item:2.4GHz Wlan MTK7601 Wifi Module with USB Interface
  • Module No.:KWH-7601-U1
  • Chip:MTK 7601U
  • Host Interface:USB1.1, USB2.0
  • Standard:WiFi: IEEE 802.11 b/g/n CSMA/CA ACK, 802.11 d/h/k compliant
  • Frequency Range:2.4G (2.4-2.4835GHZ)
  • Dimension(L*W*H):12.2mm X 13.0mm X 0.6mm(PCB Size)
  • Power supply:DC 3.3V +-0.2V
  • Modulation:OFDM/DBPSK/DQPSK/CCK
  • Mode:Infrastructure/ Ad-Hoc
  • Data rate:150Mbps
  • Spreading:DSSS
  • Receive sensitivity:54M/135M:-72dBm@10%PER, 11M:-85dBm@8%PER, 6M: -88dBm@10%PER , 1M: -90dBm@8%PER
  • RF Power:135M: 16BM, 54M:16DBM, 11M:19DBM
  • RF Chains:2.4G:1T1R
  • Transmission distance:Indoor <100M, outdoor <300M
  • System platform:WIN2000/XP/VISTA/LINUX/WINCE/WIN7
  • Security support:WFA WPA/WPA2 personal,WPS2.0,WAPI
  • Qos support:WFA WMM,WMM PS
  • Operating temperature:-10ºC~70ºC
  • Operating humidity:10%~90% RH
  • Storage temperature:-40ºC~125ºC

2.4GHz Wlan MTK7601 Wifi Module with USB Interface

Product Details

USB Wifi 7601

Item
2.4GHz Wlan MTK7601 Wifi Module with USB Interface
Module No.
KWH-7601-U1
Chip
MTK 7601U
Host Interface
USB1.1
USB2.0
Standard
WiFi: IEEE 802.11 b/g/n CSMA/CA ACK, 802.11 d/h/k compliant

Frequency Range
2.4G (2.4-2.4835GHZ)
Dimension(L*W*H)
12.2mm X 13.0mm X 0.6mm(PCB Size)
Power supply
DC 3.3V +-0.2V
Modulation
OFDM/DBPSK/DQPSK/CCK
Mode
Infrastructure/ Ad-Hoc
Data rate 150Mbps
Spreading
DSSS
Receive sensitivity
54M/135M:-72dBm@10%PER11M:-85dBm@8%PER
6M: -88dBm@10%PER 1M: -90dBm@8%PER
RF Power
135M: 16BM,54M:16DBM, 11M:19DBM
RF Chains 2.4G:1T1R
Transmission distance Indoor <100M,outdoor <300M
System platform WIN2000/XP/VISTA/LINUX/WINCE/WIN7
Security support WFA WPA/WPA2 personal,WPS2.0,WAPI
Qos support WFA WMM,WMM PS
Operating temperature -10ºC~70ºC
Operating humidity 10%~90% RH
Storage temperature -40ºC~125ºC

Wifi Module

  • With the features such as high safety,strong compatibility,good stability and simple configuration;
  • Support 802.11 d/h/k compliant and with IEEE 802.11 b/g/n client;
  • Security support for WFA WPA/WPA2 personal,WPS2.0,WAPI;
  • Supports 802.11w protected managed frames;
  • Qos support of WFA WMM,WMM PS;
  • Supports Wi-Fi Direct;
  • Fully compliance with USB v2.0 high-speed mode;
  • Integrate high efficiency switching regulator.

7601 Wifi ModuleUSB Wifi ModuleWifi usb Module

Our Advantages


Related Products
Company Information

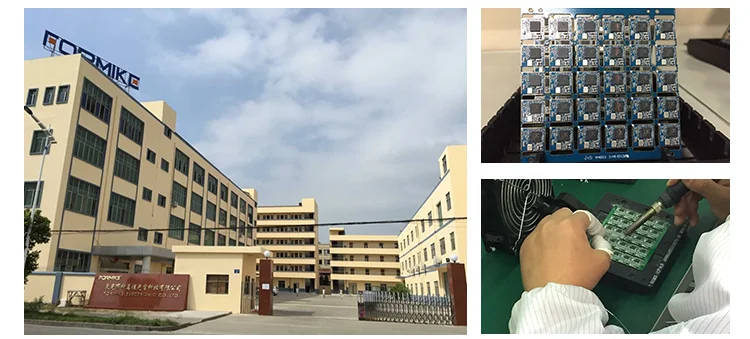

FORMIKE Group,was established in Shenzhen in 1999.
The registered capital is US$350 million and the investment has over more than USD $600 million.
WIFI/Bluetooth module is a new business division established in 2015. It is committed to research and development of products suitable for the embedded industry of the IoT.
Formike has strong technical strength, and more than 20% of the company's employees are experienced technical researchers.


We have automatic SMT high-speed production line, wave soldering plug-in line, test line, aging room, shielding room, assembly line, packaging line, quality laboratory and other equipment and facilities, provide mature solutions are widely used in smart homes, intelligent buildings , smart hotel, smart park, smart health, smart security, smart travel and other fields; we can provide integrated software and hardware solutions.

The company is currently in strategic cooperation with Realtek, Broadcom, Marvell, Mediatek, Atherosdp to provide assurance for our supply and service, and to provide a guarantee for the rapid and sustainable development of FORMIKE.FORMIKE Group’s products are covered Front glass, Bezel, Glass bonding with Bezel, LED backlight as well as Digitizer for cell phone and mobile devices.


Wifi-Module_16

FAQ

 4  9.png



1.Q: Do you have any MOQ limit for an order?
A:No MOQ Limit, we welcome any client to purchase the sample for test purpose.


2.Q: How to proceed an order?
A: Firstly, let us know your requirements or application.

Secondly, we quote according to your requirements or our suggestions.

Thirdly, customer confirms the samples and pay deposit for the official order.

Finally, we arrange the production and shipping.


3.Q: How do you guarantee the quality?
A: One year of industry guarantee, 100% pre-shipment testing to ensure product quality, so that customers can rest assured that the use of my products

4.Q: Do you provide samples? Is it free or extra?
A: We provide sample free of change with conditionally. Contact us for more information to get more option for samples


5.Q:RMA Process
A:Claimed by cliens with photos or videos → Sales rep of Formike confirm if have questions
→ Sales rep issue RMA No to clients if confirmed by QA → Return to Formike → Formal
report after goods received by Formike → Clients confim the analysis report → Proceeding
as per the Report both agreed
