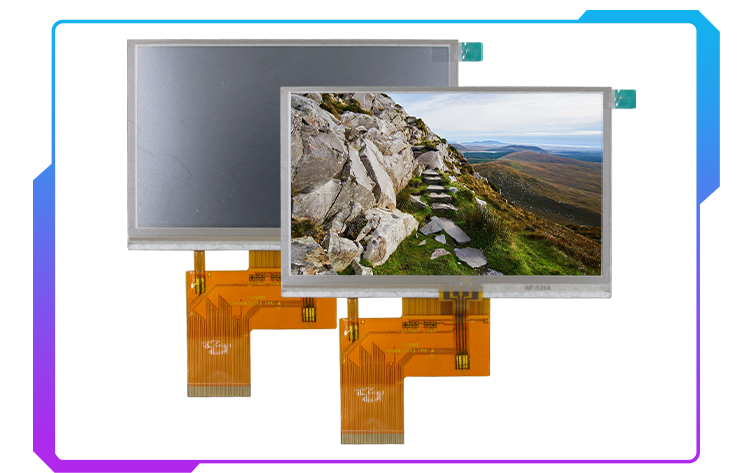

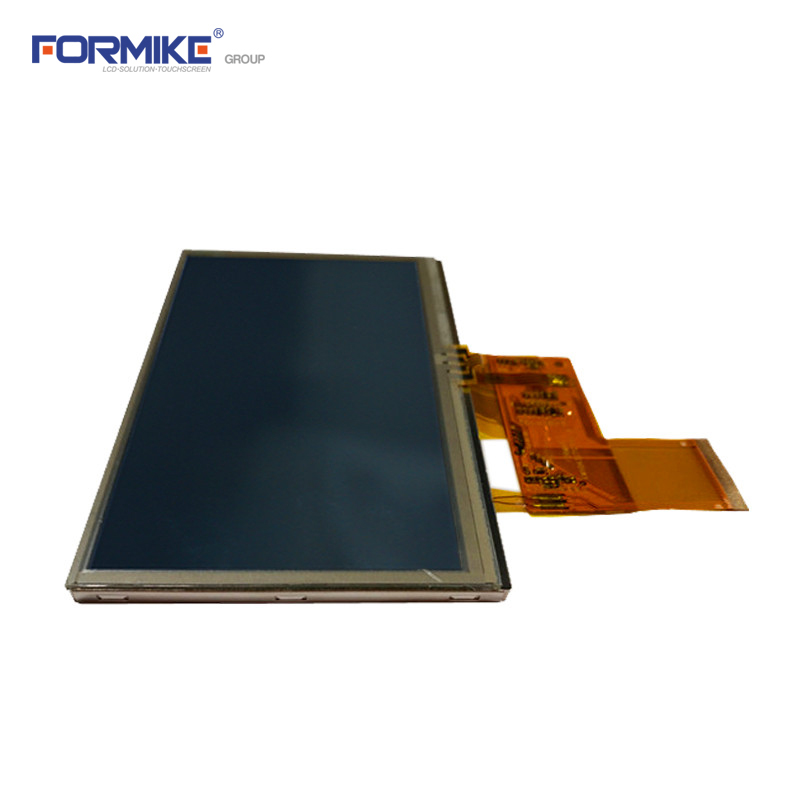

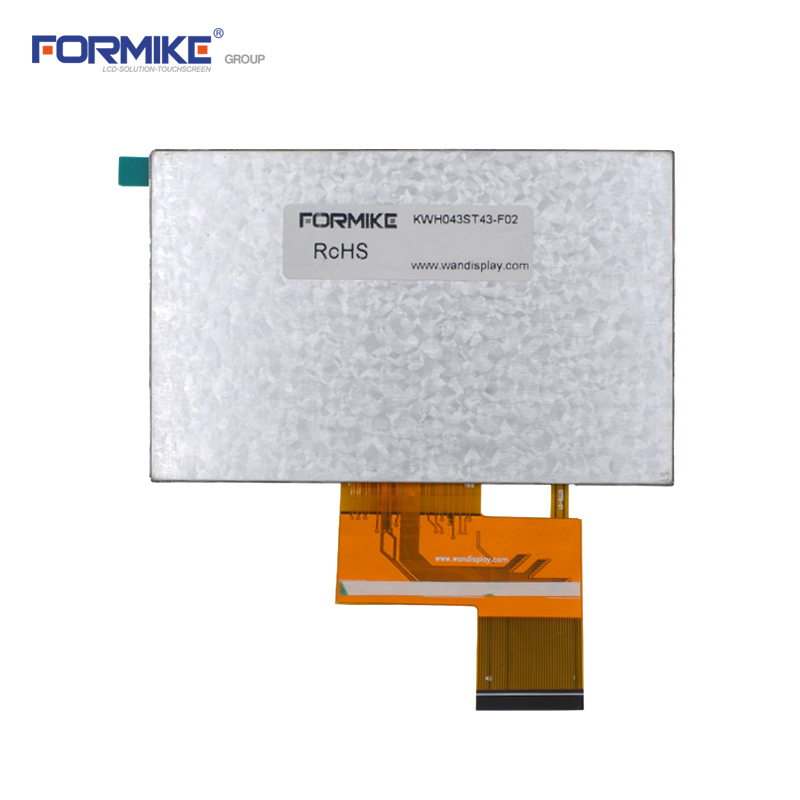

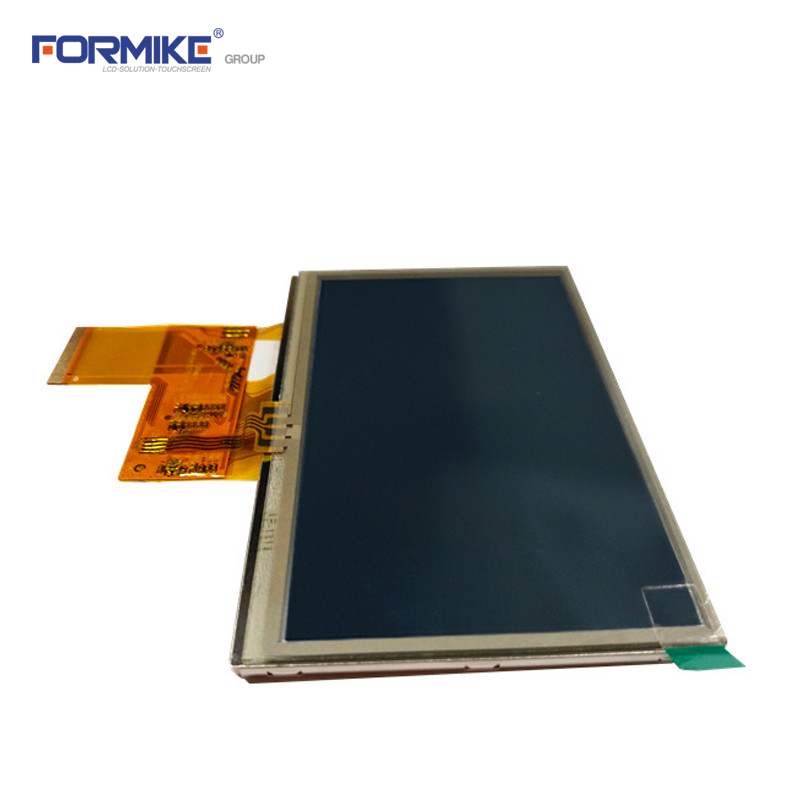

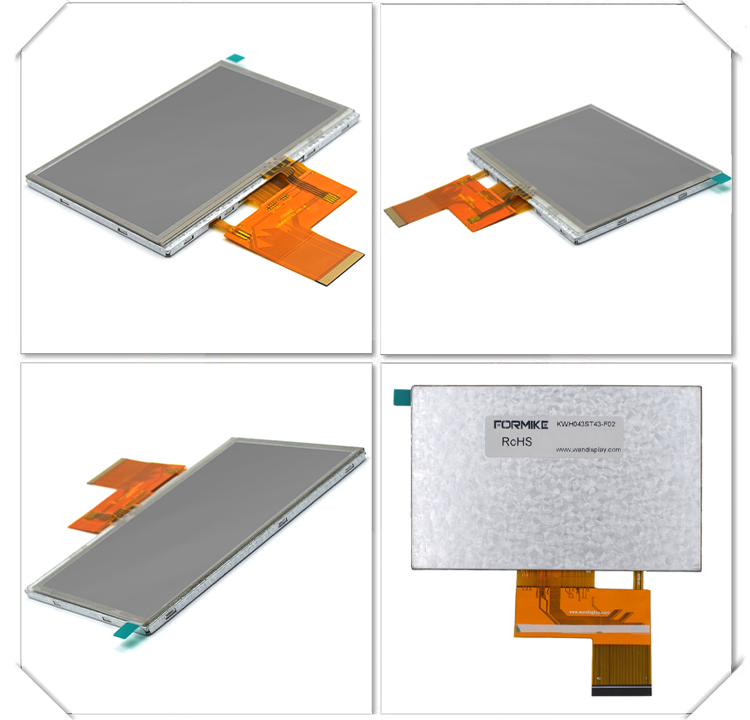

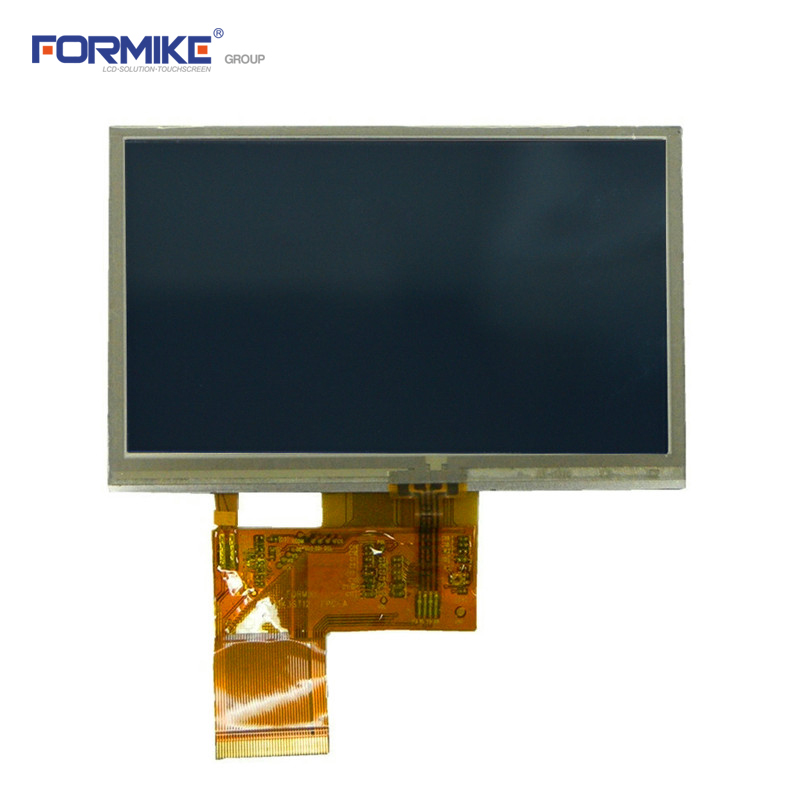

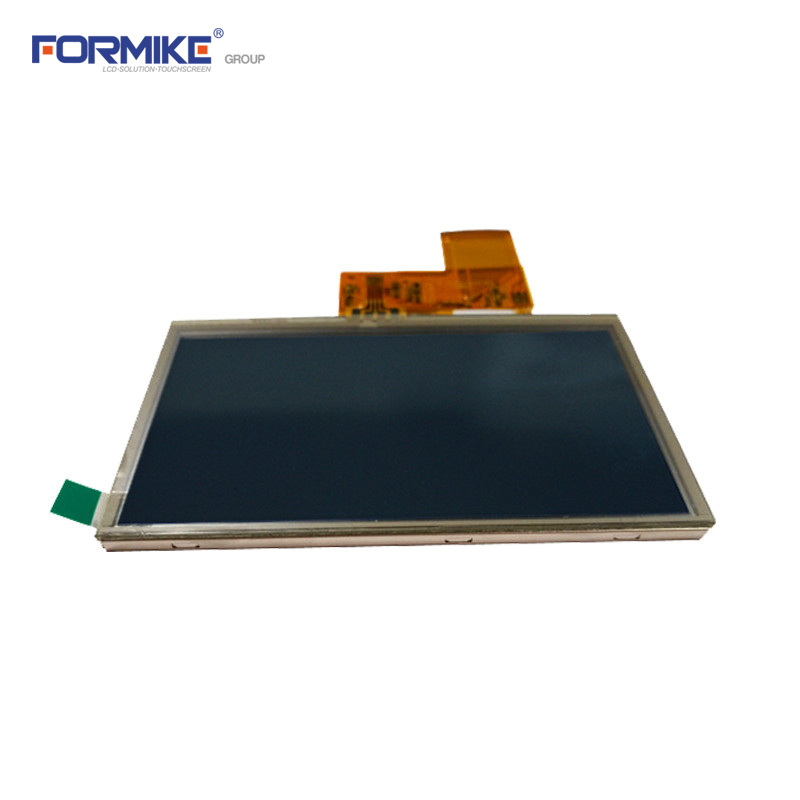

Hot product 4.3" tft lcd 480x272 touch module with resistive touch panel (KWH043ST43-F02 )

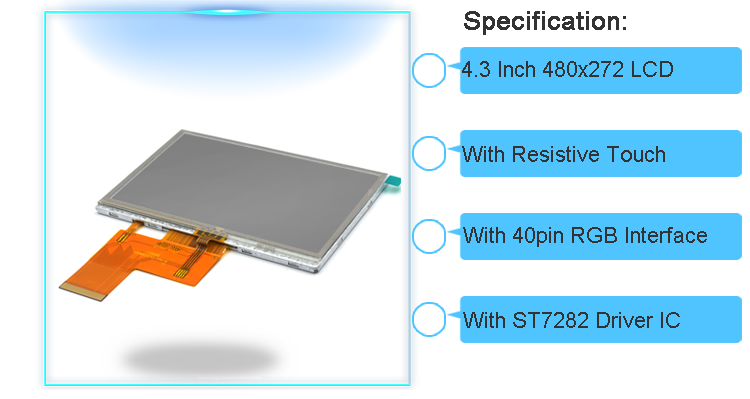

- Main Specification
- 4.3 inch TFT LCD MODULE
- Resolution: 480 x3 RGB x272
- Interface: Digital R.G.B 24bit
- Touch Panel : With
|
Place of Origin: |
Guangdong, China (Mainland) |
|
Brand Name: |
FORMIKE |
|
Model Number: |
KWH043ST43-F02 |
|
Type: |
TFT |
|
TFT Type: |
4.3inch tft lcd touchscreen |
|
TFT Size: |
4.3" TFT |
|
Display Type: |
Normally White,Transmissive |
|
Resolution: |
480 x 3 RGB x 272 |
|
Module Size: |
105.5x67.2x4.2mm |
|
V.A size: |
95.04(W)x53.856(L)mm |
|
Backlight: |
7 LEDs white LED |
|
Interface: |
RGB 24bits |
|
Touch Panel: |
With resistive touch panel |
