Hot product 4.3" tft lcd 480x272 touch module with resistive touch panel (KWH043ST43-F02 )Hot product 4.3" tft lcd 480x272 touch module with resistive touch panel (KWH043ST43-F02 )Hot product 4.3" tft lcd 480x272 touch module with resistive touch panel (KWH043ST43-F02 )Hot product 4.3" tft lcd 480x272 touch module with resistive touch panel (KWH043ST43-F02 )Hot product 4.3" tft lcd 480x272 touch module with resistive touch panel (KWH043ST43-F02 )Hot product 4.3" tft lcd 480x272 touch module with resistive touch panel (KWH043ST43-F02 )

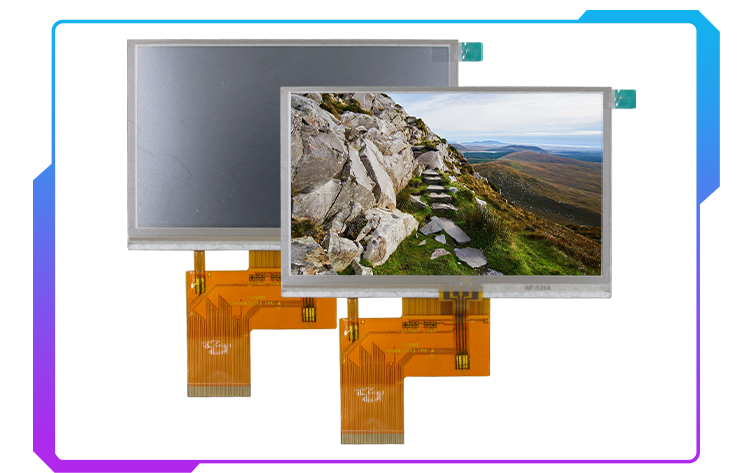

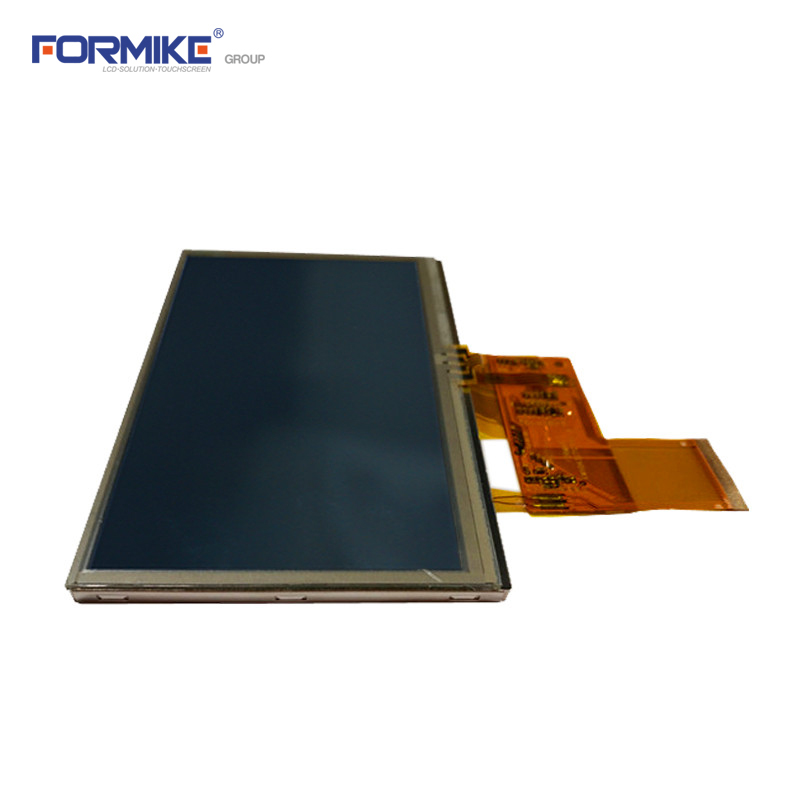

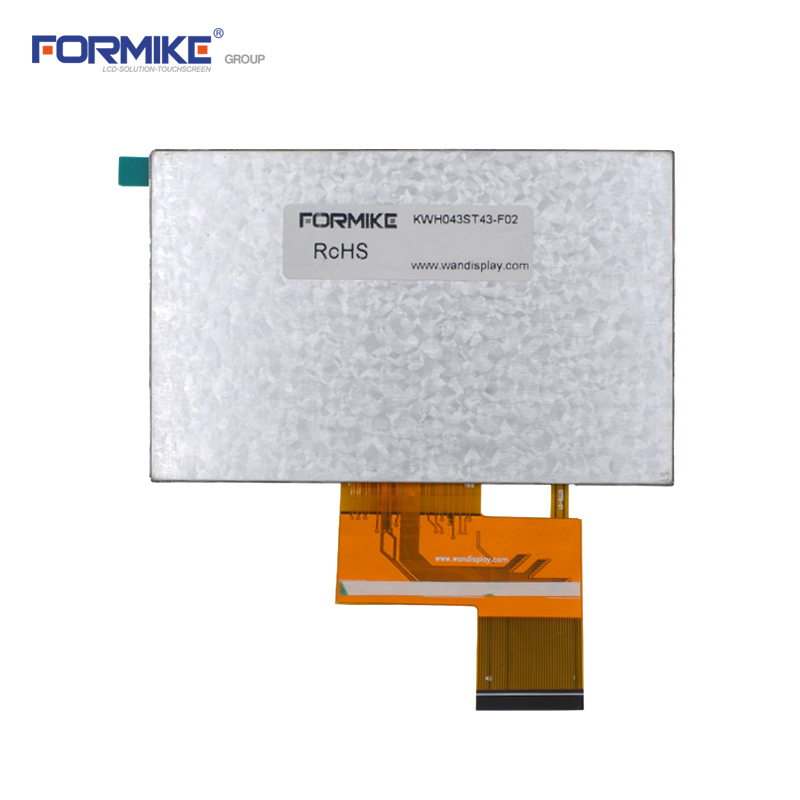

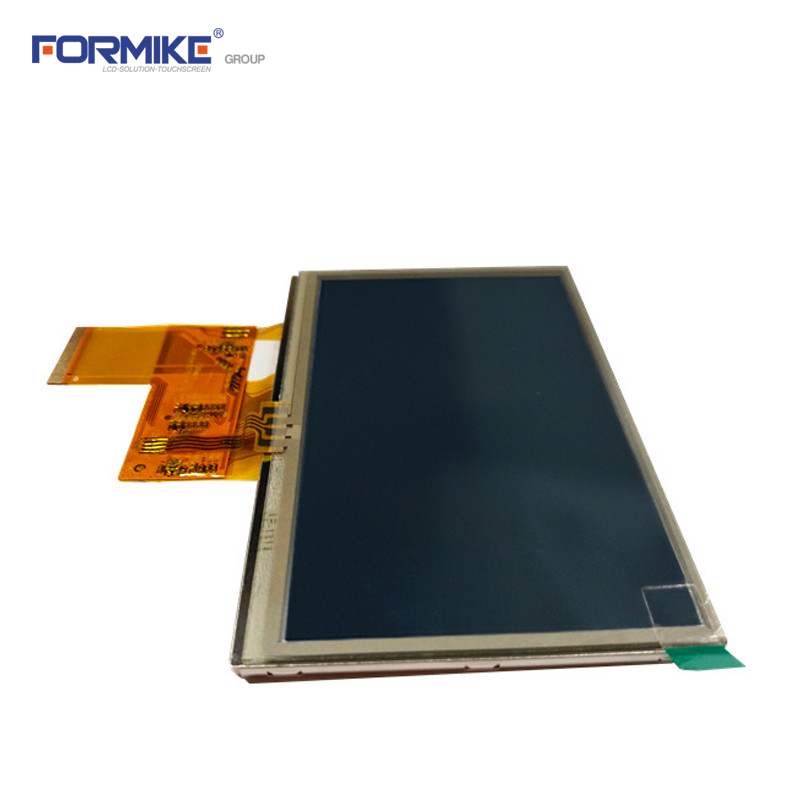

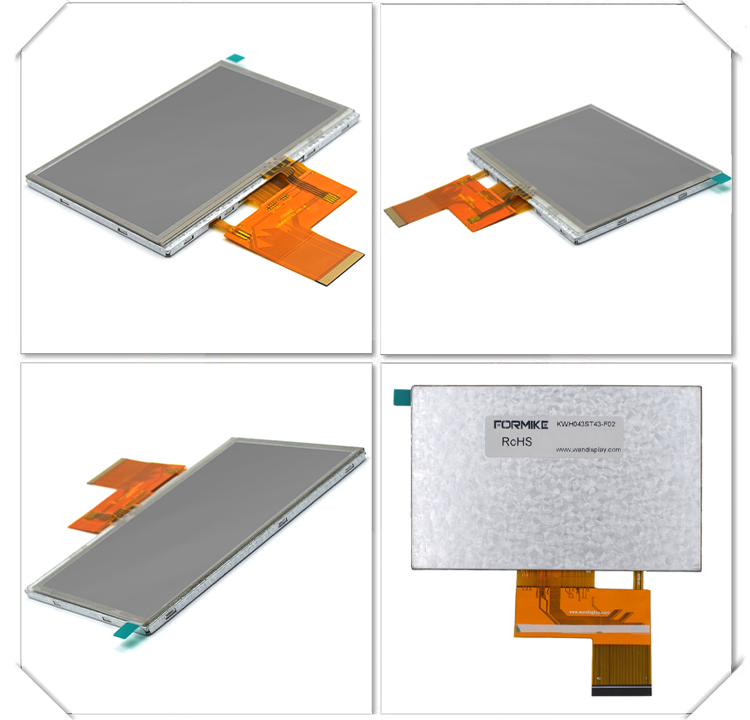

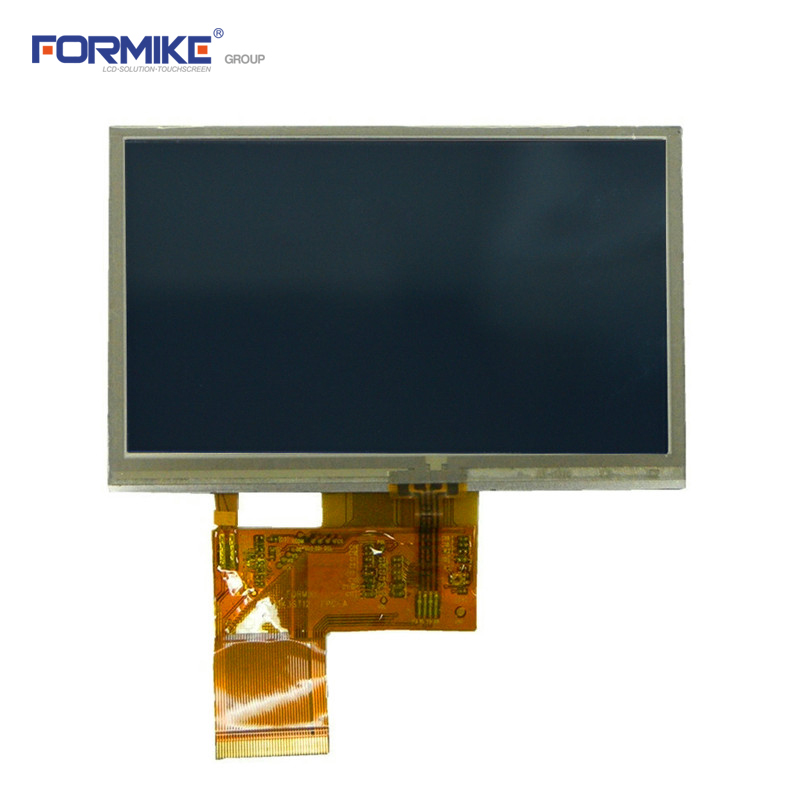

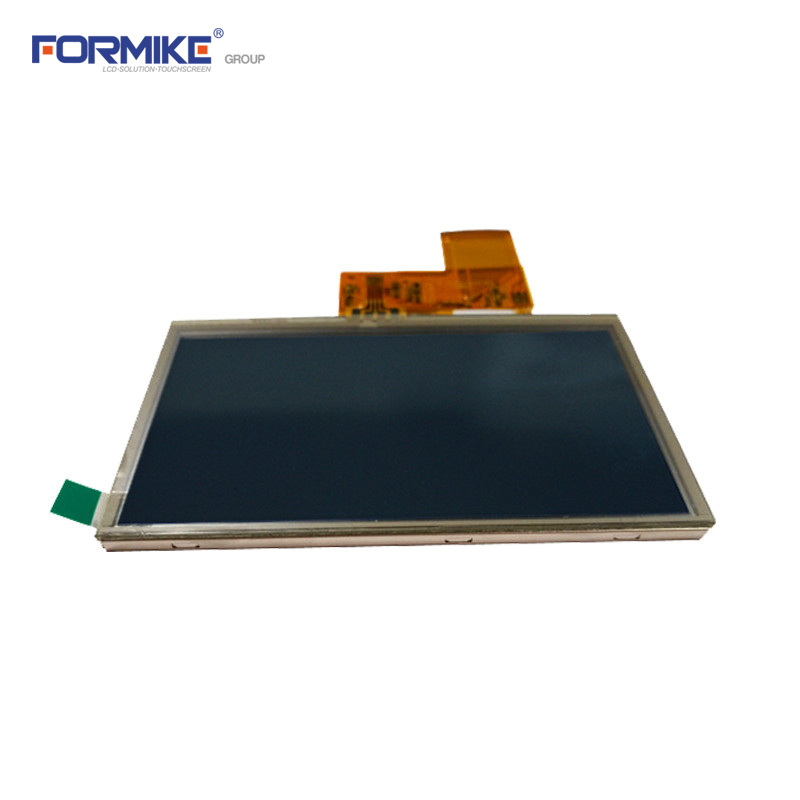

Hot product 4.3" tft lcd 480x272 touch module with resistive touch panel (KWH043ST43-F02 )

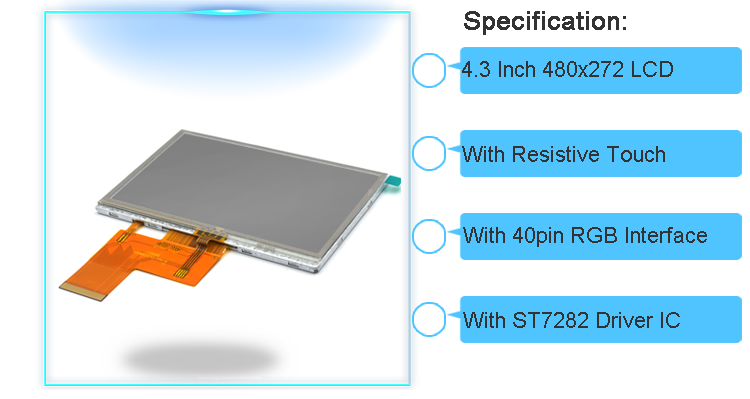

  • Main Specification
  • 4.3 inch TFT LCD MODULE
  • Resolution: 480 x3 RGB x272
  • Interface: Digital R.G.B 24bit
  • Touch Panel : With
4.3

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

FORMIKE

Model Number:

KWH043ST43-F02

Type:

TFT

TFT Type:

4.3inch tft lcd touchscreen

TFT Size:

4.3" TFT

Display Type:

Normally White,Transmissive

Resolution:

480 x 3 RGB x 272

Module Size:

105.5x67.2x4.2mm

V.A size:

95.04(W)x53.856(L)mm

Backlight:

7 LEDs white LED

Interface:

RGB 24bits

Touch Panel:

With resistive touch panel

 view more:

tft lcd 480x272

4.3

Tag:
FORMIKE ELECTRONIC CO.,LTD

Tel:+86 135 0965 9856

Contact Person:Coco Liu

PDF Show:PDF

Coco Liu
Send Inquiry
