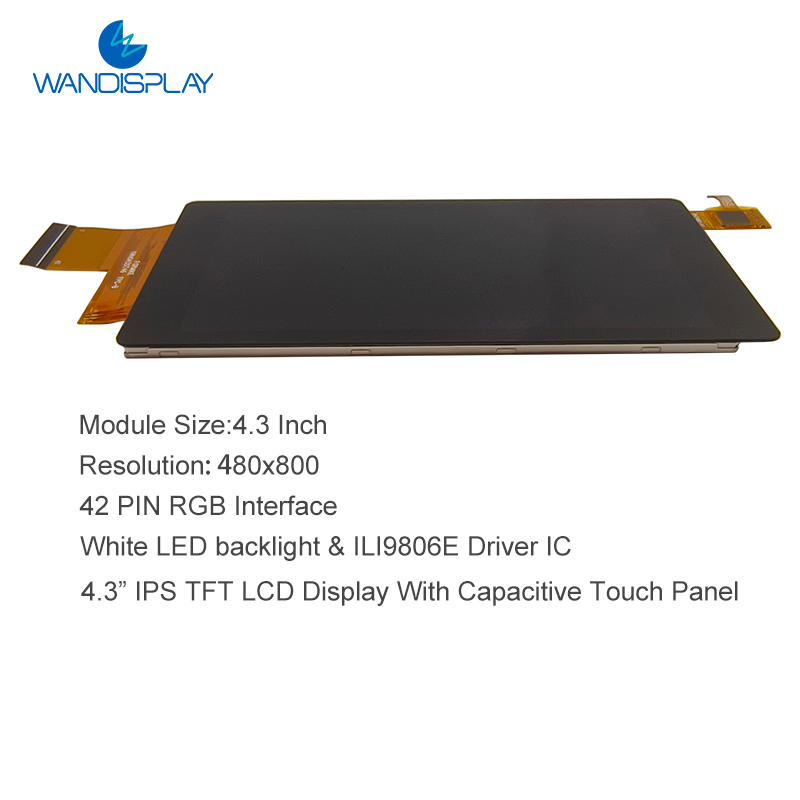

Product Name: 480x800 4.3 Inch Touch Screen Display TFT RGB 480x800 LCD Module 4.3" LCD Display With CTP (KWH043ST48-C01)
LCD Size: 4.3 Inch IPS TFT LCD Display Module
Display Mode: IPS
Resolution: 480x800

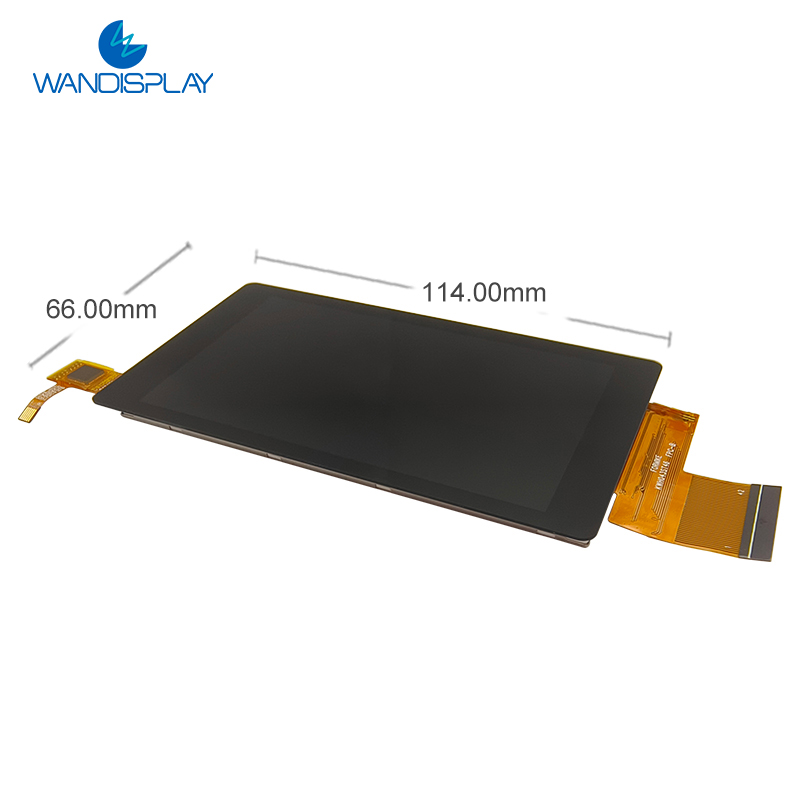

Outline Dimension (mm): 66.00x114.00x3.66
Active Area (mm): 56.16x93.60
Dot pitch (mm): 0.117x0.117
Viewing Direction: All
Interface: 24 BIT RGB Interface, 42 Pin
Driver IC: ILI9806E
Brightness (Cd/m2): 300
Contrast Ratio: 1500:1
Backlight: 8 White LED
Backlight Supply (Current/Voltage): 40mA 12.8V
Touch Screen: With Capacitive Touch Panel

480x800 4.3 Inch Touch Screen Display TFT RGB 480x800 LCD Module 4.3" LCD Display With CTP

4.3

Product Name	480x800 4.3 Inch Touch Screen Display TFT RGB 480x800 LCD Module 4.3" LCD Display With CTP
LCD Size	4.3 Inch IPS TFT LCD Display Module
Display Mode	IPS
Resolution	480x800
Outline Dimension (mm)	66.00x114.00x3.66
Active Area (mm)	56.16x93.60
Dot pitch (mm)	0.117x0.117
Viewing Direction	All
Interface	24 BIT RGB Interface, 42 Pin
Driver IC	ILI9806E
Brightness (Cd/m²)	300
Contrast Ratio	1500:1
Backlight	8 White LED
Backlight Supply (Current/Voltage)	40mA 12.8V
Touch Screen	With Capacitive Touch Panel

* KWH043ST48-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x800 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

tft rgb 480x800 lcd module 480x800 4.3 inch touch screen display
