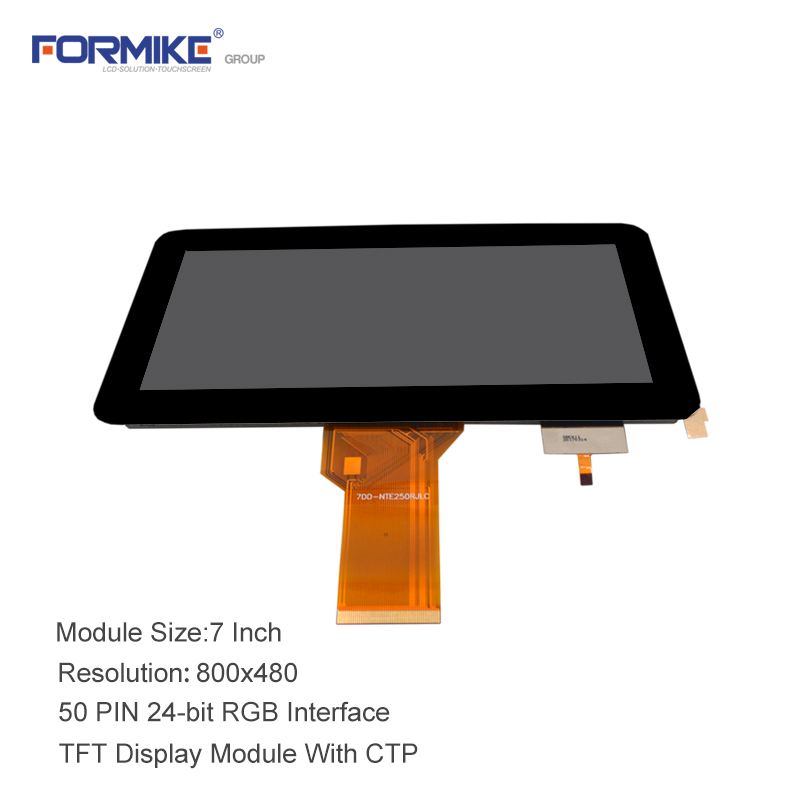

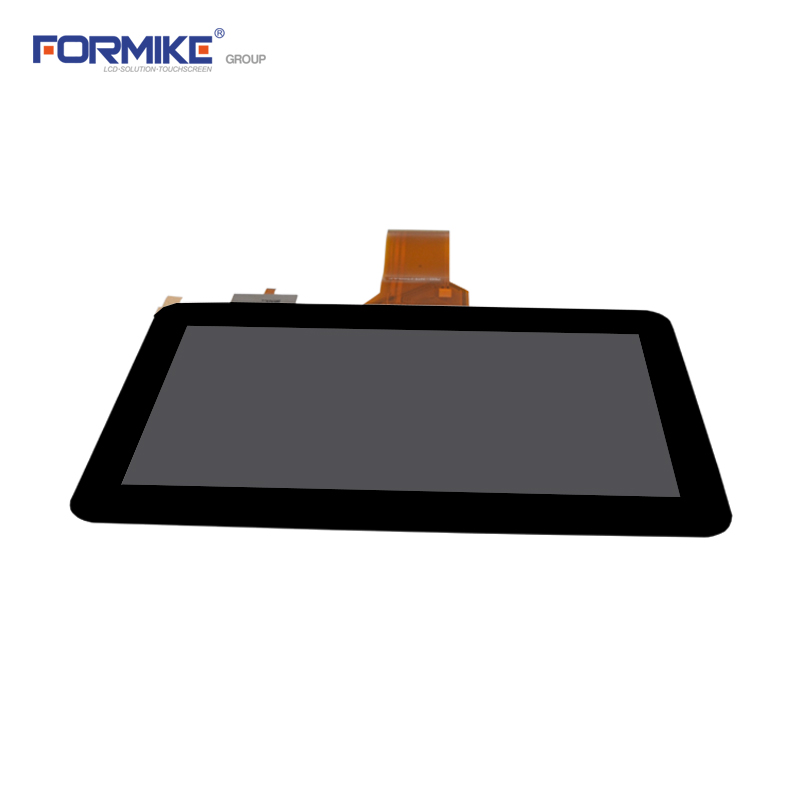

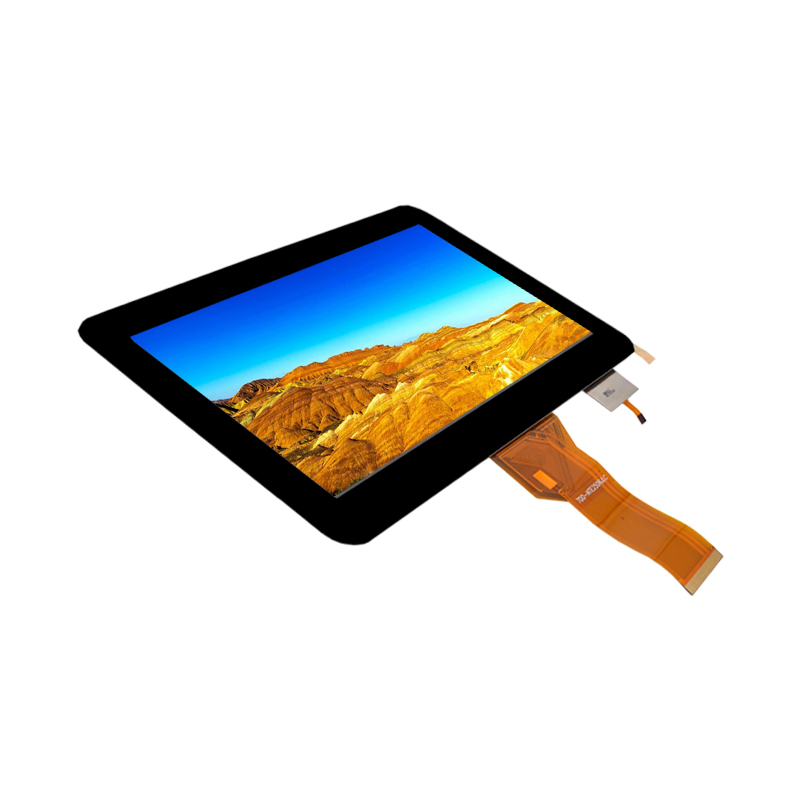

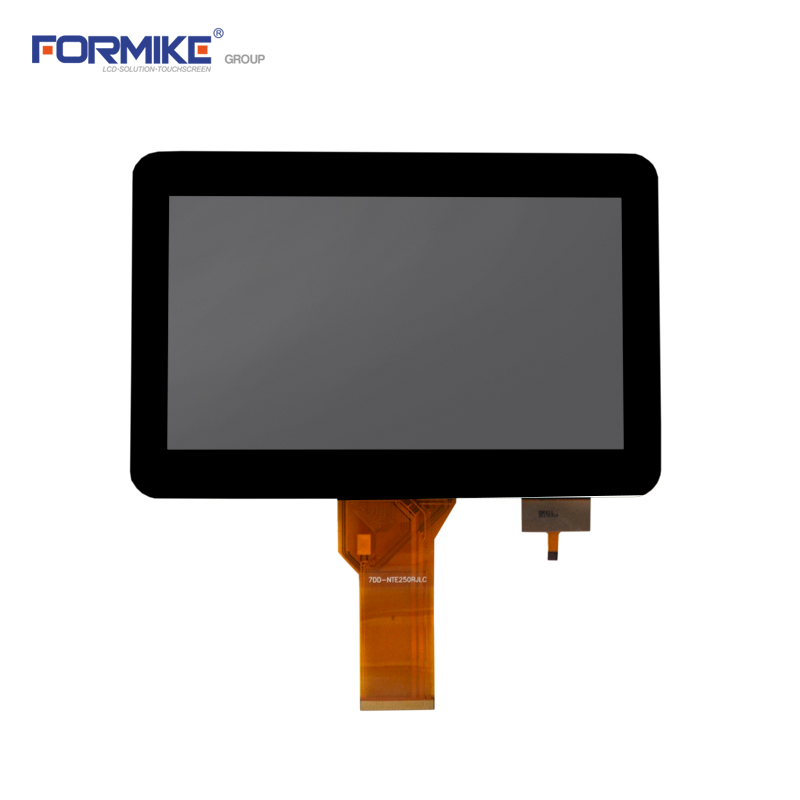

Supplier LCD Panel TFT 7 Inch LCD Touch Screen 800x480 With 24bit RGB Interface(KWH070KQ20-C05)
- LCD Name: Supplier LCD Panel TFT 7 Inch LCD Touch Screen 800x480 With 24bit RGB Interface
- LCD size: 7 inch LCD Display
- Display mode: Transmissive LCD
- Touch Panel: With Capacitive touch panel
- Resolution: 800x480
- Outline dimensions: 179.40 x 117.40x 7.37 mm
- Active area: 154.08x85.92mm
- Viewing Direction: 6 O' clock
- Brightness: 400 cd/m2
- Contrast Ratio: 500: 1
- Supply Voltage: 9.6V
- Supply Current: 180mA
- Power dissipation: 1728mW
- Interface: 24 bit RGB Interface

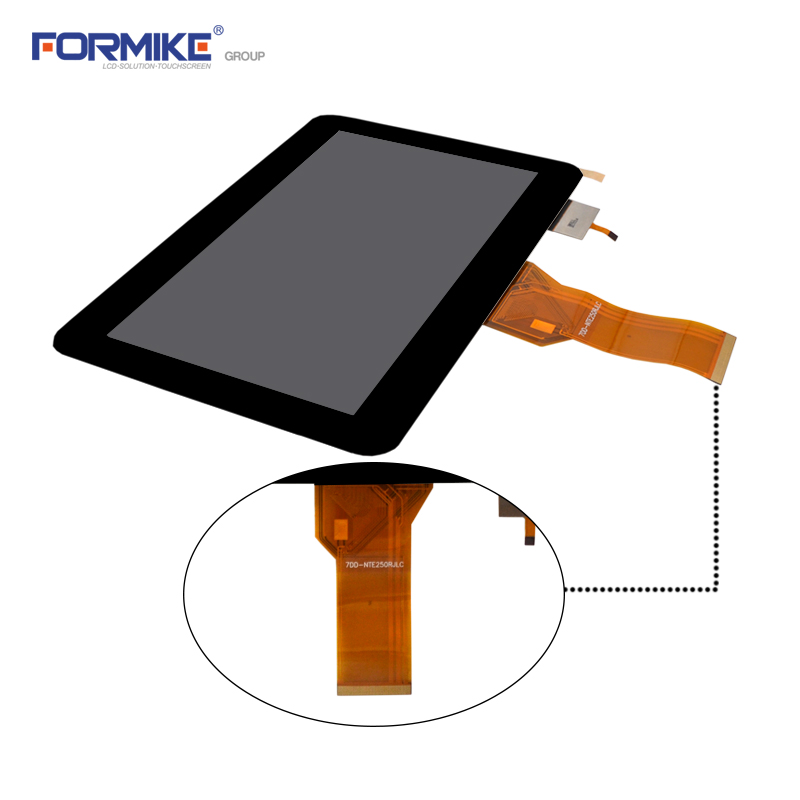

- Connector: 50 pin FPC
- Backlight: 27 LEDs
Supplier LCD Panel TFT 7 Inch LCD Touch Screen 800x480 With 24bit RGB Interface
| Product Name | Supplier LCD Panel TFT 7 Inch LCD Touch Screen 800x480 With 24bit RGB Interface |
| LCD Size | 7 Inch TFT LCD Display Module |
| Display Mode | Transmissive |
| Resolution | 800x480 |
| Outline Dimension (mm) | 179.40x117.40x7.37 |
| Active Area (mm) | 154.08x85.92 |
| Dot pitch (mm) | 0.1926x0.1790 |
| Viewing Direction | 6 O'clock |
| Interface | RGB Interface, 50 Pin |
| Color Depth | 16M |
| Brightness (Cd/m2) | 400 |
| Contrast Ratio | 500:1 |
| Backlight | 27 White LED |
|
Backlight Supply (Current/Voltage) |
180mA 9.6V |
| Touch Screen | With Capacitive Touch Screen Panel |
* KWH070KQ20-C05 is a Transmissive type color active matrix liquid crystal display (LCD).

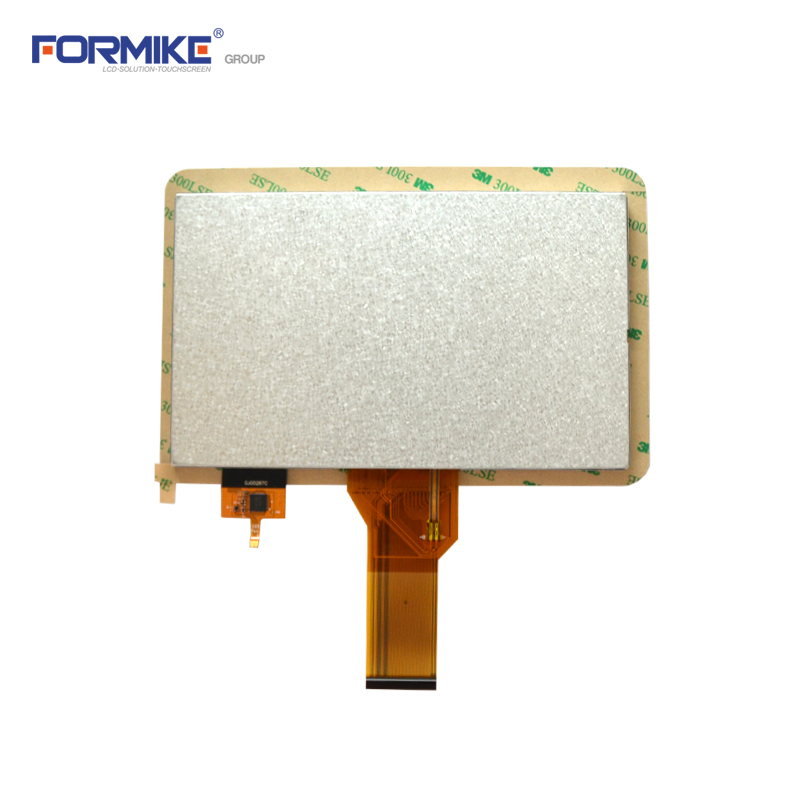

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.
* It is 800x480 resolution TFT LCD module.
* Backlight with different brightness options from 250 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
