128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface (KWH018ST04-F01 V.1)128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface (KWH018ST04-F01 V.1)128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface (KWH018ST04-F01 V.1)128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface (KWH018ST04-F01 V.1)128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface (KWH018ST04-F01 V.1)128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface (KWH018ST04-F01 V.1)128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface (KWH018ST04-F01 V.1)

128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface (KWH018ST04-F01 V.1)

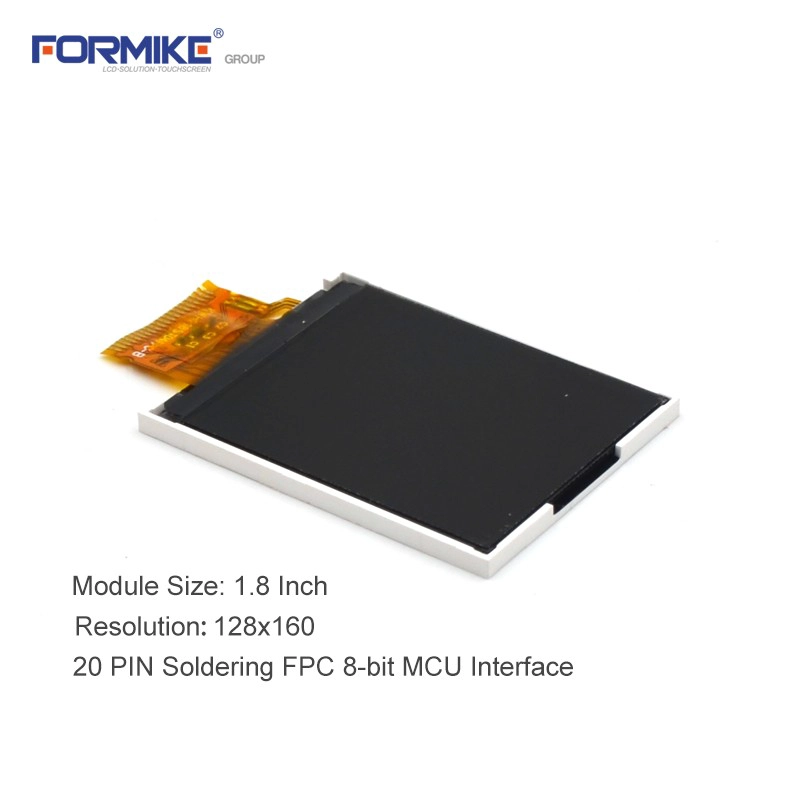

  • Product Name:128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface
  • Model:KWH018ST04-F01 V.1
  • Type:1.8 Inch LCD Module
  • Resolution:128x160
  • Color Depth:65K/262K
  • Brightness:150cd/m2
  • Contrast Ratio:500:1

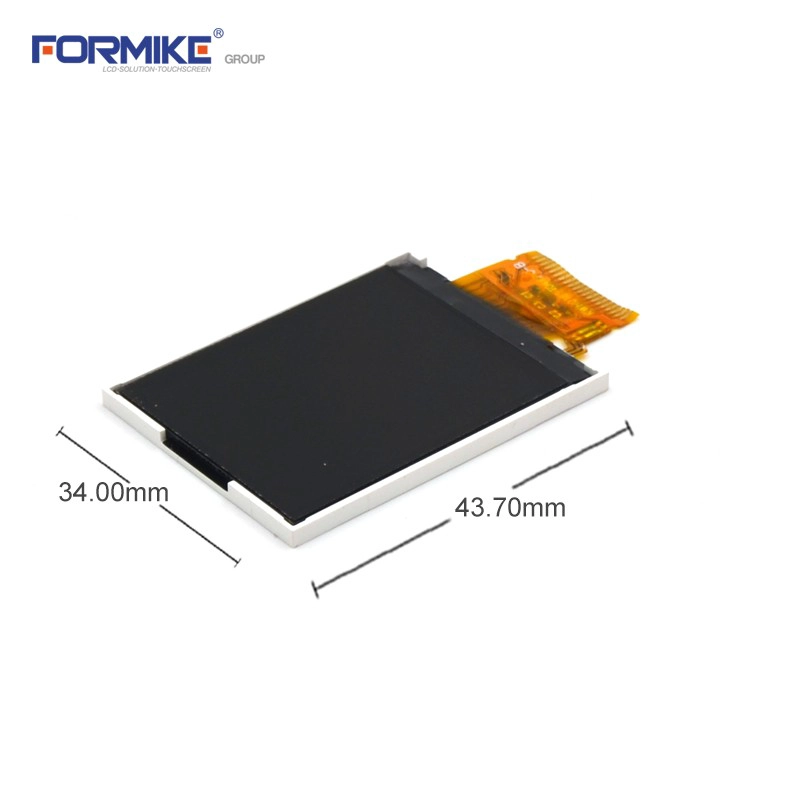

  • Outline Dimension:34.00x 43.70 x 2.40mm
  • Active Area:28.03x35.04mm
  • Viewing Direction:12 O'Clock
  • Interface:MCU, 20 Pin Soldering
  • Backlight Supply (Current/Voltage):30mA 3.2V
  • Response Time:8ms
  • Backlight:2 LED
  • Operating Temperature:-20℃~70℃

128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface

128x160 LCD Screen

LCD Name 128x160 LCD Screen 1.8 Inch TFT LCD Display With 20 Pin MCU Interface

Type

 1.8 Inch LCD Module

Resolution

128(RGB)X160 pixel

Response Time(ms)

8

Contrast Ratio

500:1

Outline Dimension

34.00x 43.70 x 2.40mm

Active Area(HxV mm)

28.03x35.04mm

Viewing Direction

12 O'Clock

Interface

8 bit MCU, 20 Pin

Backlight

2 LED

Brightness

150cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

30mA, 3.3V

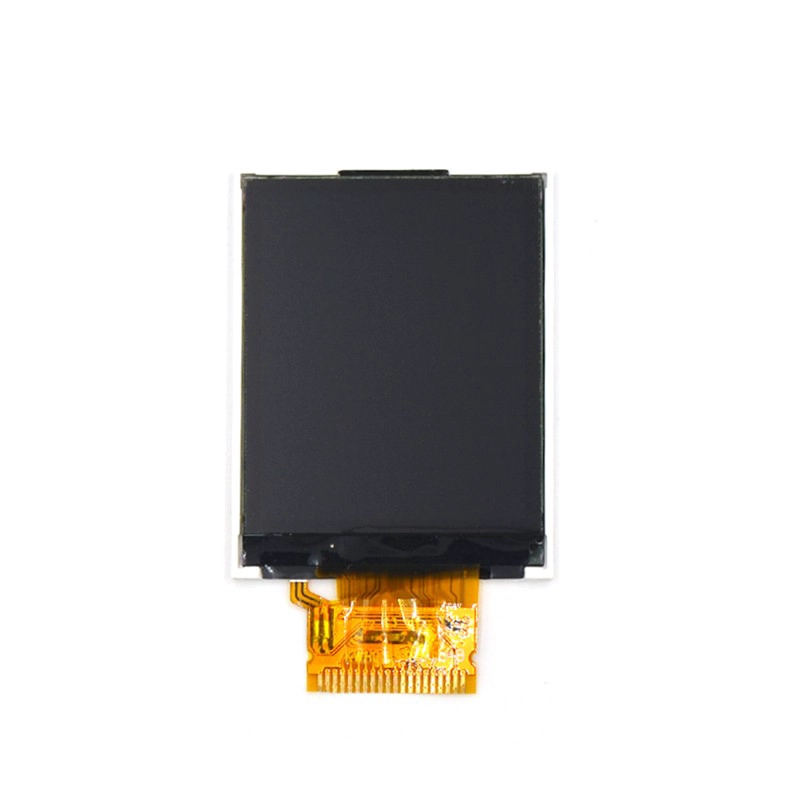

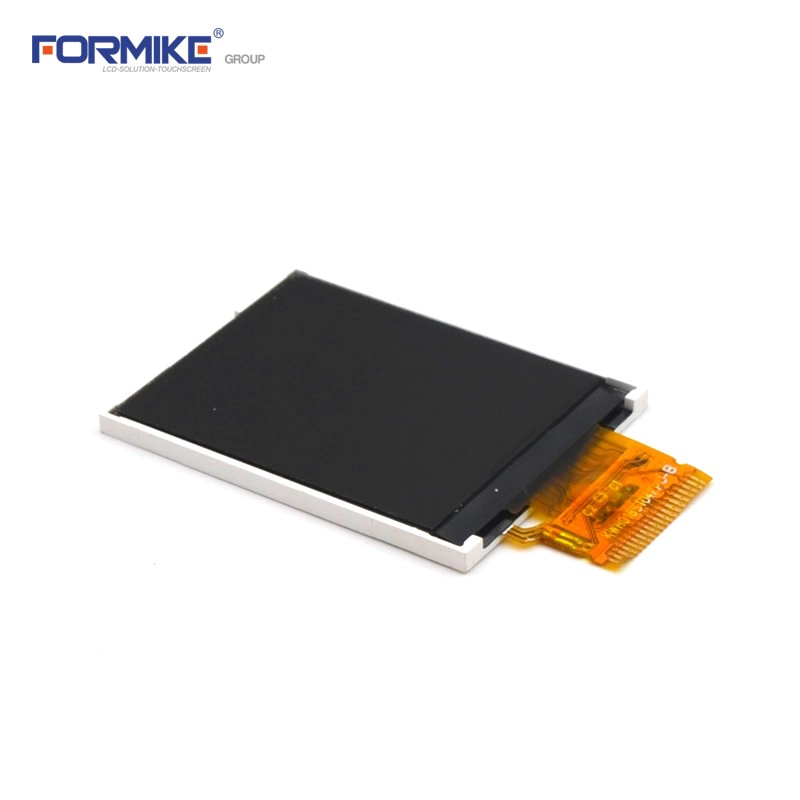

* KWH018ST04-F01 V.1 is a small Transmissive type color active matrix liquid crystal display (LCD).

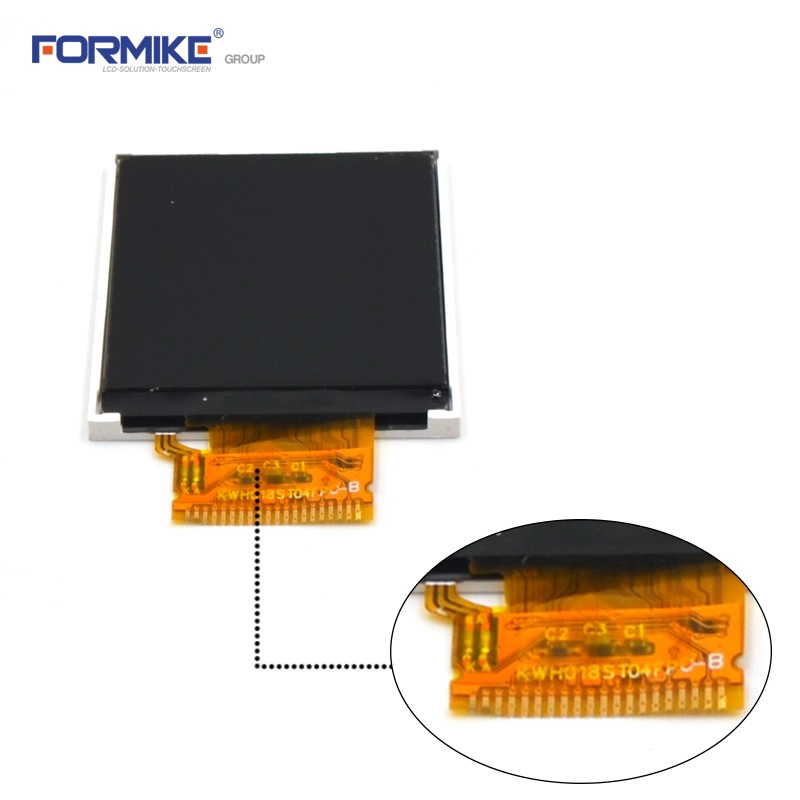

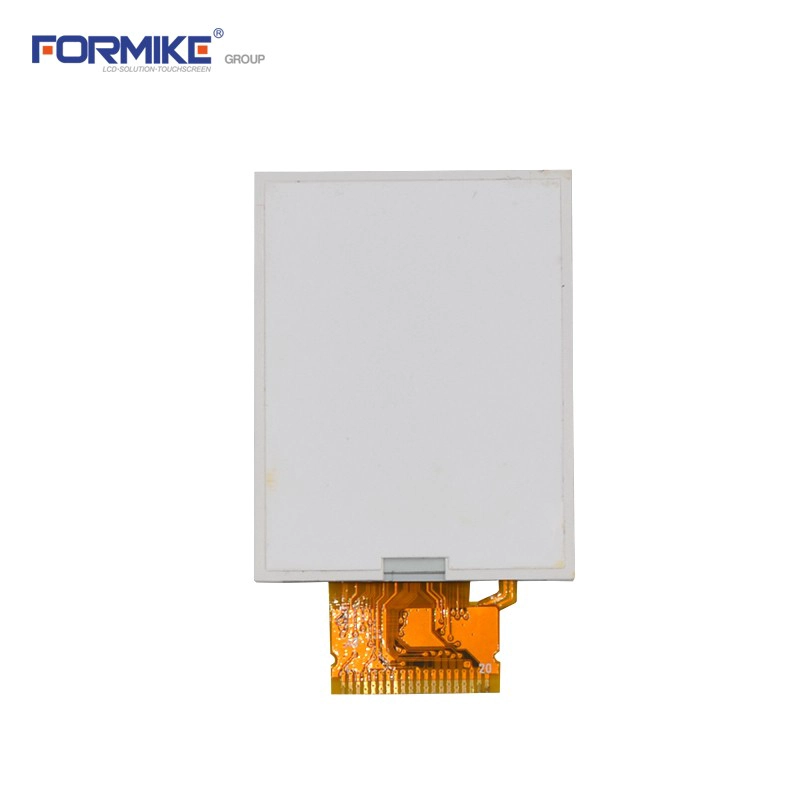

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 128x160 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

1.8 Inch TFT LCD Display with 128x160 resolution, which support 20 pin MCU interface, is widely used for Mobile phone, MP3 PMP, Handheld devices, Wearable devices, medical equipment and other small size LCD solution.

Formike Group provide professional technical support, including initialization code, LCD display recommendation, LCD develop and so on. If you have any question, please contact us any time. Welcome to start business cooperation with you.
