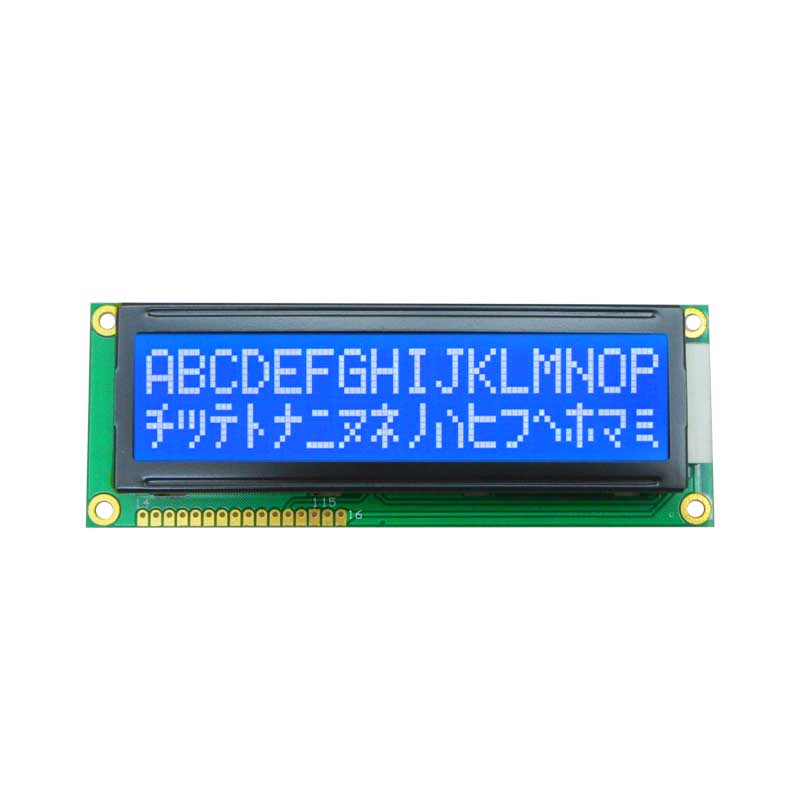

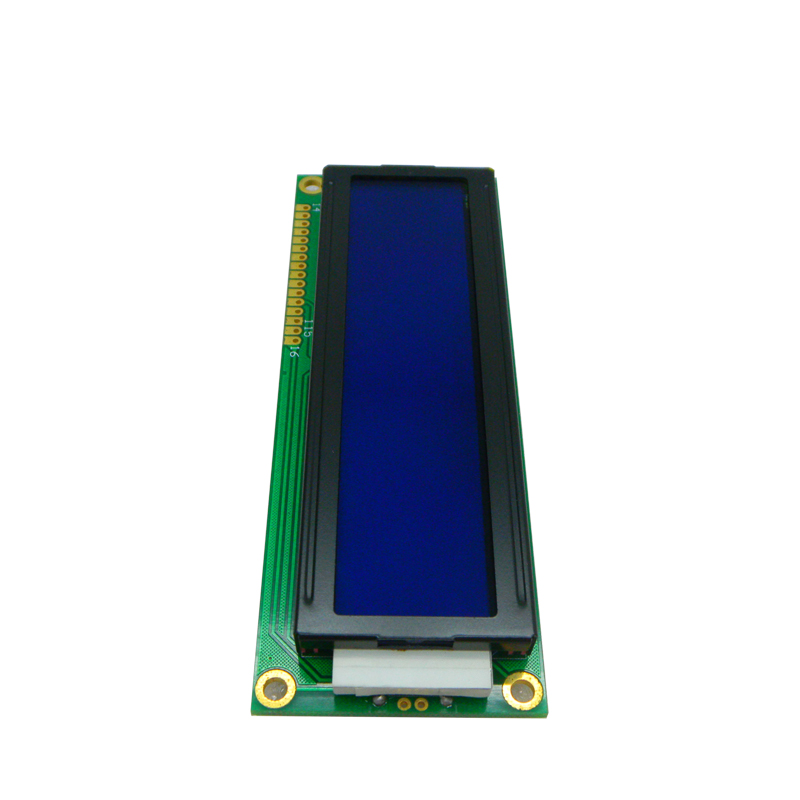

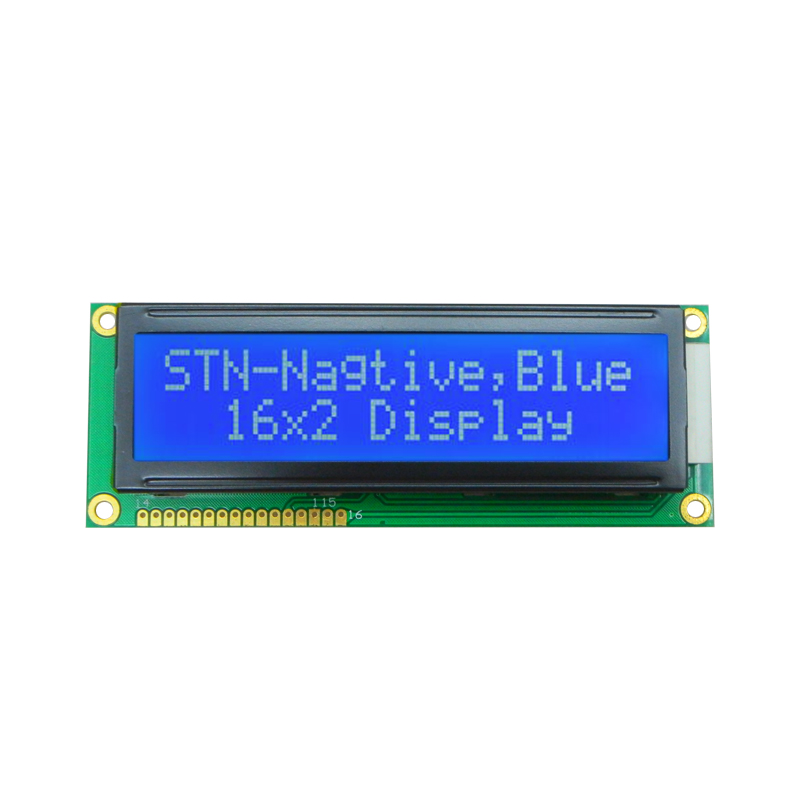

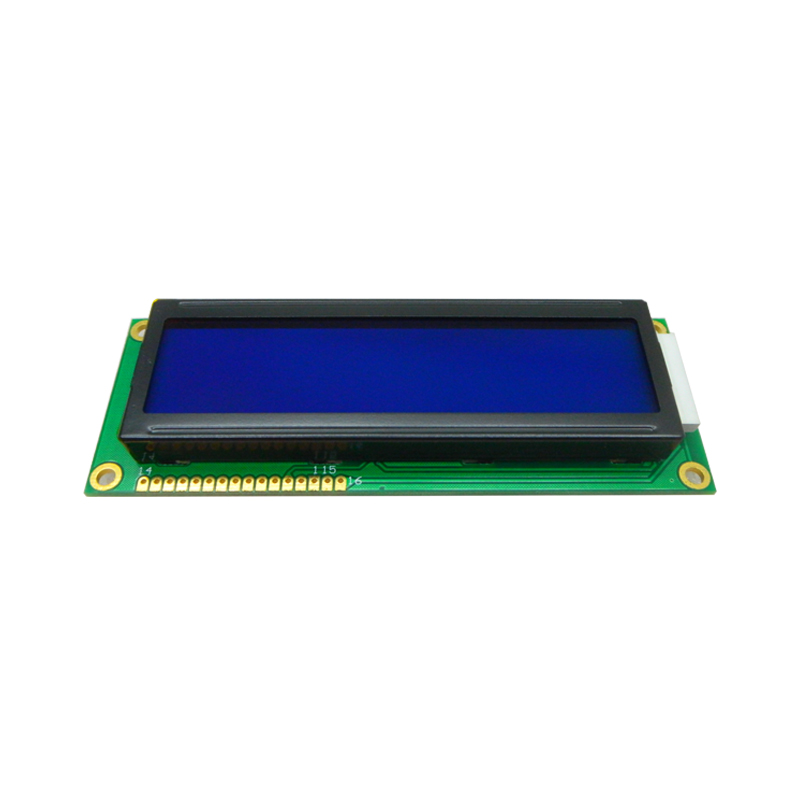

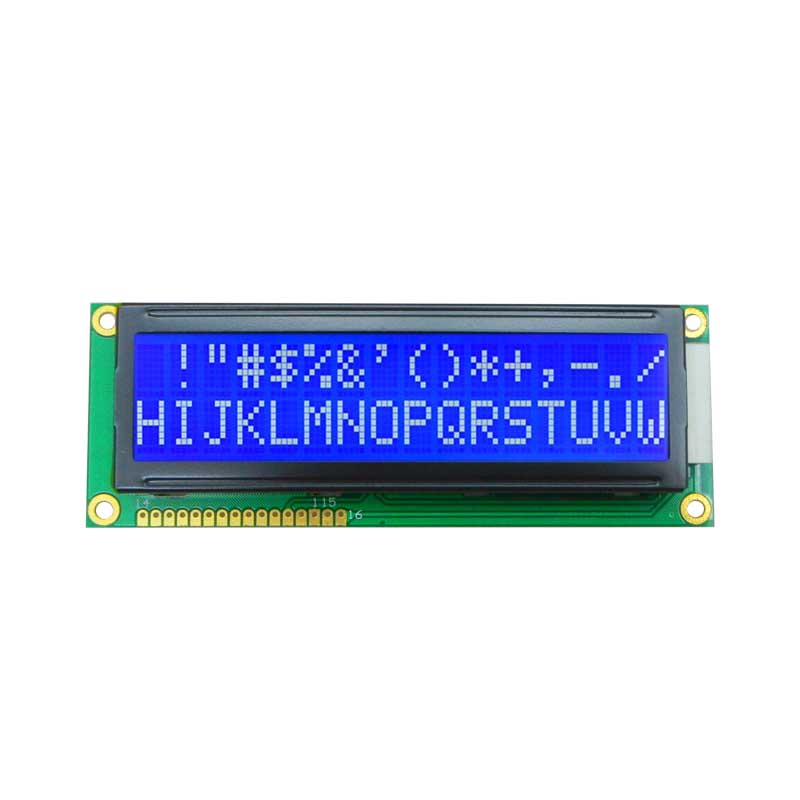

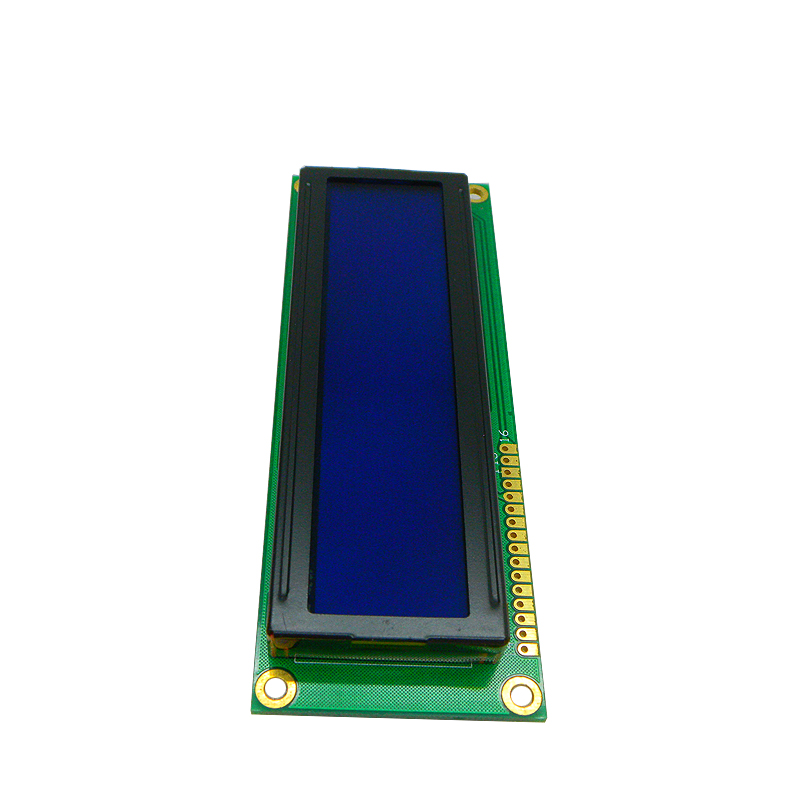

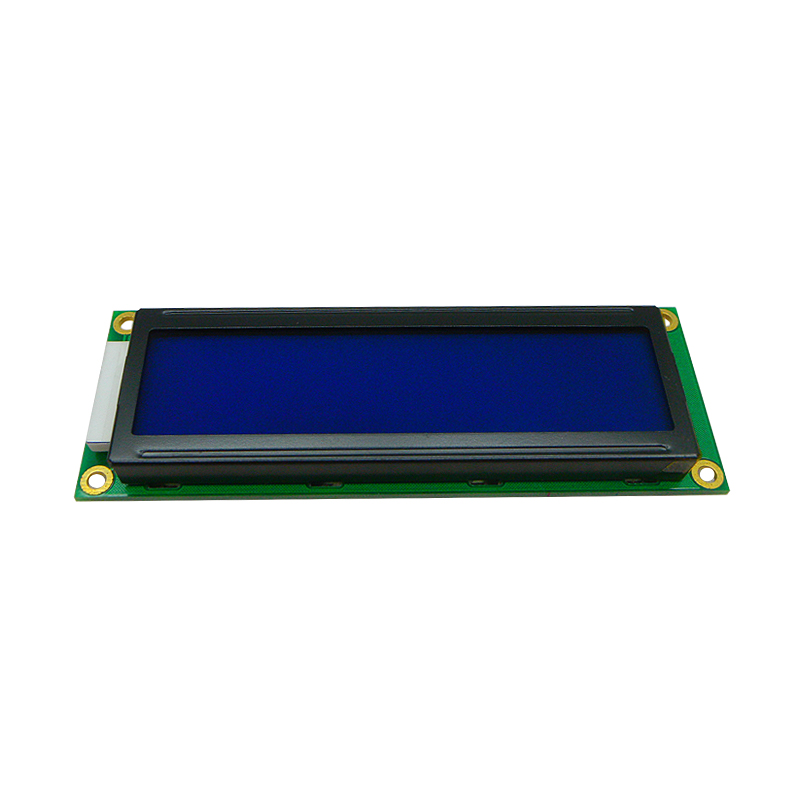

1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)

1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module(WC1602M8SGW6B)

  • LCD Name: 1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module
  • Display Format: 16*2
  • Display Mode: STN, Transmissive, Negative
  • LCD Color:Display dot : White; Background: Blue
  • Display Type: Character COB
  • Outline Dimension: 122.0(W) x44.0(H) x 13.5(T) mm
  • Viewing Area: 99.0MIN(W) x24.0MIN(H)mm
  • Drive IC: ST7066U-0A
  • Pin No.: 16 Pin
  • Viewing Direction: 6 O’clock
  • Interface Input Data: MPU interface
  • Backlight: White
  • Driving Method: 1/16 Duty, 1/5 Bias
  • Operating Temp.: 0℃~+50℃
  • Storage Temp.: -20℃~+70℃

1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module

 LCD Name 1602 Blue Display Small Monochrome LCD Panel 16x2 Character Display Module

 Display Format

16character*2 line

 Display Mode

STN, Transmissive, Negative

LCD Color

Display dot : White
Background: Blue

 Display Type

 Character COB

 Outline Dimension

122.0(W) x44.0(H) x 13.5(T) mm

Viewing Area

99.0MIN(W) x24.0MIN(H)mm

 Drive IC ST7066U-0A  Pin No. 16 Pin

 Viewing Direction

 6 O’clock

Interface Input Data

MPU

 Backlight

White

 Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

 0℃~+50℃

 Storage Temp.

-20℃~+70℃

16x2 character display module

1602 blue display

small monochrome lcd panel 2x16 1602 16x2 lcm character display lcd 2x16
