240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)

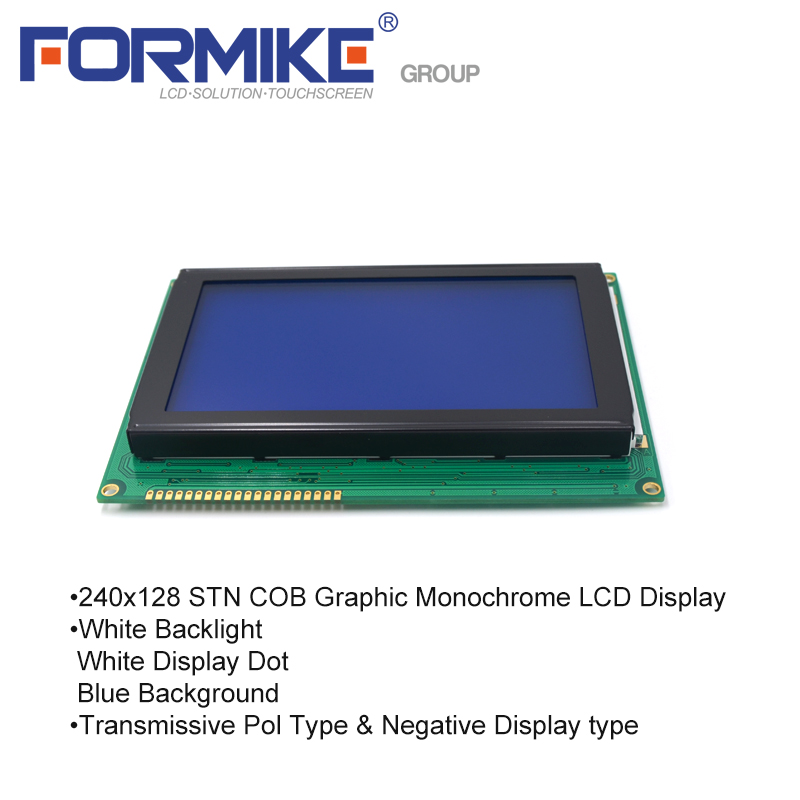

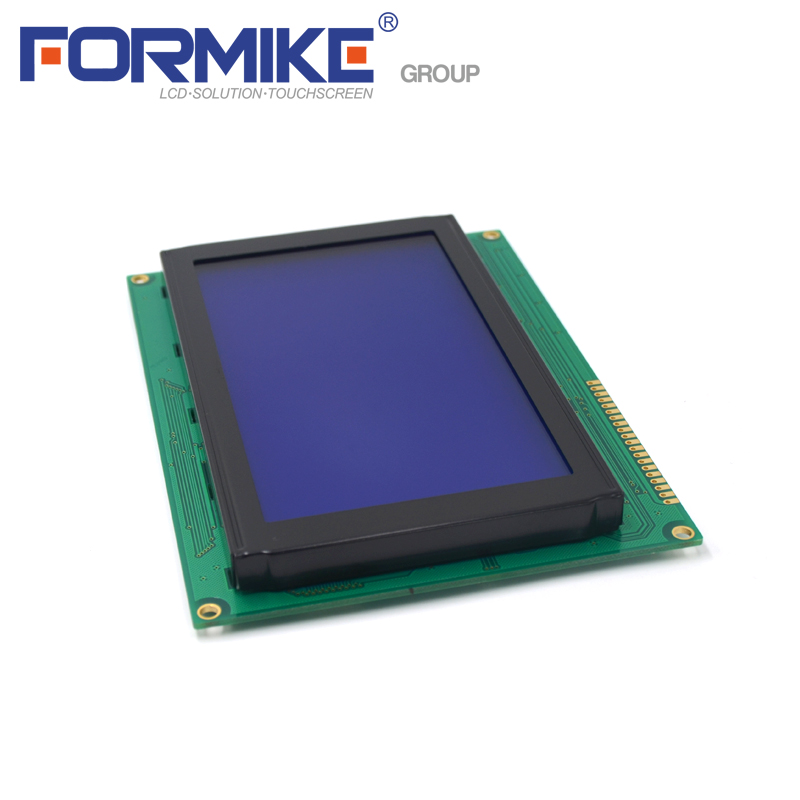

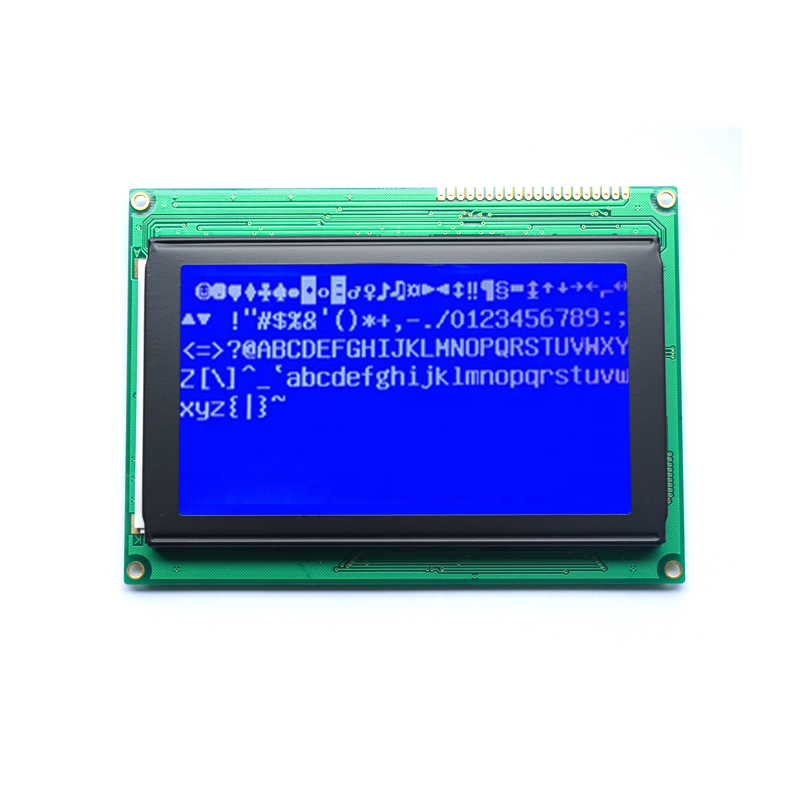

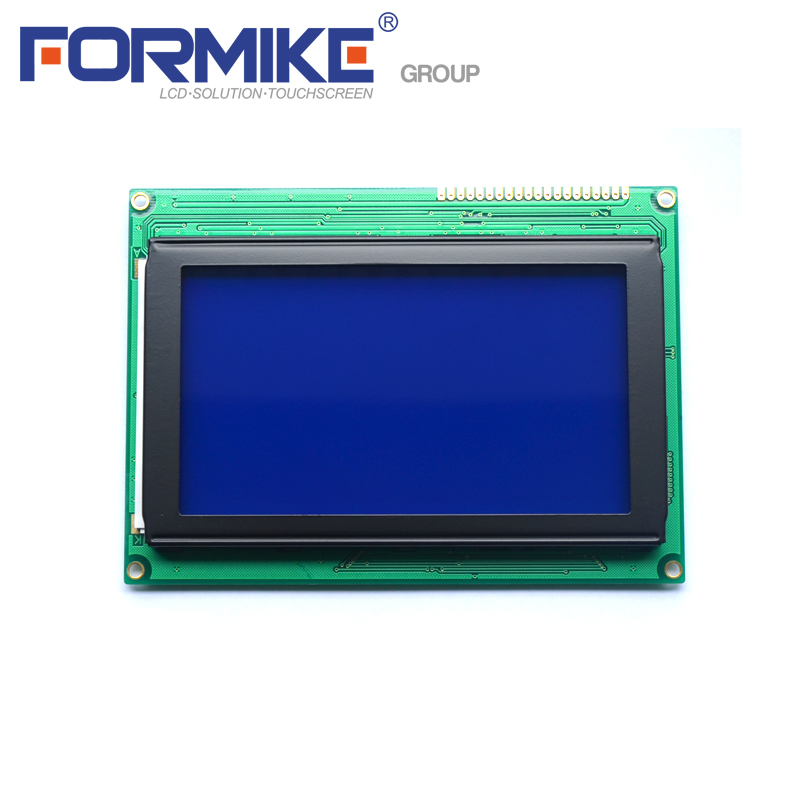

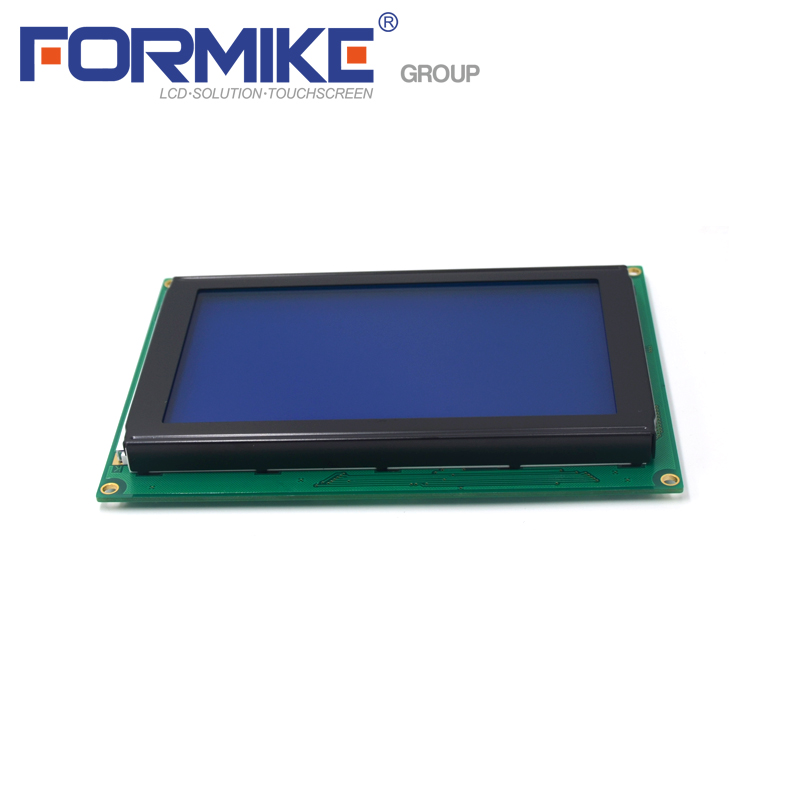

240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module(WG2412Y4SGW6B-E)

  • LCD Name: 240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module
  • Display Format: 240x128
  • Display Mode: STN, Transmissive, Negative
  • LCD Color: Display dot : White; Background:  Blue
  • Display Type: Graphic COB

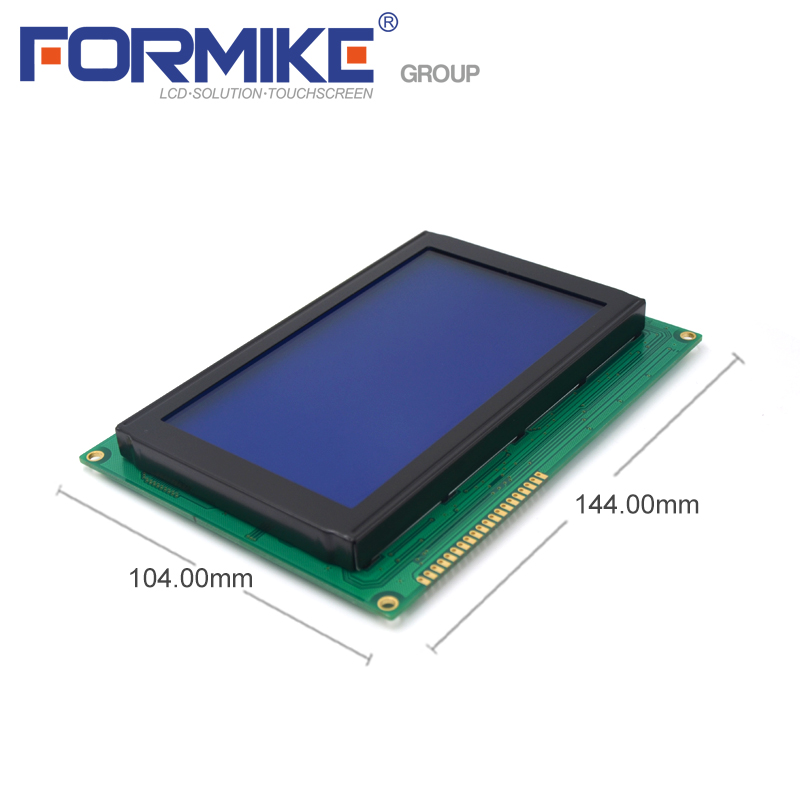

  • Outline Dimension: 144.0(W) x104.0(H) x 15.0 mm
  • Viewing Area: 114.0MIN(W) x64.0MIN(H)mm
  • Drive IC: SAP1024B
  • Viewing Direction: 6 O’clock
  • Backlight: White
  • Driving Method: 1/128 Duty, 1/12 Bias
  • Operating Temp.: -20℃~+70℃
  • Storage Temp.: -30℃~+80℃

240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module

240 x 128 LCD

LCD Name

240 x 128 LCD Display Graphic Dot Matrix 240x128 LCD Module

Display Format

240*128

Display Mode

STN,Transmissive, Negative

Outline Dimension

144*104*17 mm

Active Area

114*64 mm mm

Viewing Direction

 6H

DUTY/BIAS

1/128, 1/12

Type

COG

Driver IC

SAP1024B

Working Temp.

-20℃~+70℃

Storage Temp.

-30℃~+80℃



* WG2412Y4SGW6B-E is a Monochrome color COG type STN negative,Transmissive LCD.

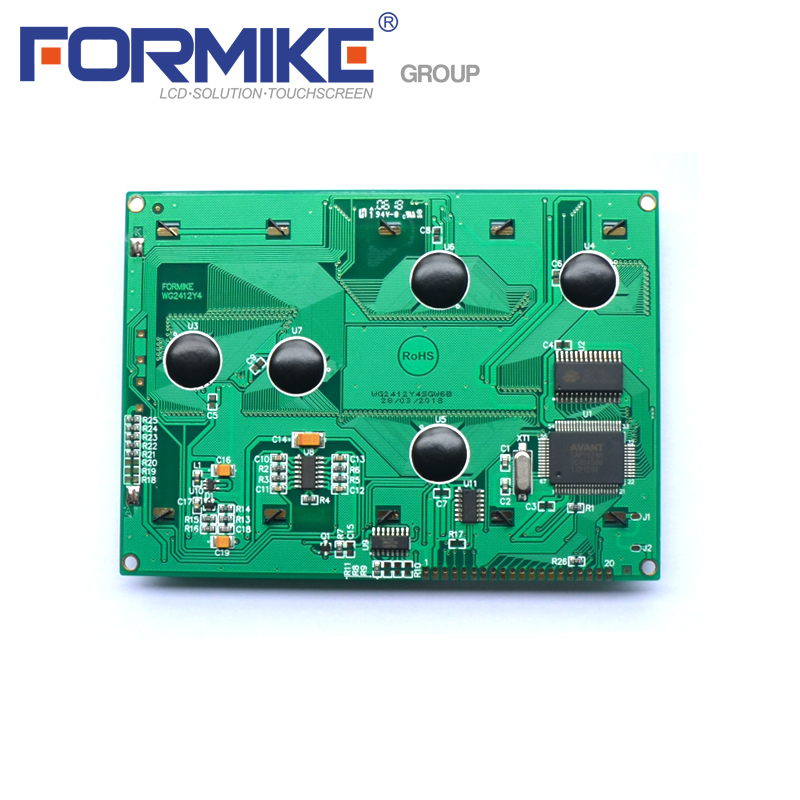

* It is composed of a monochrome LCD panel, driver IC, FPC, and backlight.

*It is 240x128 dots monochrome character DFSTN lcd monitor.

* Backlight with white,blue,yellow,red color

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

Display Graphic Dot Matrix

240x128 graphic lcd 240x128 STN Display 240x128 pixels graphic lcd
