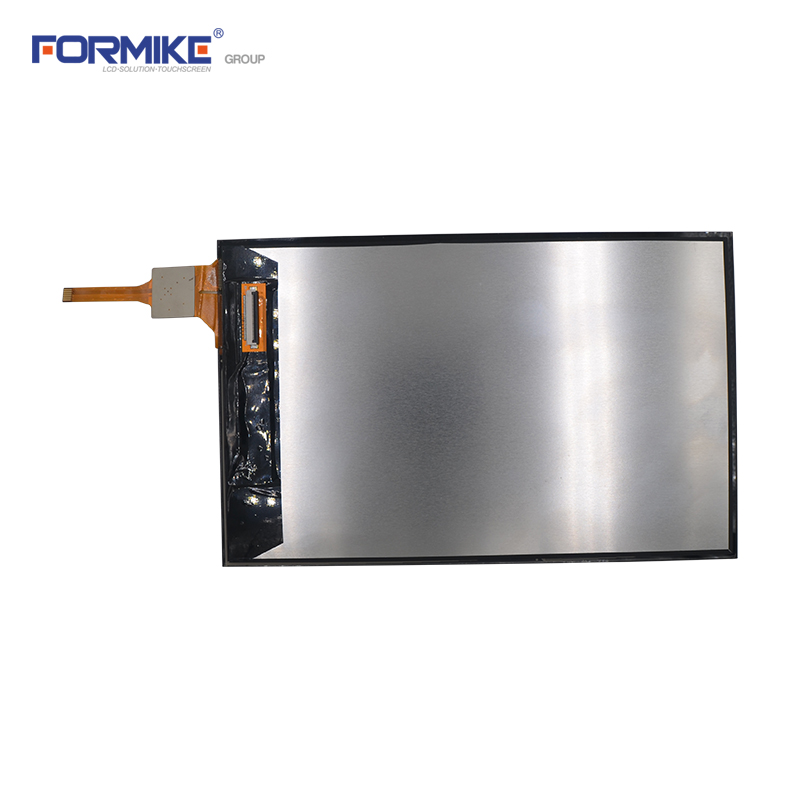

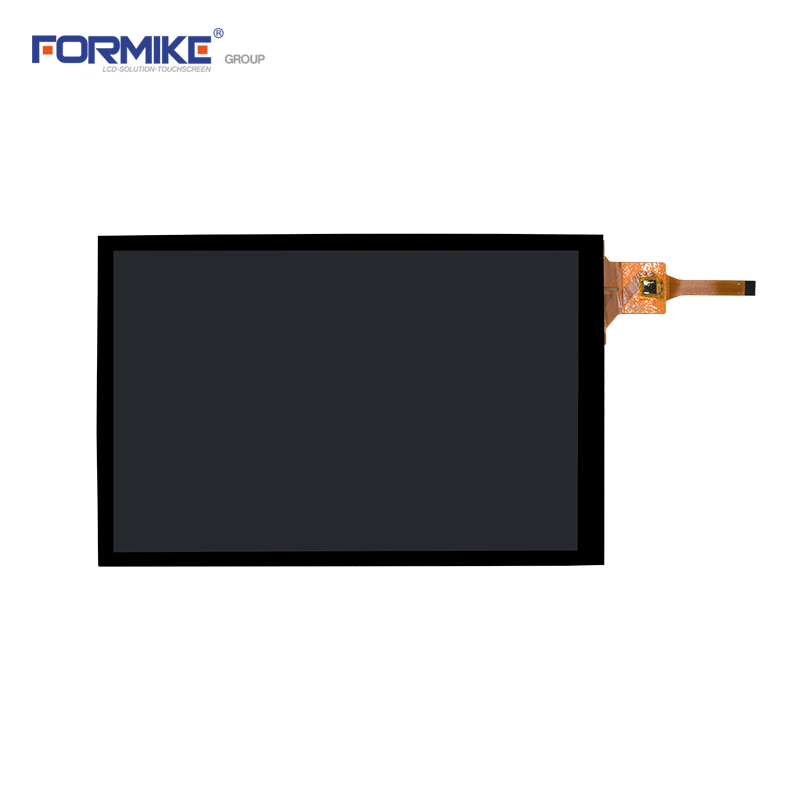

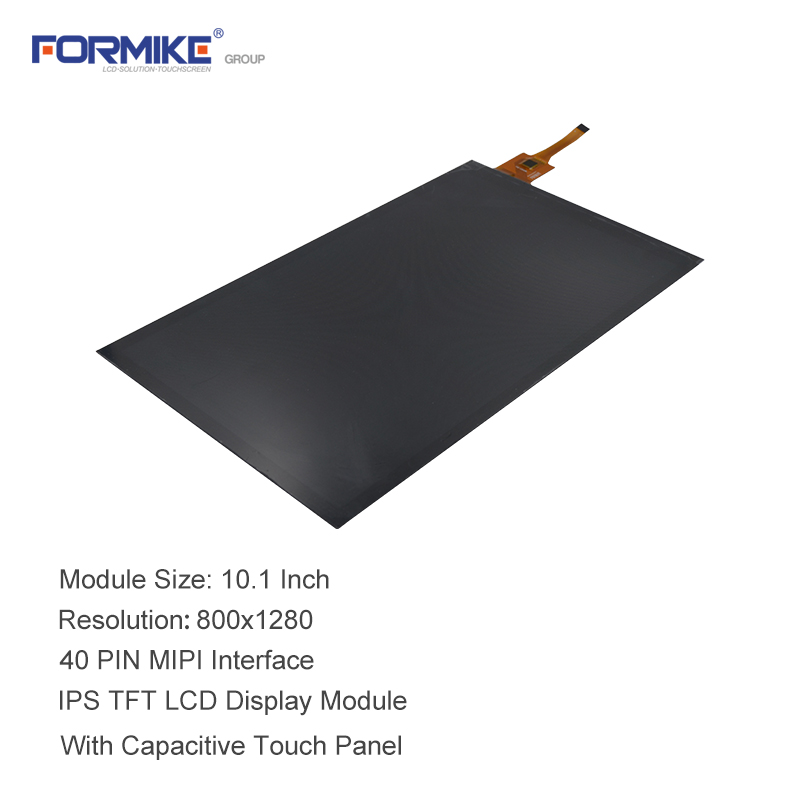

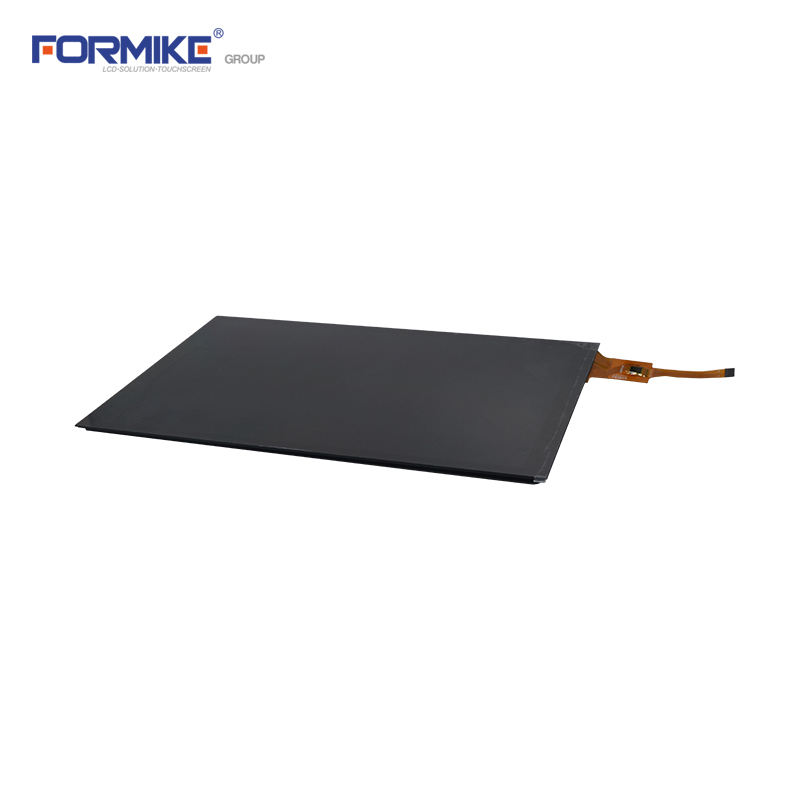

800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules (KWH101KQ14-C01)800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules (KWH101KQ14-C01)800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules (KWH101KQ14-C01)800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules (KWH101KQ14-C01)800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules (KWH101KQ14-C01)800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules (KWH101KQ14-C01)

800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules (KWH101KQ14-C01)

  • LCD Size:800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules
  • Resolution:800x1280 pixel
  • Color Depth:16M
  • Contrast Ratio:800:1
  • Outline Dimension:149.36x 235.58 x 4.4mm
  • Active Area(HxV mm):135.36x216.58mm
  • Viewing Direction:ALL
  • Interface:MIPI, 40 Pin
  • Backlight:27 White LED
  • Brightness:220cd/m2
  • Backlight Supply Current/Voltage:180mA  9.6V

800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules

10.1inch tft

Product Name 800*1280 Capacitive Touch Panel Display 10.1inch TFT IPS MIPI LCD Modules
LCD Size 10.1 Inch TFT LCD Display Module
Display Mode IPS
Resolution 800x1280
Outline Dimension (mm) 149.36x235.58x4.40
Active Area (mm) 135.36x216.58
Dot pitch (mm) 0.1692x0.1692
Viewing Direction All
Interface MIPI Interface, 40 Pin
Driver IC ILI9881C
Brightness (Cd/m2) 220
Contrast Ratio 800:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

180mA 9.6V
Touch Screen With Capacitive Touch Screen Panel

* KWH101KQ14-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x1280 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

ips mipi lcd modules800*1280 capacitive touch panel display
