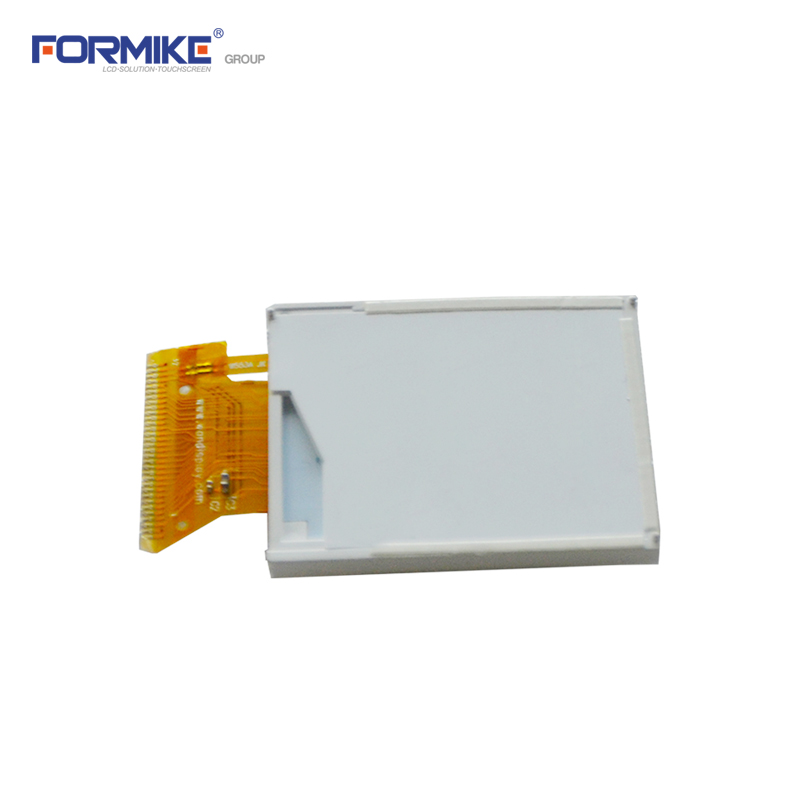

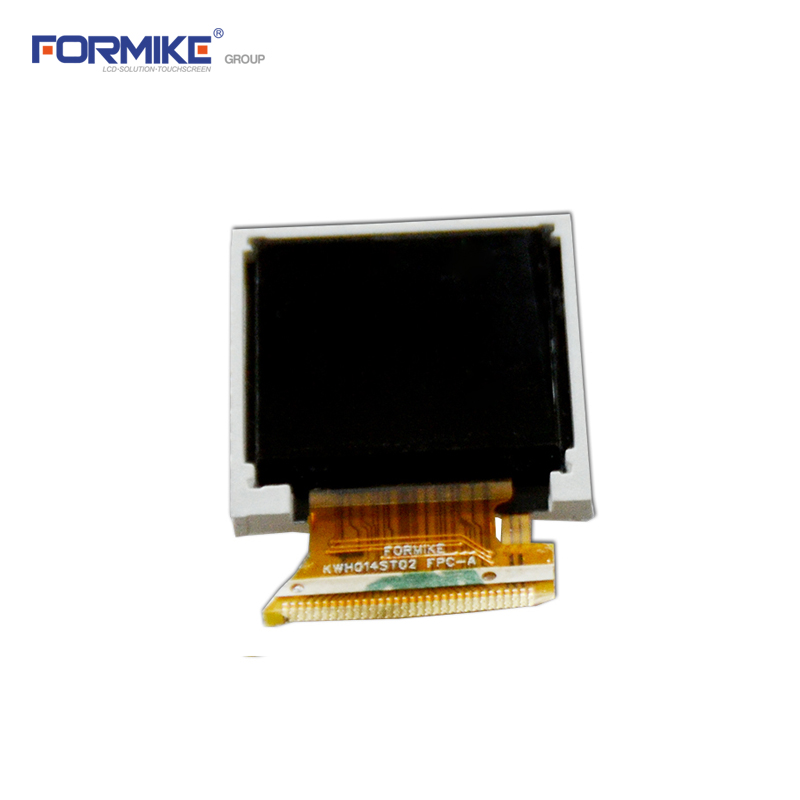

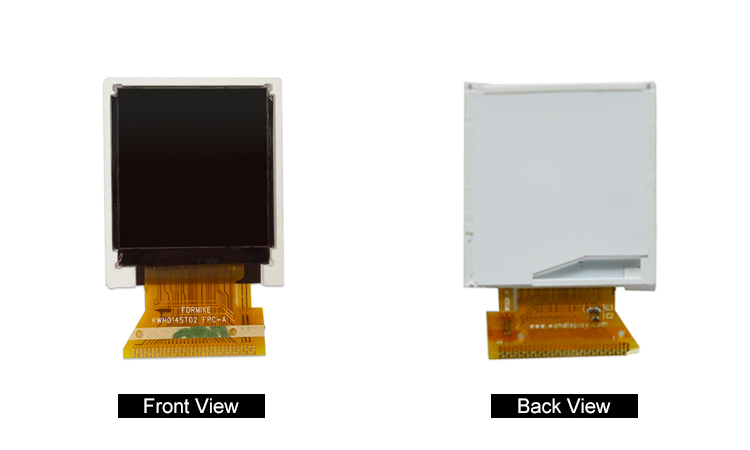

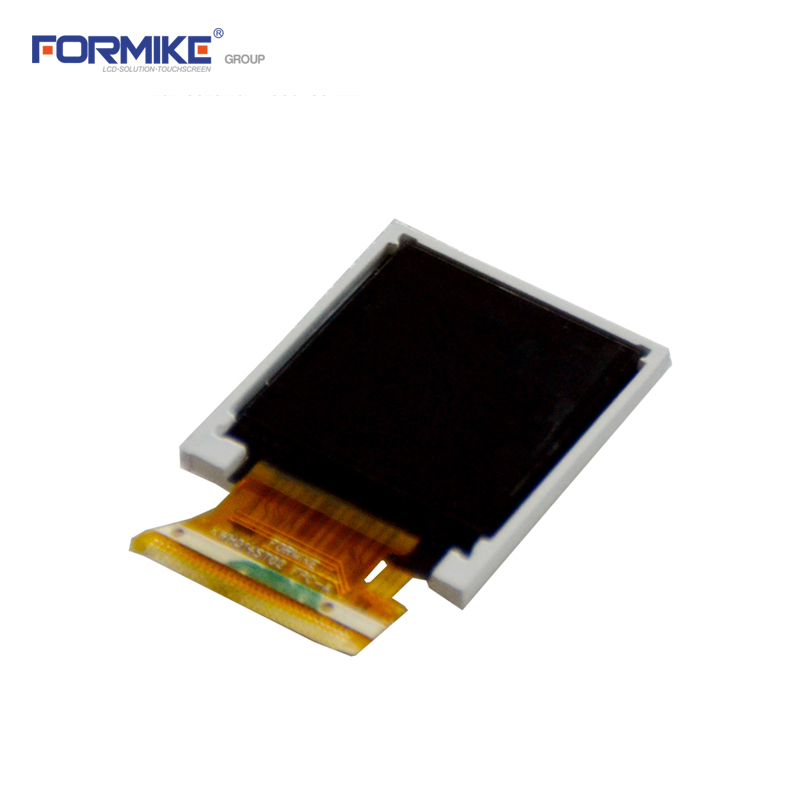

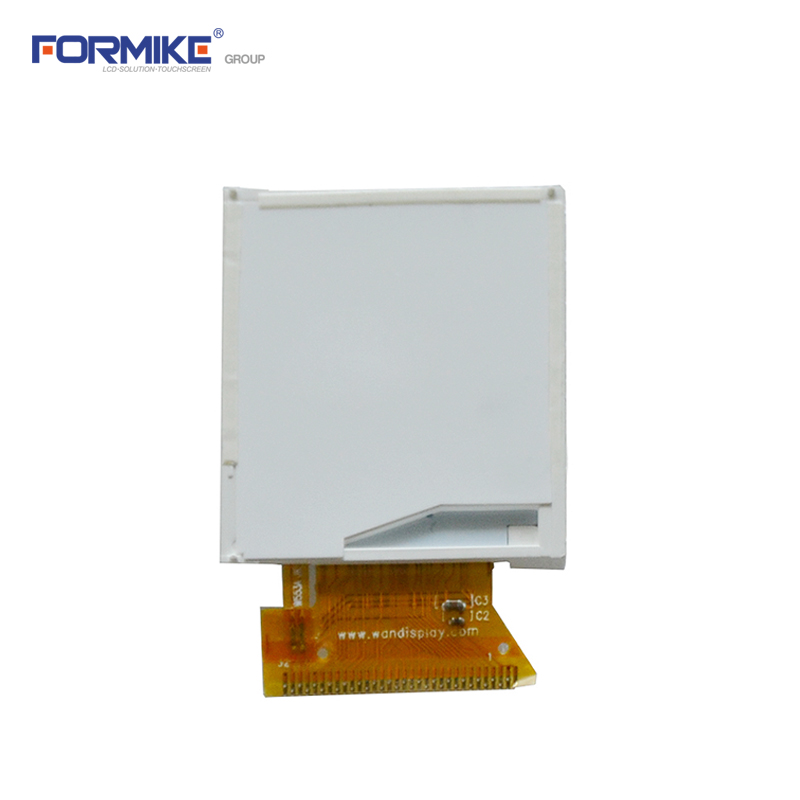

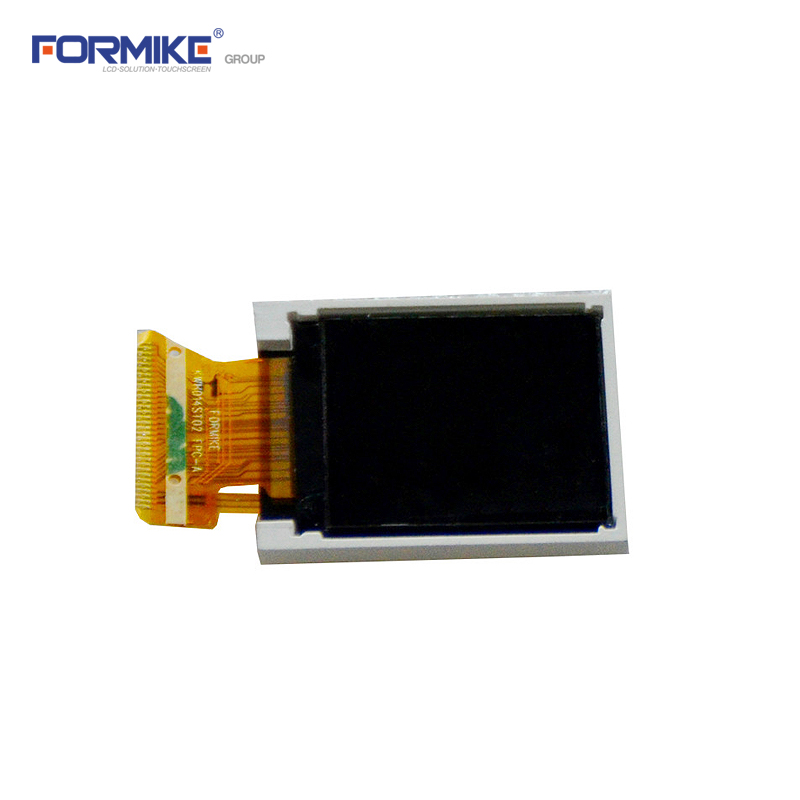

Square color LCD type 1.5 inch 128x128 TFT LCD Display (KWH014ST02-F01)

  • Main Specification:
  • 1.45 inch Color TFT LCD module
  • Resolution: 128 x 3 RGB x 128
  • Interface: CPU 8bits/SPI 4W/SPI 3W
  • Touch panel:Wihtout,support customized solution

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

FORMIKE

Model Number:

KWH014ST02-F01

Type:

TFT, TFT

LCD Size:

1.5 inch tft lcd module

LCD Outline:

32.36x38.00x2.60mm

Active Area:

26.035x26.035mm

Display Mode:

Normally White,Transmissive tft lcd

LCD Resolution:

128(RGB) x 128

LCD Interface:

CPU 8bits/SPI 4W/SPI 3W

Driver IC:

ST7715R

Brightness:

140 cd/m2

Certification:

RoHS
