40 Pin 3" Inch TFT Screen Mcu Interface 240 x 400 Tft Lcd Module (KWH030ST12-F01)40 Pin 3" Inch TFT Screen Mcu Interface 240 x 400 Tft Lcd Module (KWH030ST12-F01)40 Pin 3" Inch TFT Screen Mcu Interface 240 x 400 Tft Lcd Module (KWH030ST12-F01)40 Pin 3" Inch TFT Screen Mcu Interface 240 x 400 Tft Lcd Module (KWH030ST12-F01)40 Pin 3" Inch TFT Screen Mcu Interface 240 x 400 Tft Lcd Module (KWH030ST12-F01)40 Pin 3" Inch TFT Screen Mcu Interface 240 x 400 Tft Lcd Module (KWH030ST12-F01)

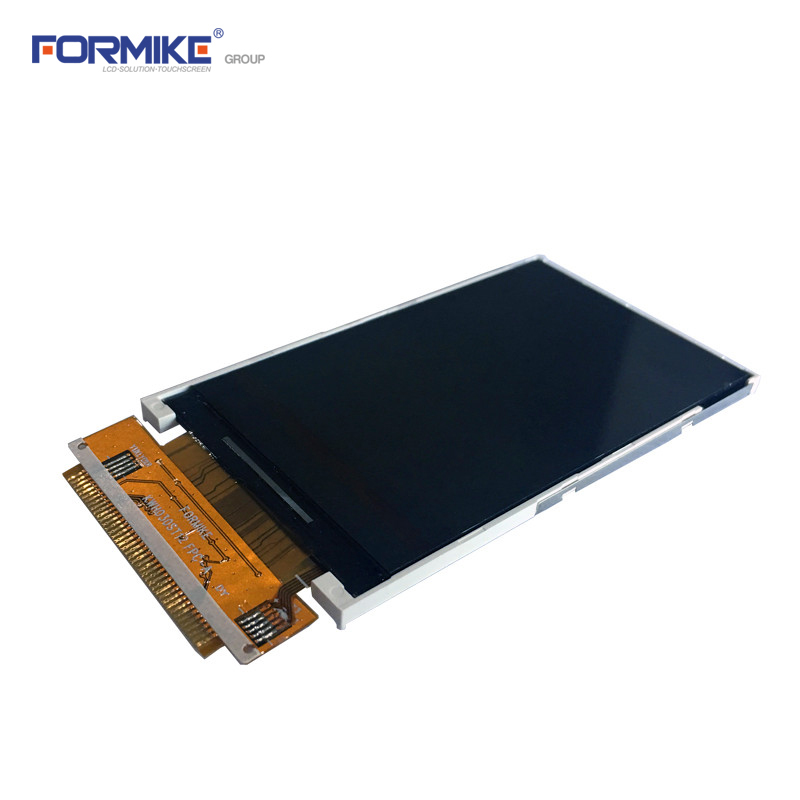

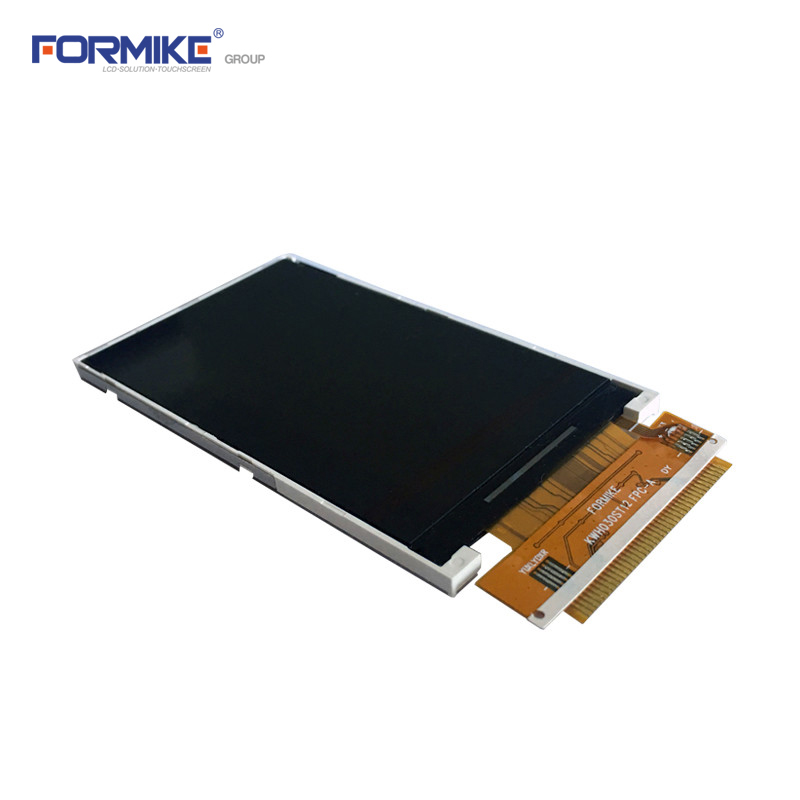

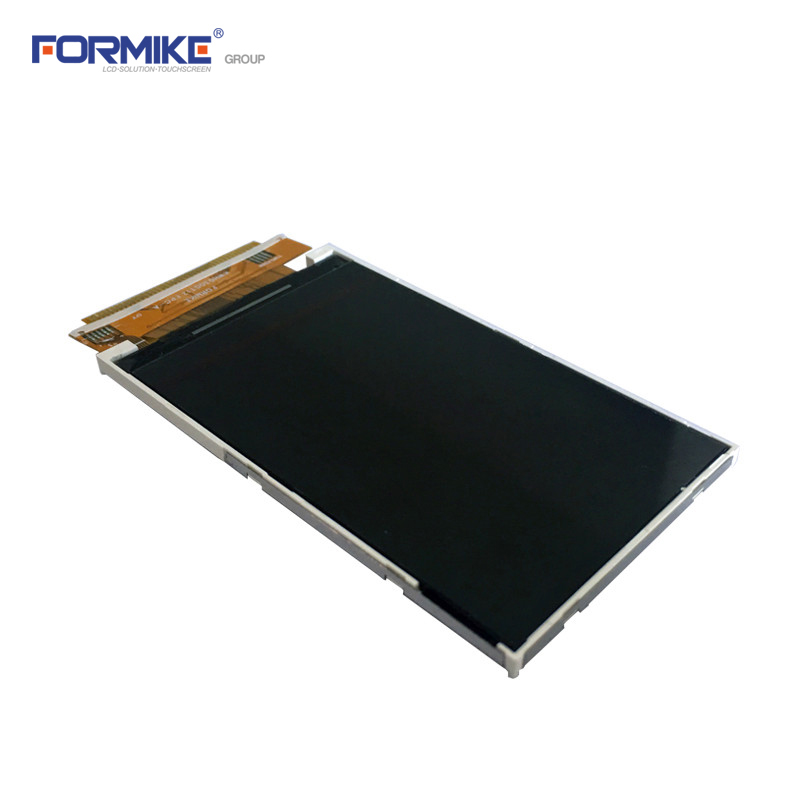

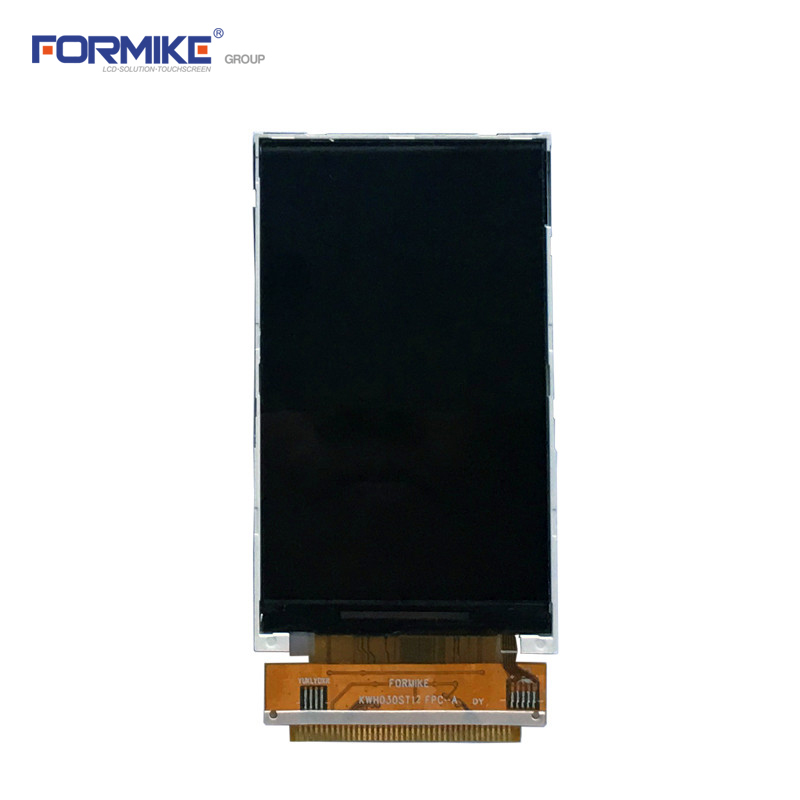

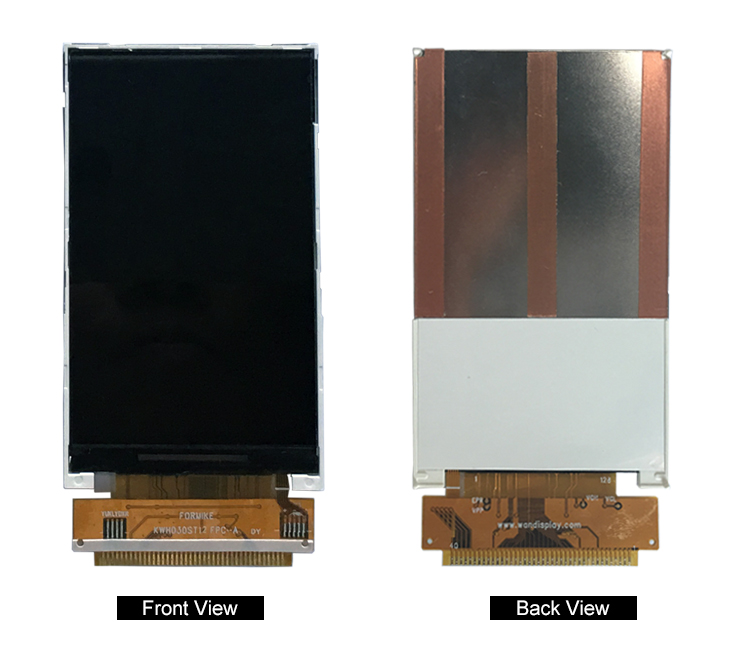

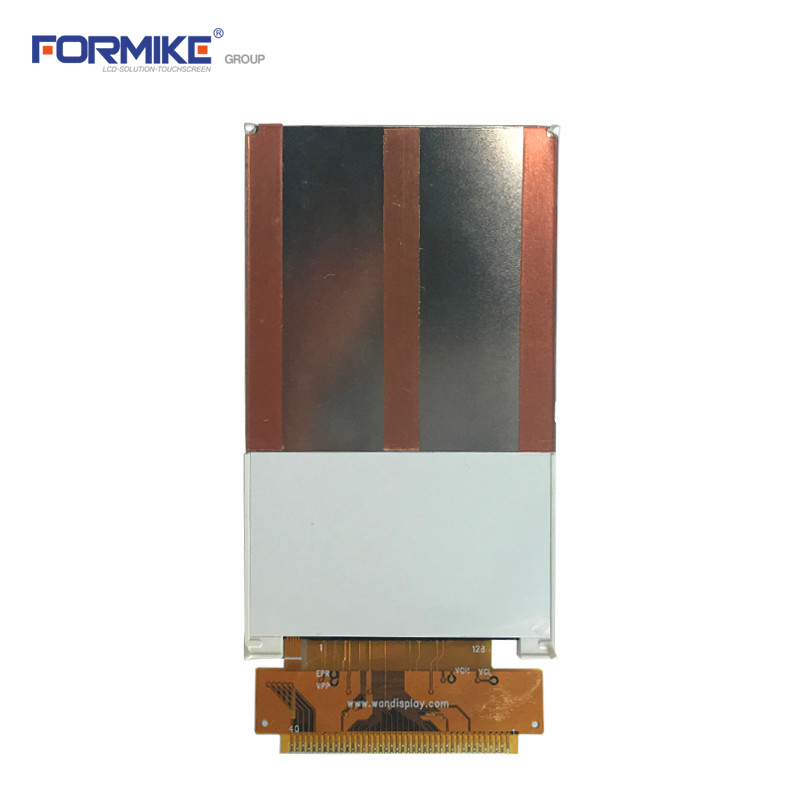

40 Pin 3" Inch TFT Screen Mcu Interface 240 x 400 Tft Lcd Module (KWH030ST12-F01)

  • Main Specification
  • 3.0 inch TFT LCD screen
  • Resolution: 240 x3 RGB x 400 Stripe type
  • Interface: MCU 80 - system 8/9/16/18 bit Interface
  • Touch Panel : without


Place of Origin:

Guangdong, China (Mainland)

Brand Name:

FORMIKE

Model Number:

KWH030ST12-F01

Type:

LCM

LCD Type:

240 x 400 tft lcd module

Display Mode:

Normal White, Transmissive

Resolution:

240(RGB) x 400

Outline:

45.04x77.00x2.45mm

Active Area:

38.88x64.80mm

Interface:

8/9/16/18 BIT MCU, 40pins

Brightness:

280 cd/m2

Viewing Angle:

6 O'clock

Contrast Ratio:

250:1 (Typ.)

Touch Panel:

without (option with)
