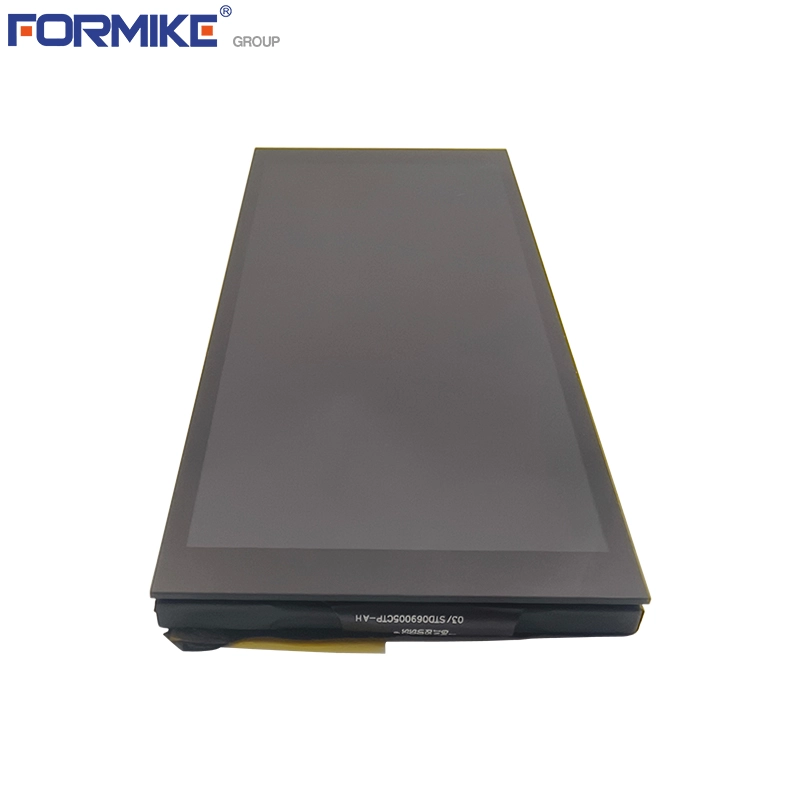

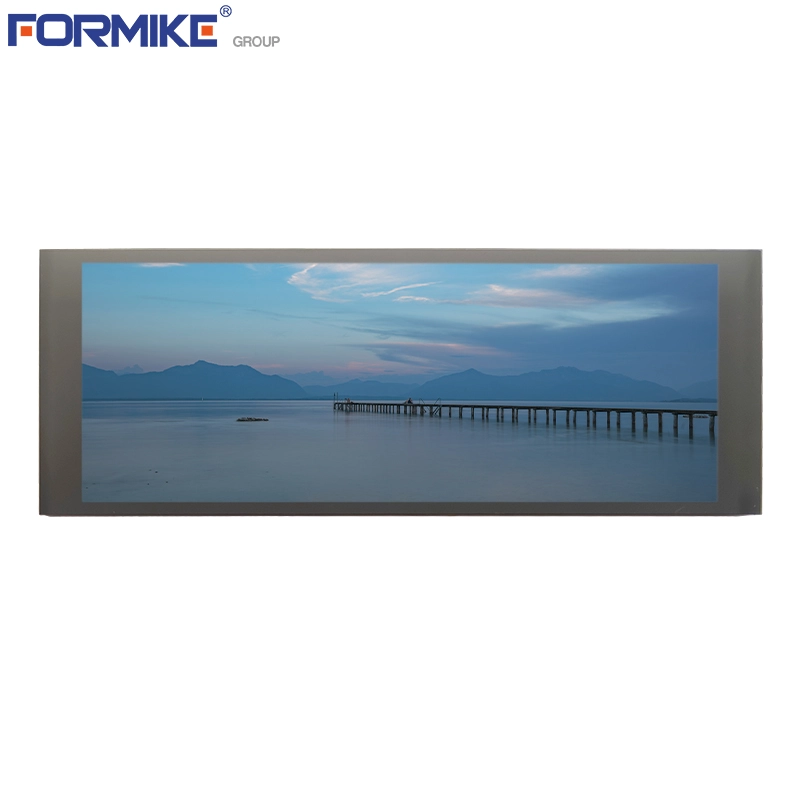

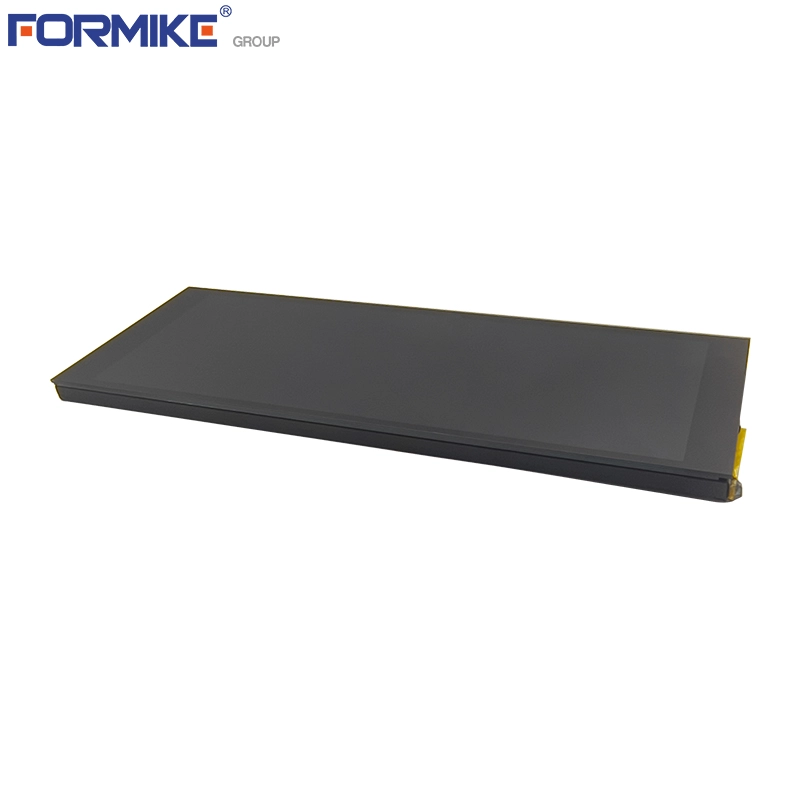

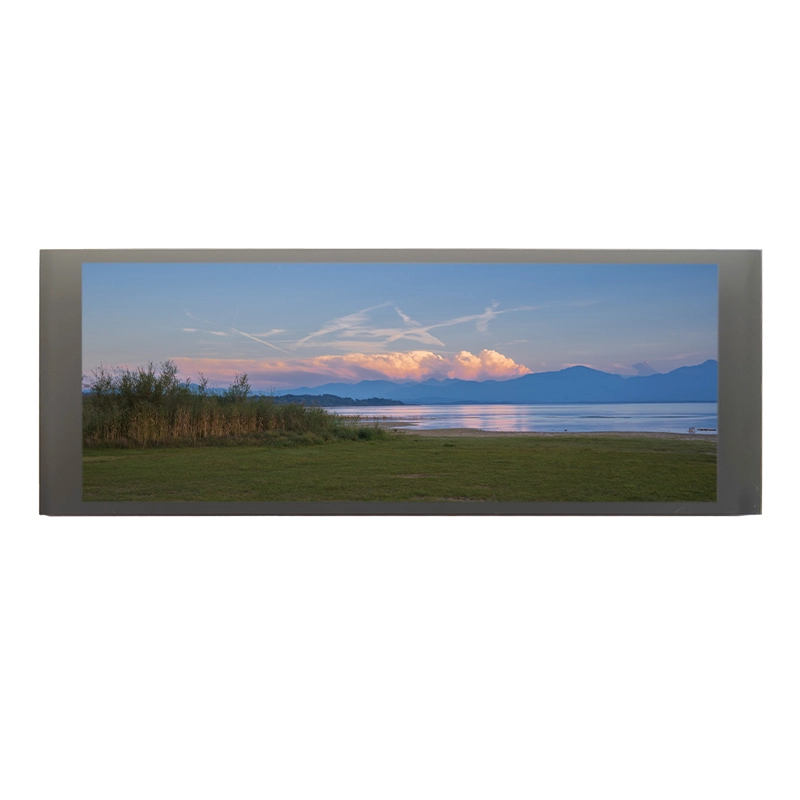

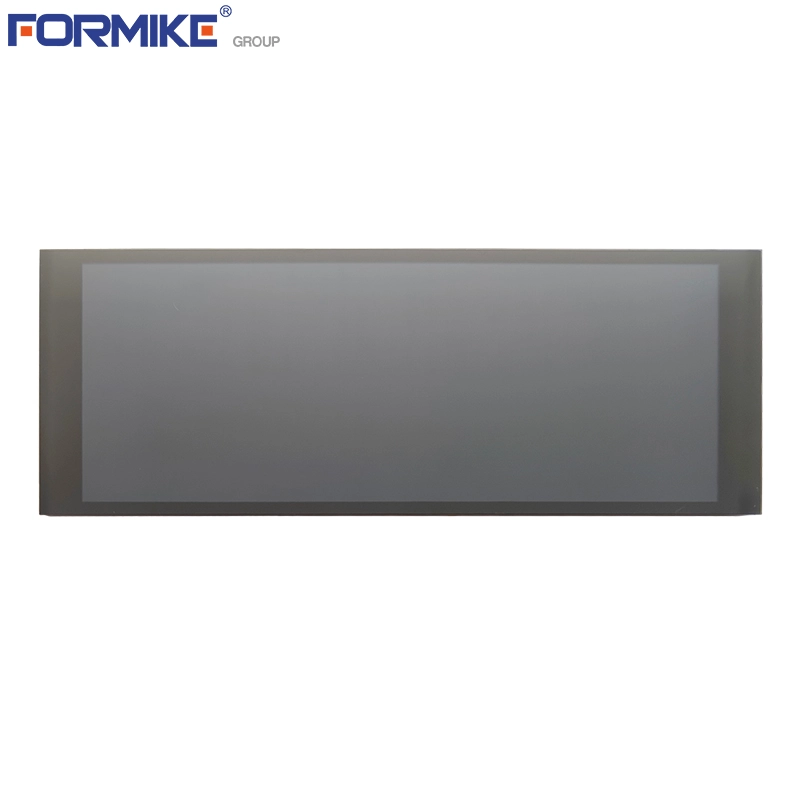

Stretched Bar LCD Display 6.86 Inch 480x1280 Stretch Bar Type LCD Touch Screen Panel (KWH0686ST01-C01)
- Model Name: KWH0686ST01-C01
- Product type: LCM+CTP(IPS)
- Screen Size: 6.86"
- Aspect Ratio: 06:16
- Display Mode: Transmissive
- Resolution: 480X1280
- PPI ( Pixel per inch ): 200
- Module Size(mm): 66.9x 181.6 x 6.3
- Active Area(mm): 60.22 x 160.59
- Dot Pitch(mm): 0.1254(W)×0.1254(H)
- Viewing Angle (Tpy.)θT/θB/θL/θR: 80/80/80/80
- Viewing direction: ALL
- NTSC: 55%
- Luminance(cd/m2): 500
- Contrast Ratio: 900
- Response Time(ms): 30
- LEDS (Serial/Parallel): 3S x 8P=24
- Backlight (Current/Voltage): 160mA 9.6V
- Power Consumption (mW): 1536
- Weight (g): TBD
- Interface: 4 LANE MIPI

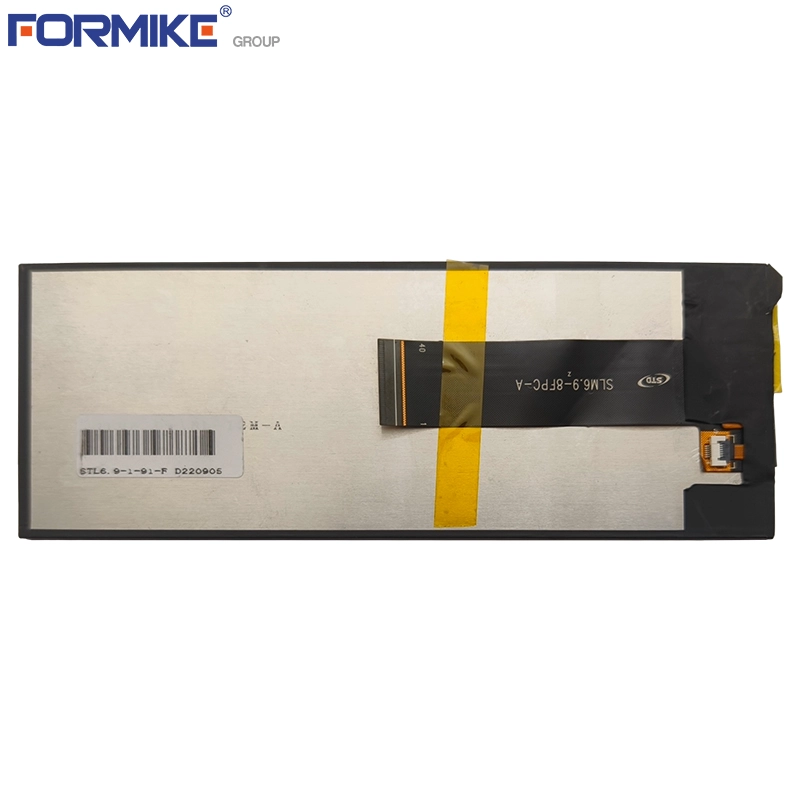

- FPC type: 40Pin connector
- Operation Temperature( ℃): -20~70℃
- Storage Temperature (℃): -30~80℃
- HTHH.(op): 40℃,90% RH
- With or without Touch screen: With CTP
Stretched Bar LCD Display 6.86 Inch 480x1280 Stretch Bar Type LCD Touch Screen Panel
| Product Name | Stretched Bar LCD Display 6.86 Inch 480x1280 Stretch Bar Type LCD Touch Screen Panel |
| LCD Size | 6.86 Inch Stretched Bar TFT LCD Display Module |
| Display Mode | IPS, Transmissive Normally Black |
| Resolution | 480x1280 |

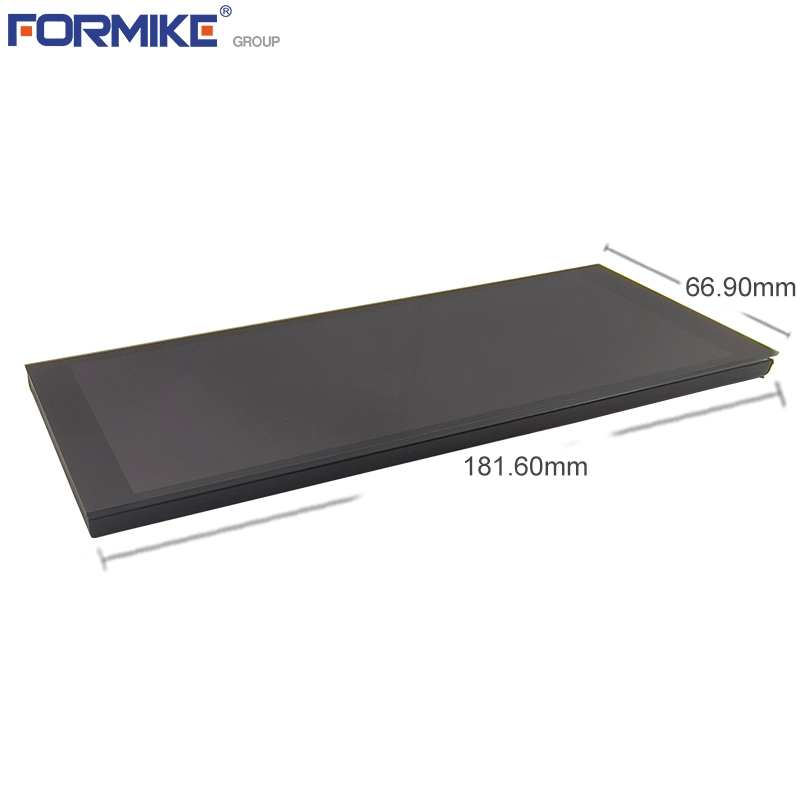

| Outline Dimension (mm) | 66.90 x 181.60 x 6.30 |
| Active Area (mm) | 60.22 x 160.59 |
| Dot pitch (mm) | 0.1254x0.1254 |
| Viewing Direction | All |
| Interface | 4 LANE MIPI Interface, 40 Pin |
| Driver IC | ER68577B |
| Brightness (Cd/m2) | 500 |
| Contrast Ratio | 900:1 |
| Backlight | 24 White LED |
|
Backlight Supply (Current/Voltage) |
160mA 9.6V |
| Touch Screen | With Capacitive Touch Screen Panel |
* KWH0686ST01-C01 is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Capacitive Touch Panel.
* It is 480x1280 resolution Bar Type TFT LCD module.
* Backlight with different brightness options from 250 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
Key Feature:

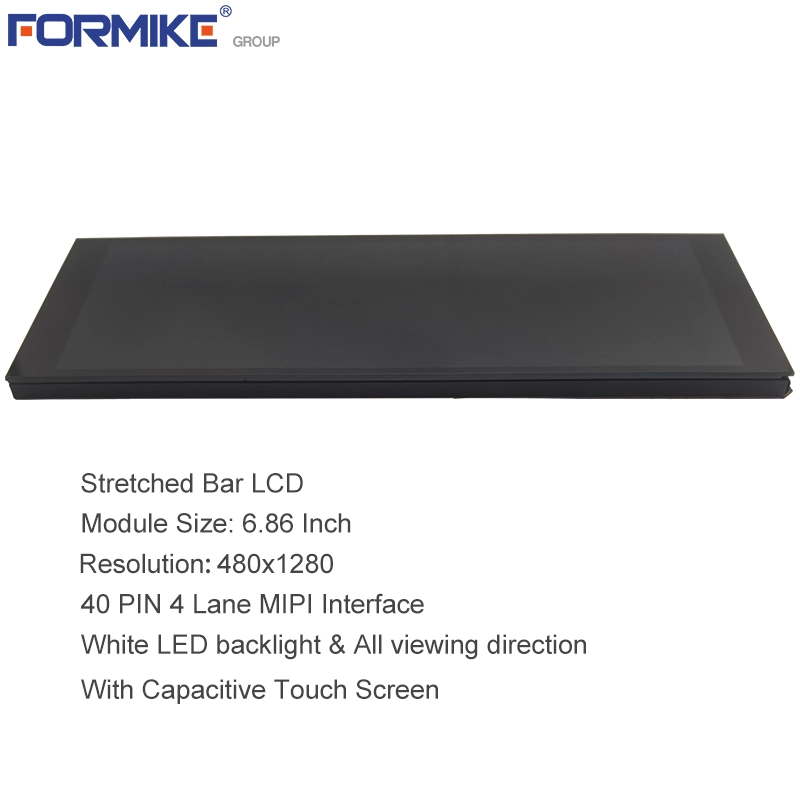

• Stretched bar LCD
• 6.86 inch 480x1280 TFT LCD display
• IPS display type & All viewing angle
• High brightness is up to 500cd/m2
• With 40pin 4 lane MIPI interface
• It's widely used for Stretched Bar LCD, Industrial, Home Appliance, Automotive Display, Outdoor High Brightness, Healthcare, Instruments & Meters and other bar type lcd display solution.
