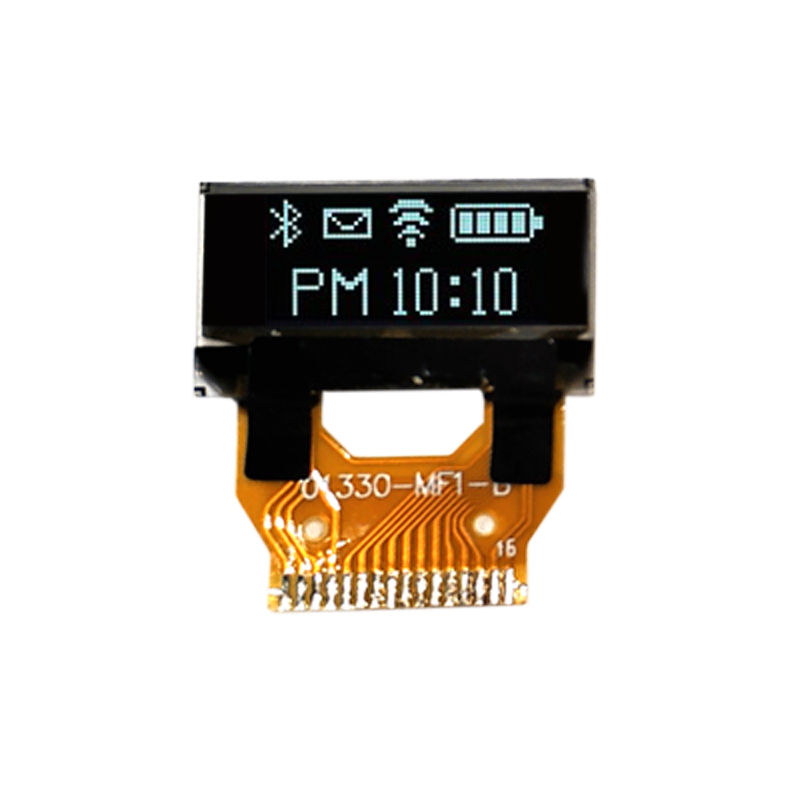

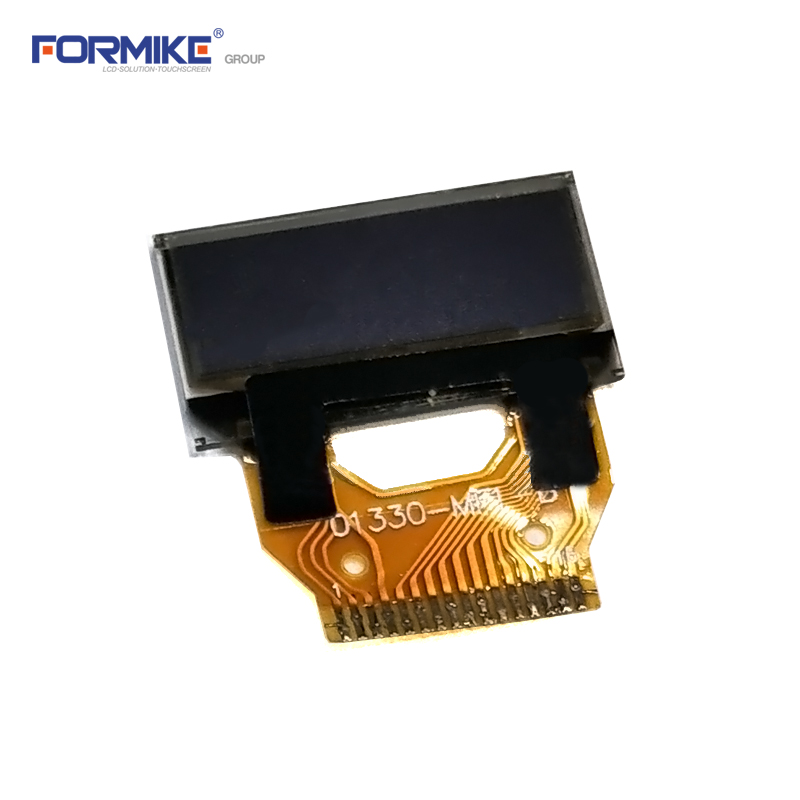

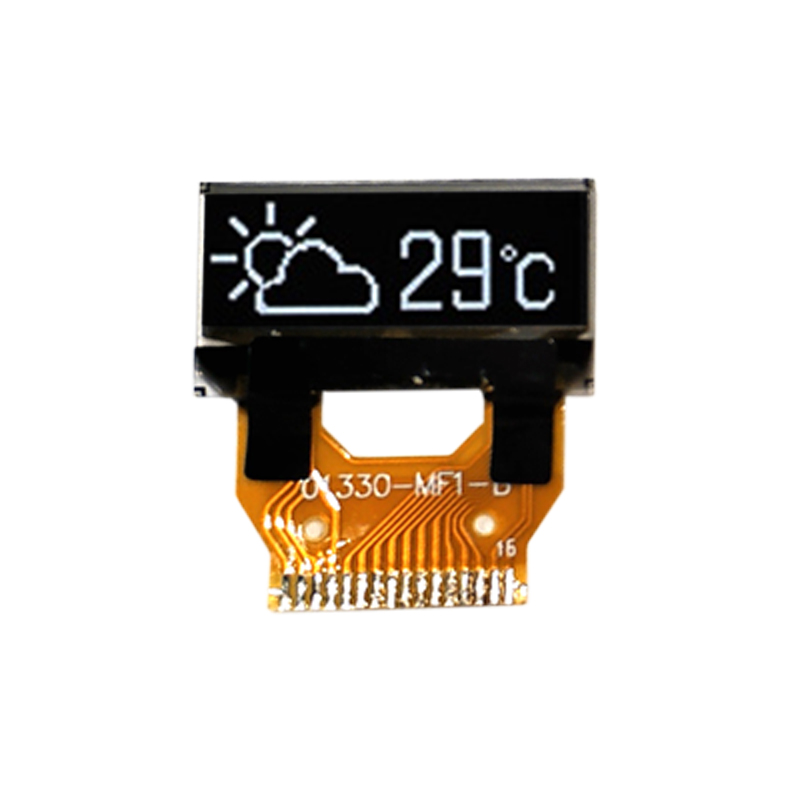

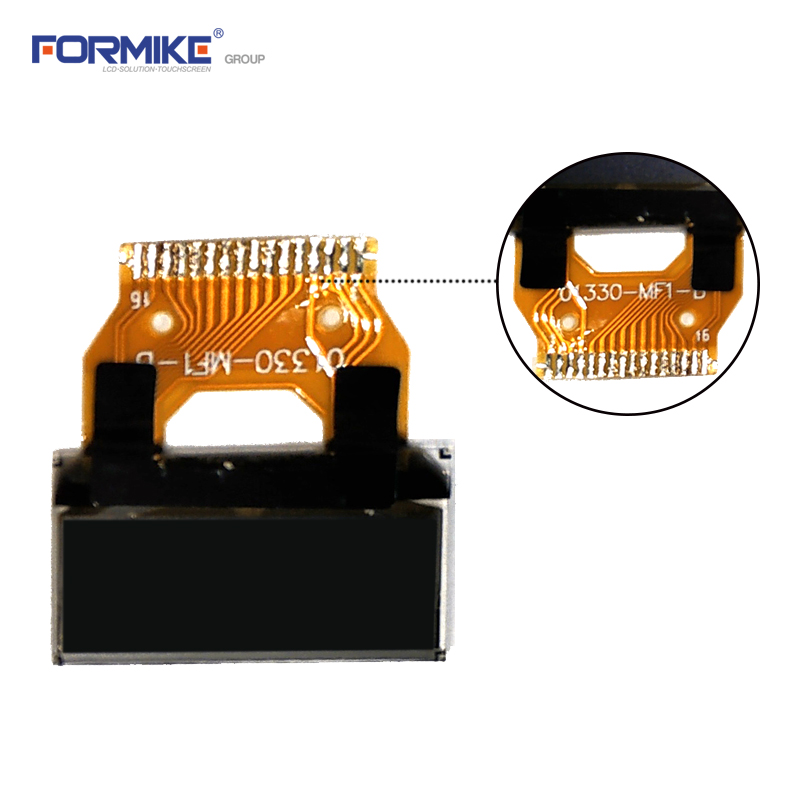

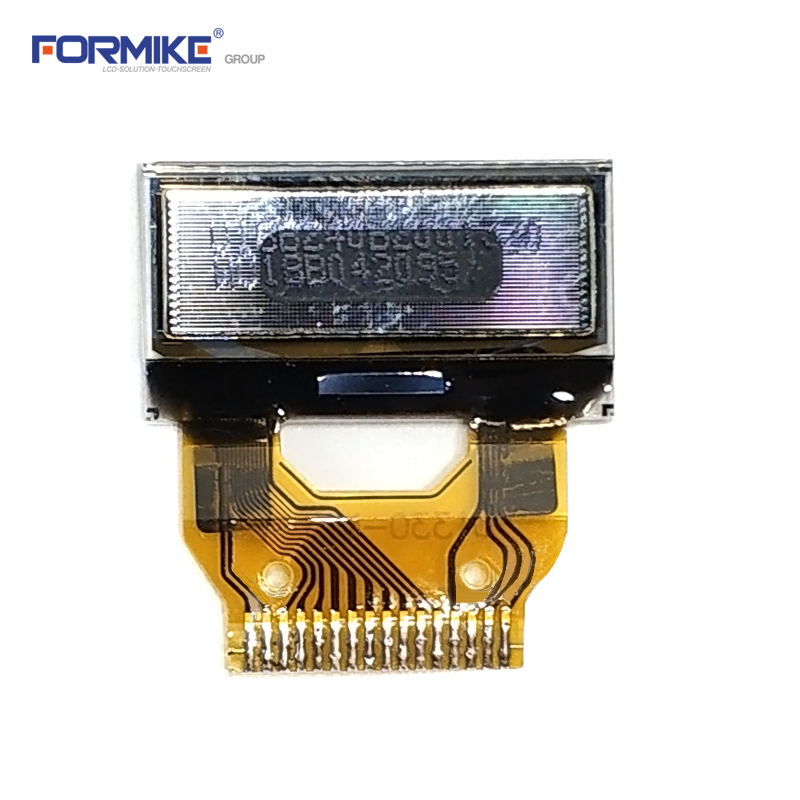

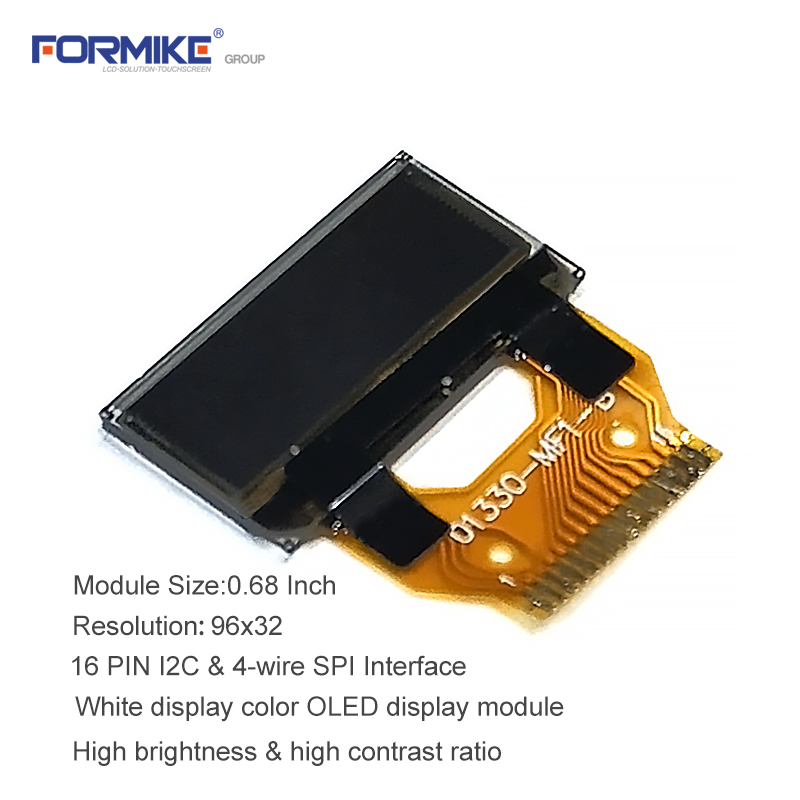

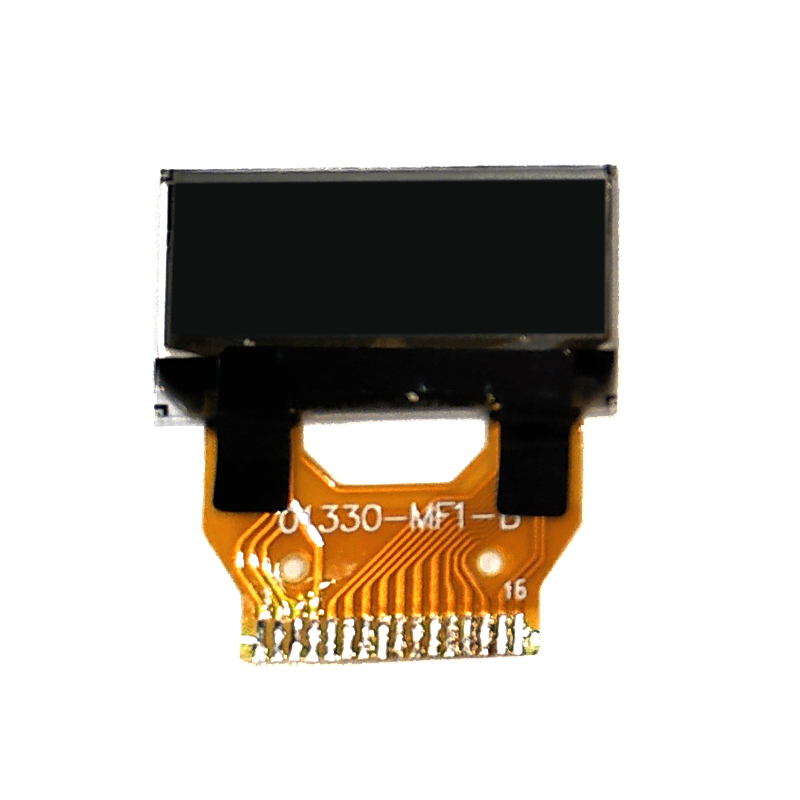

0.68 Inch 96x32 OLED SPI Screen Micro OLED Panel SH1106G OLED Display Module (KWH0068UX01)

  • Product Name:0.68 Inch 96x32 OLED SPI Screen Micro OLED Panel SH1106G OLED Display Module
  • Module Size:0.68 inch OLED Module
  • Dox Matrix:96x32
  • Display Color:Monochrome (White)

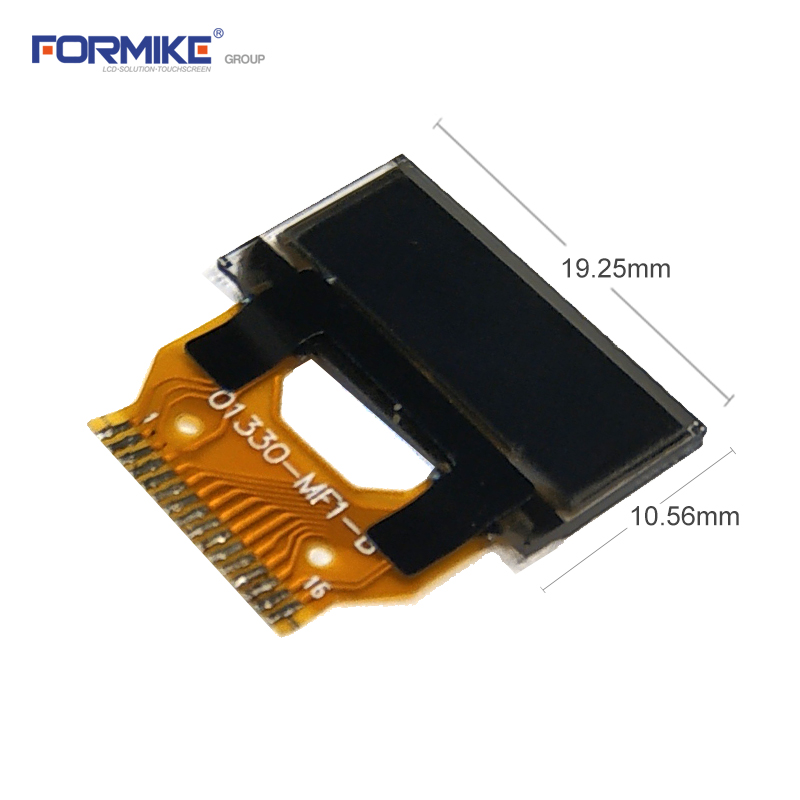

  • Outline Dimension:19.25mm x 20.86mm x 1.28mm
  • Active Area:16.30mm x 5.42mm
  • Dot Size:0.15x0.15 (mm)
  • Dot Pitch:0.17x0.17 (mm)
  • Interface:SPI, I2C, 16pin
  • Drive Duty:SH1106G
  • Brightness:150cd/m2
  • Dark Room Contrast Ratio:2000:1
  • Viewing Angle:Free
  • Response Time:10 μs

0.68 Inch 96x32 OLED SPI Screen Micro OLED Panel SH1106G OLED Display Module

OLED

Name 0.68 Inch 96x32 OLED SPI Screen Micro OLED Panel SH1106G OLED Display Module

Size

0.68 inch OLED Module

Dot Matrix

96X32

Display Color

White

Dark Room Contrast Ratio

2000:1

Module Size

19.25 x 20.86 x 1.28mm

Active Area(HxV mm)

16.30 x 5.42mm

Dot Size

0.15(W)×0.15 (H)

Interface

I2C, 4-wire SPI, 16 Pin

Operating Temperature

 -40℃~70℃

Brightness

150cd/m2

IC Driver

SH1106G

Backlight Supply Current/Voltage

10mA,3.0V

* KWH0068UX01 is a Monochrome OLED display module with 96×32 dot matrix.

* The characteristics of this display module:

1)Micro;

2)Self-emission;

3)High contrast ratio is over 2000:1.

4)Slim/thin outline

5)Wide viewing angle is over 160 degree;

6)Wide temperature range is nearly -40℃~85℃;

7)Low power consumption reaches to 99.9mW;

8)Fast response time reaches to 10µS.

* Backlight with different brightness options from 150 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
