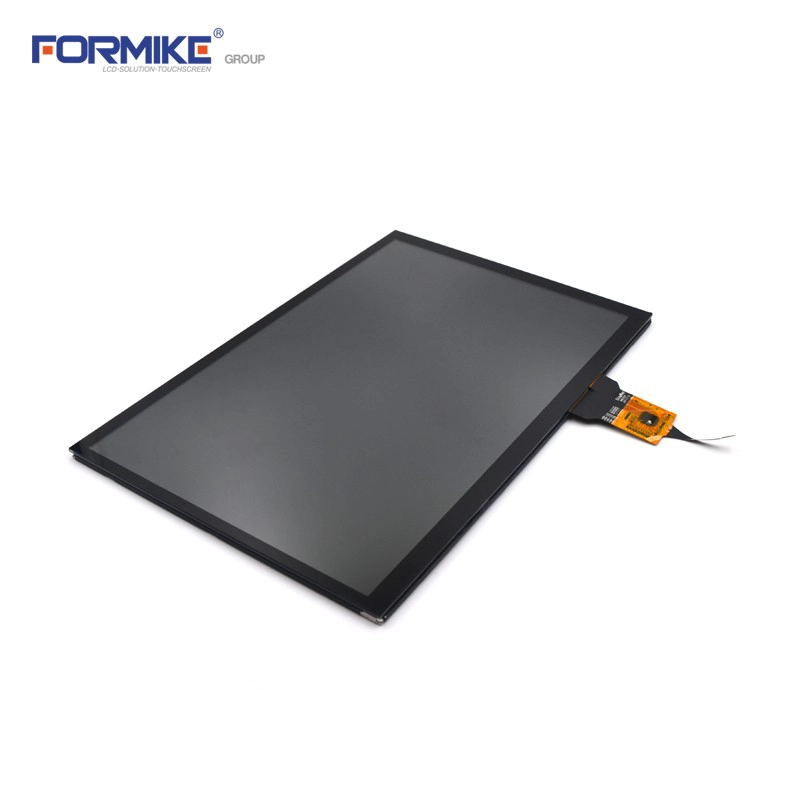

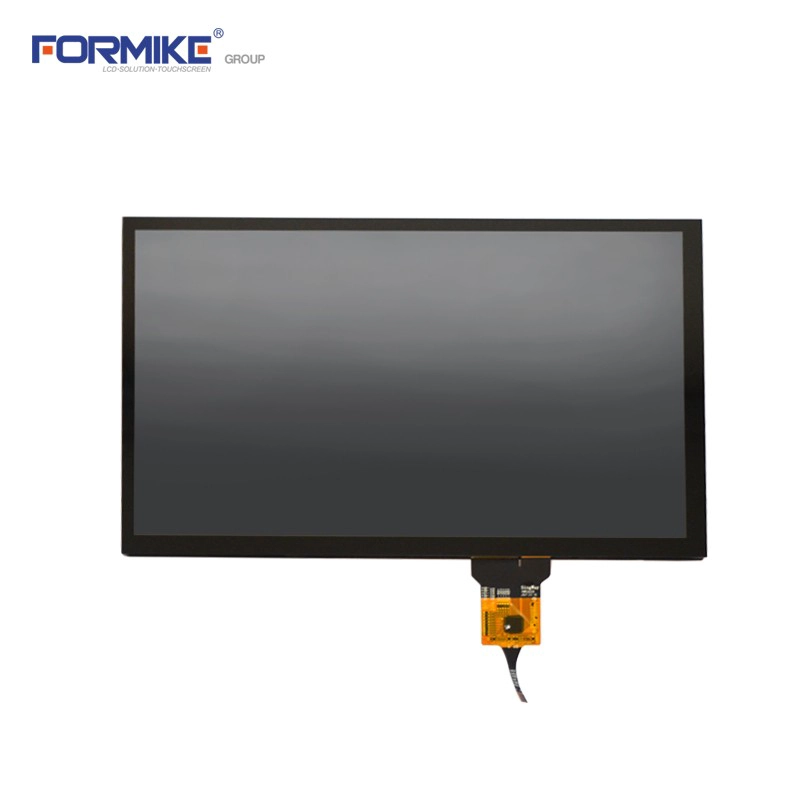

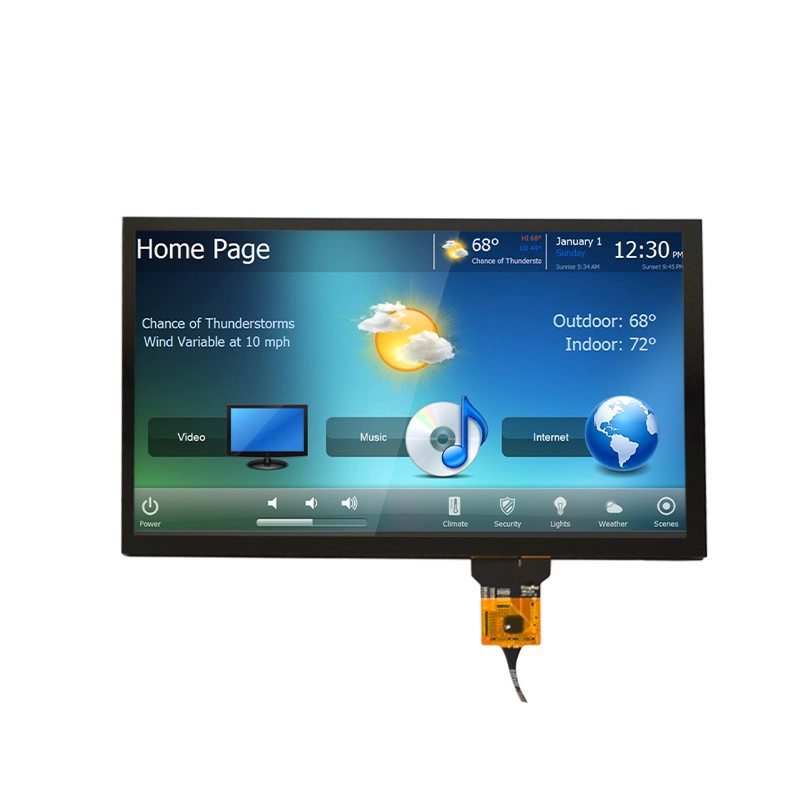

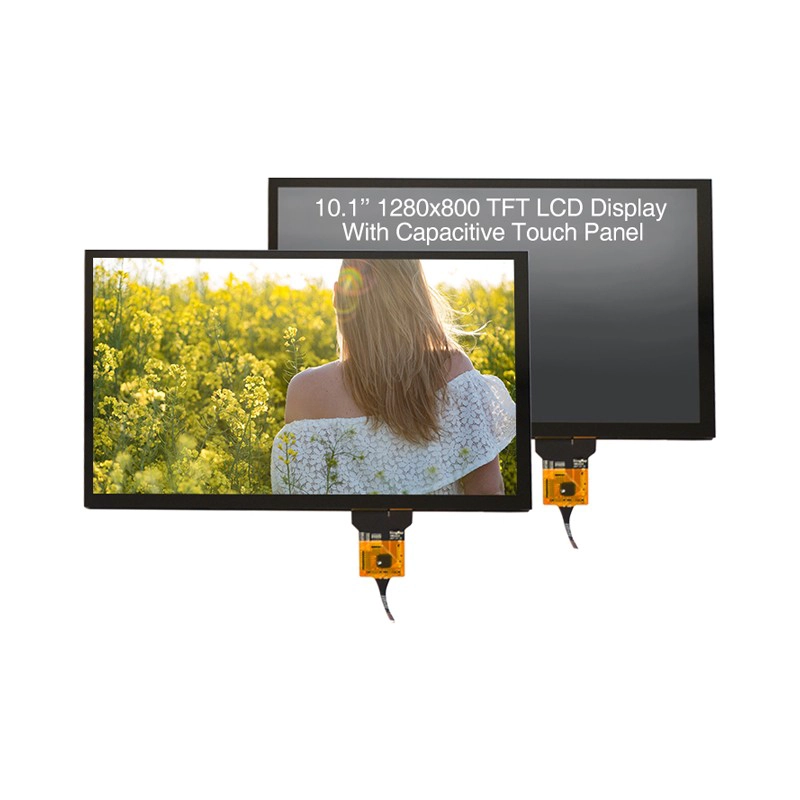

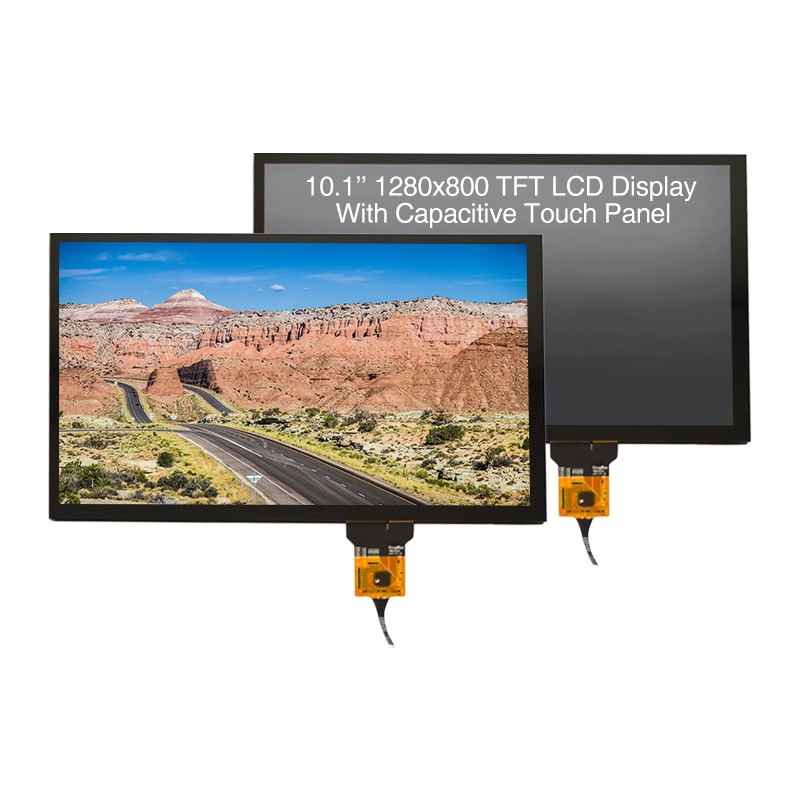

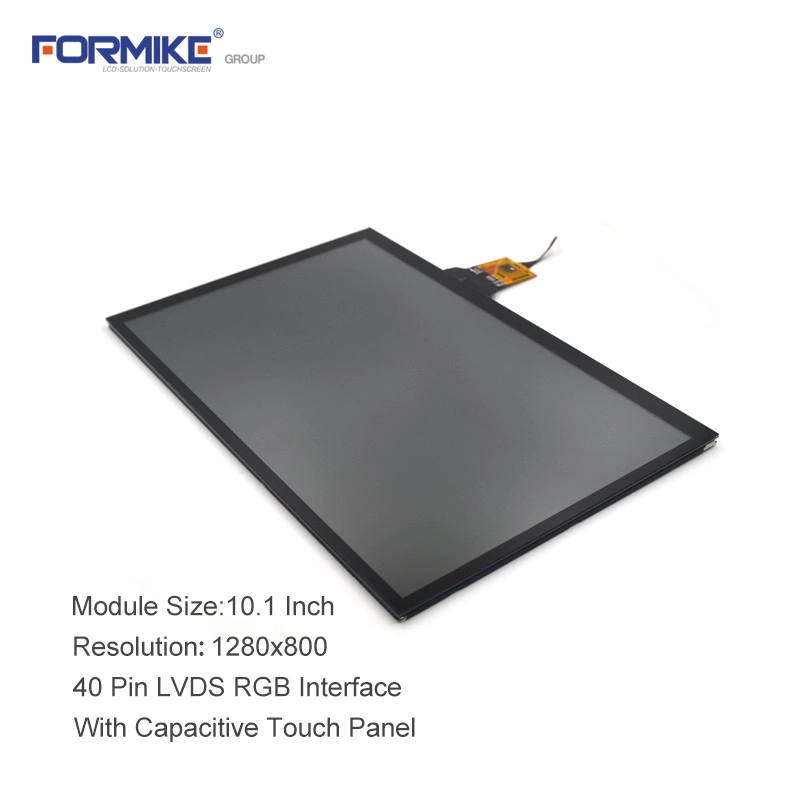

10.1'' IPS LCD Display LVDS Capacitive Touch Screen 10inch LCD Module(KWH101KQ07-C01)

  • LCD Name: 10.1'' IPS LCD Display LVDS Capacitive Touch Screen 10inch LCD Module
  • LCD size: 10 Inch LCD Display
  • Display mode: IPS LCD, Normal Black
  • Touch Panel: With Capacitive touch panel
  • Resolution: 1280x800

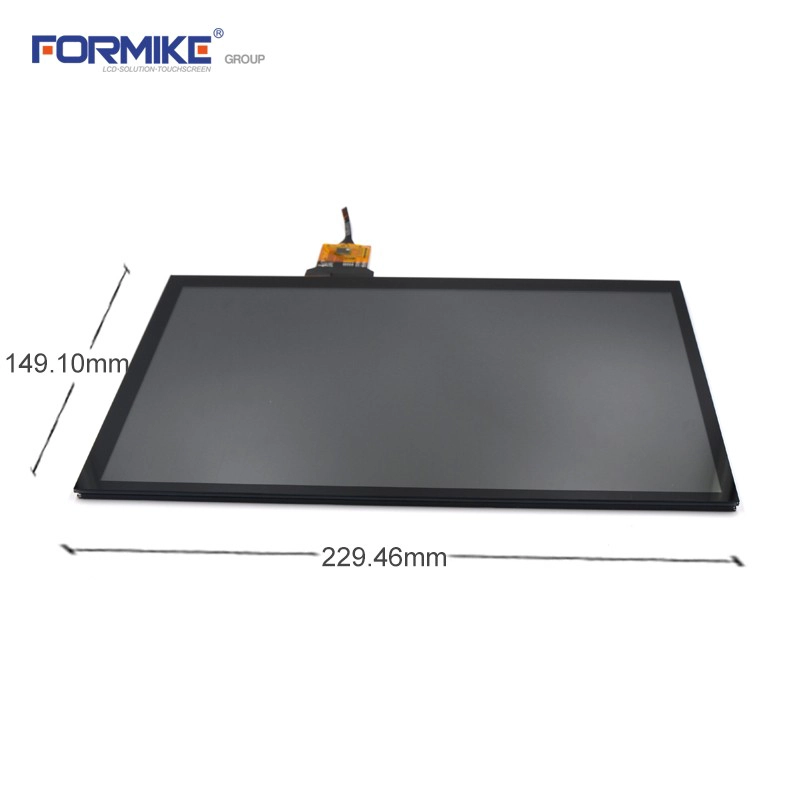

  • Outline dimensions: 229.46 x 149.10x 4.90mm
  • Active area: 216.96x135.60mm
  • Viewing Direction: ALL
  • Brightness: 350 cd/m2
  • Contrast Ratio: 800: 1
  • Supply Voltage: 8.8V
  • Supply Current: 200mA
  • Power dissipation: 1760mW
  • Interface:  LVDS Interface
  • Connector: 40 pin FPC
  • Backlight:  30 White LED In serial/parallel
  • Surface Hardness: 6H
  • CTP Para:: GT911, G+G
  • Operating temp.: 0°C~+50°C
  • Storage temp.: -20°C~+60°C

10.1'' IPS LCD Display LVDS Capacitive Touch Screen 10inch LCD Module

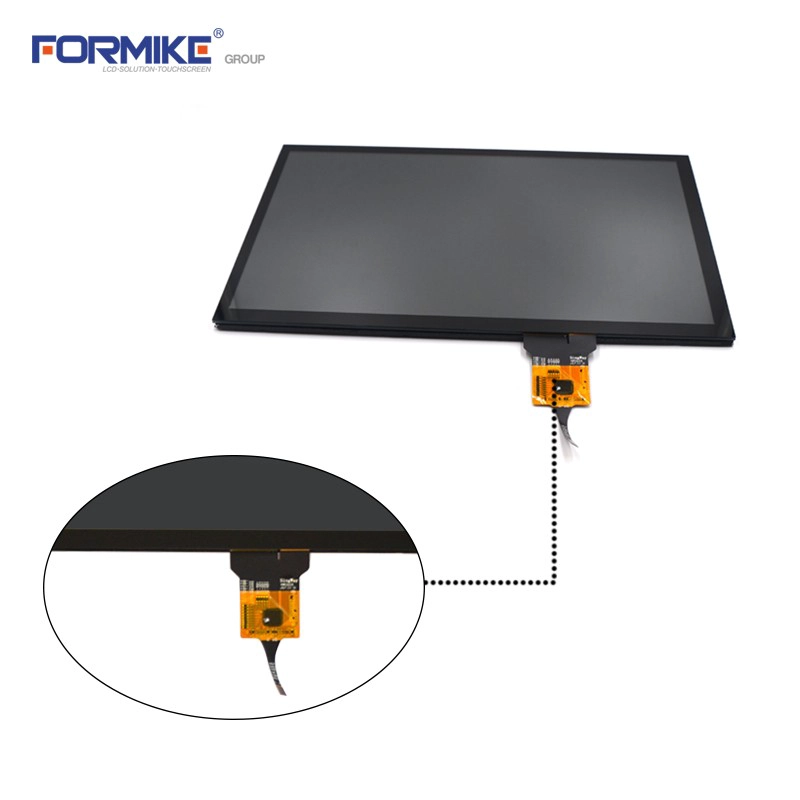

capacitive touch panel

Product Name 10.1'' IPS LCD Display LVDS Capacitive Touch Screen 10inch LCD Module
LCD Size 10.1 Inch TFT LCD Display Module
Display Mode IPS
Resolution 1280x800
Outline Dimension (mm) 229.46x149.10x4.90
Active Area (mm) 216.96x135.60
Dot pitch (mm) 0.1695x0.1695
Viewing Direction All
Interface LVDS Interface, 40 Pin
Surface Hardness 6H
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 30 White LED

Backlight Supply

(Current/Voltage)

 200mA 8.8V
Touch Screen With Capacitive Touch Panel

* KWH101KQ07-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

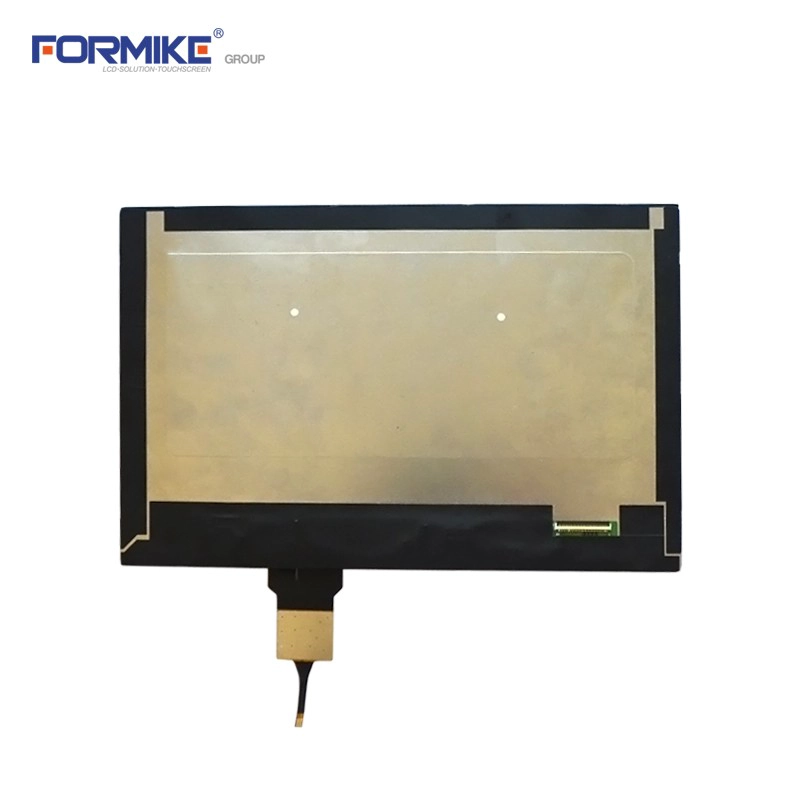

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 1280x800 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
