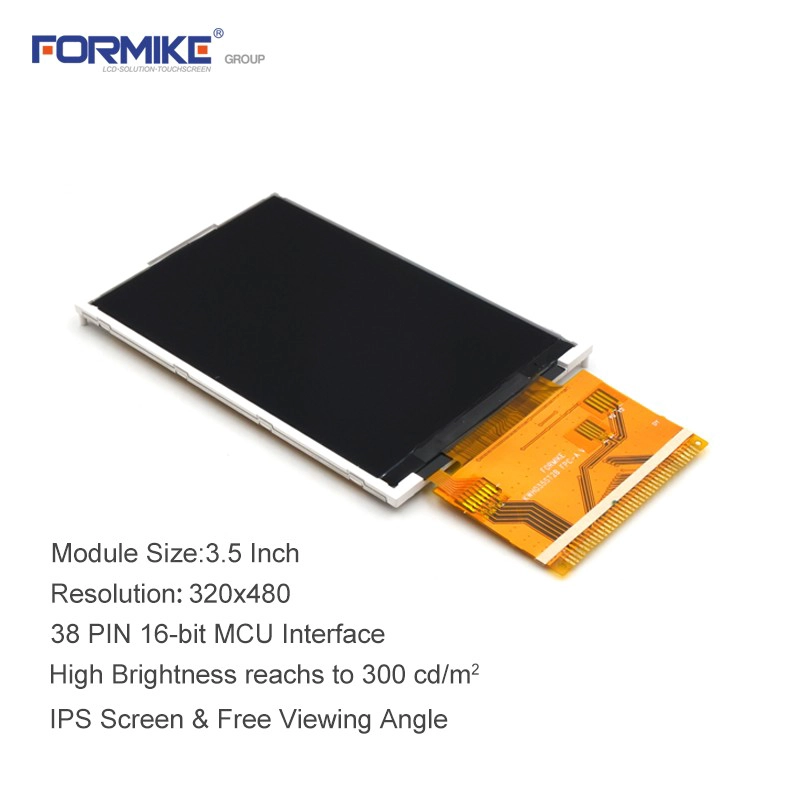

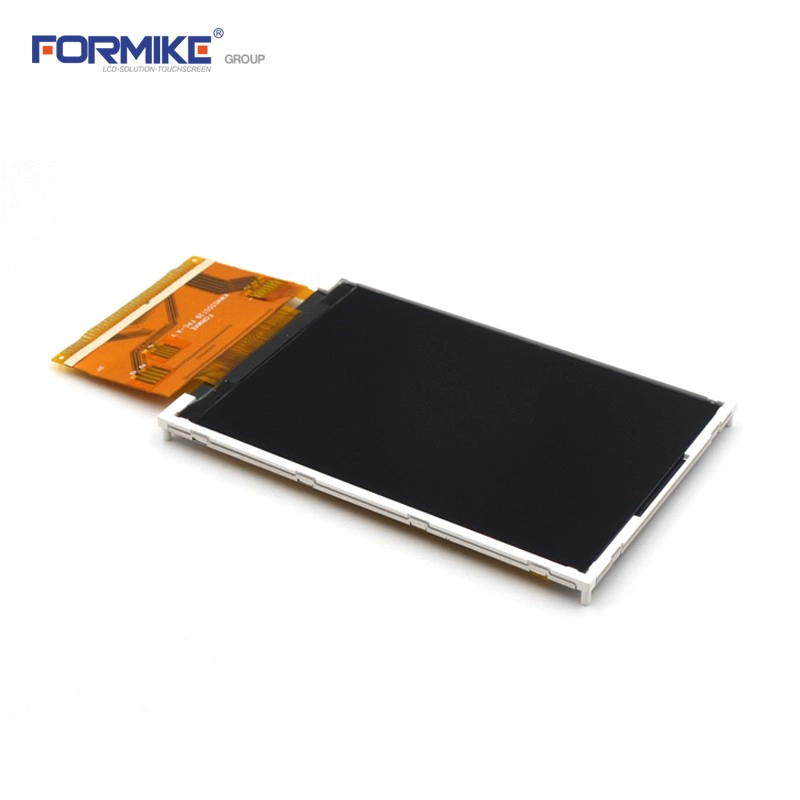

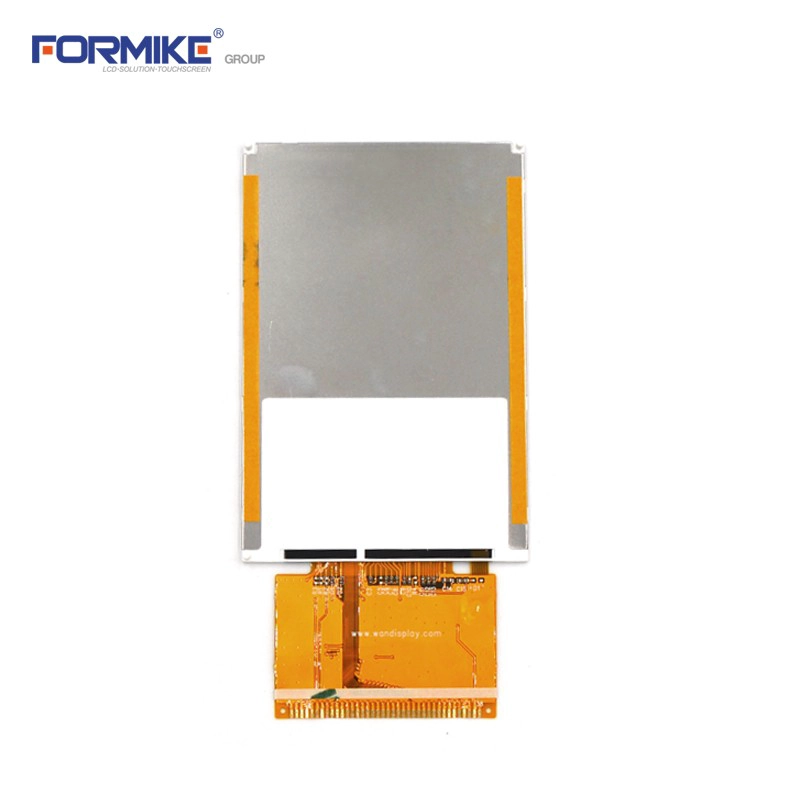

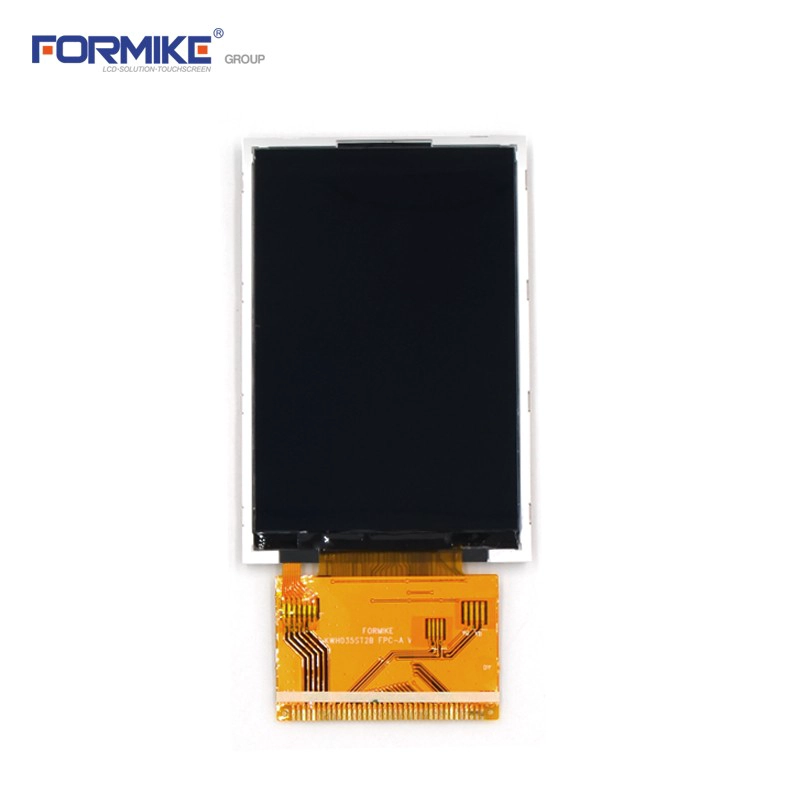

3.5 Inch TFT Module 320*480 LCD Display IPS 3.5'' HVGA 320x480 TFT LCD Display(KWH035ST28-F01)
- LCD Name: 3.5 Inch TFT Module 320*480 LCD Display IPS 3.5'' HVGA 320x480 TFT LCD Display
- LCD size: 3.5 inch LCD Display
- Display mode: IPS LCD display
- Touch Panel: Without touch screen
- Resolution: 320x480

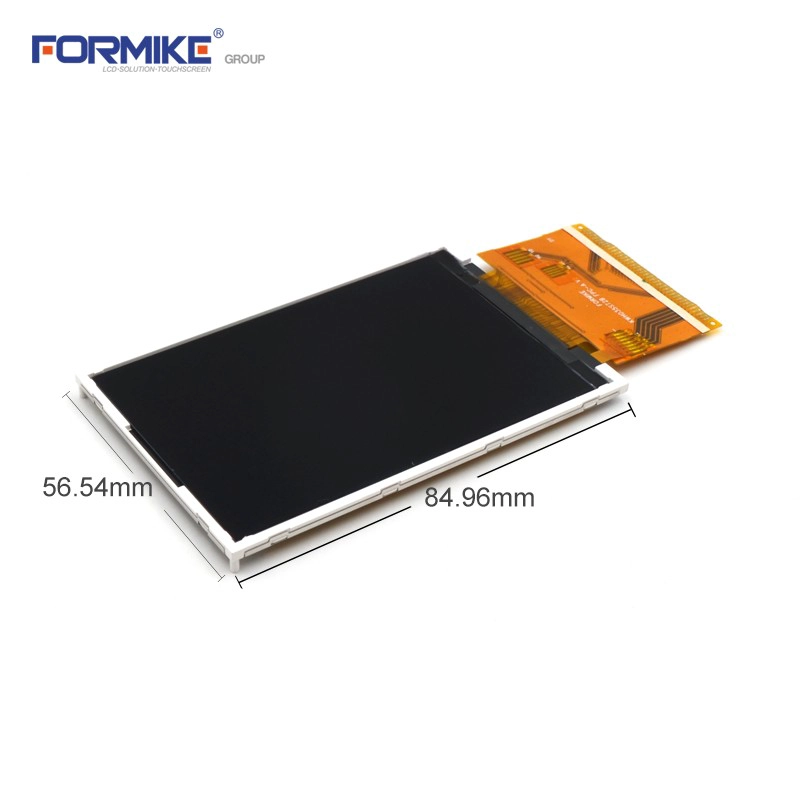

- Outline dimensions: 56.54 x 84.96 x 2.2 mm
- Active area: 48.96x73.44 mm
- Brightness: 300 cd / m2
- Contrast Ratio: 700: 1
- Supply Voltage: 3.2V
- Supply Current: 90mA
- Power dissipation: 282mW
- Interface: 8-bit or 16-bit MCU

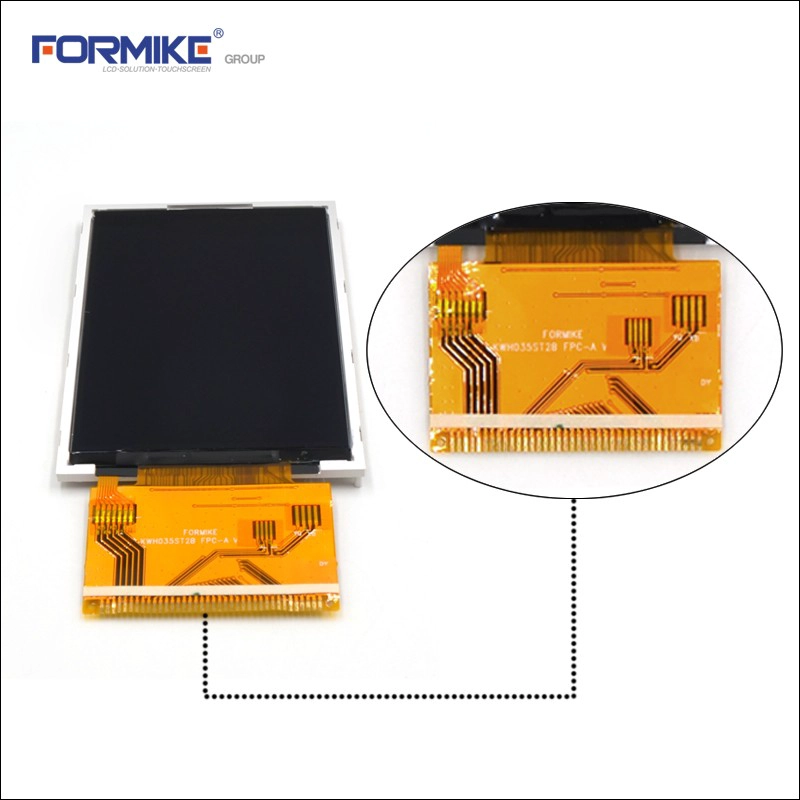

- Connector: 38 pin FPC
- Backlight: 6 white LEDs
- Driver IC: ILI9488
3.5 Inch TFT Module 320*480 LCD Display IPS 3.5'' HVGA 320x480 TFT LCD Display
LCD Name | 3.5 Inch TFT Module 320*480 LCD Display IPS 3.5'' HVGA 320x480 TFT LCD Display | ||
LCD Size |
3.5 inch LCD Module |
Resolution |
320(RGB)X480 Resolution |
Color Depth |
65k |
Contrast Ratio |
700:1 |
Outline Dimension |
56.54x 84.96 x 2.20mm |
Active Area(HxV mm) |
48.96x73.44mm |
Viewing Direction |
ALL |
Interface |
MCU, 38 Pin |
Backlight |
6 White LED In Parallel |
Brightness |
300cd/m2 |
Operating Temperature |
-20℃~70℃ |
Backlight Supply Current/Voltage |
90mA, 3.2V |
* KWH035ST28-F01 is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* It is 320x480 resolution TFT LCD module.
* Backlight with different brightness options from 200 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
