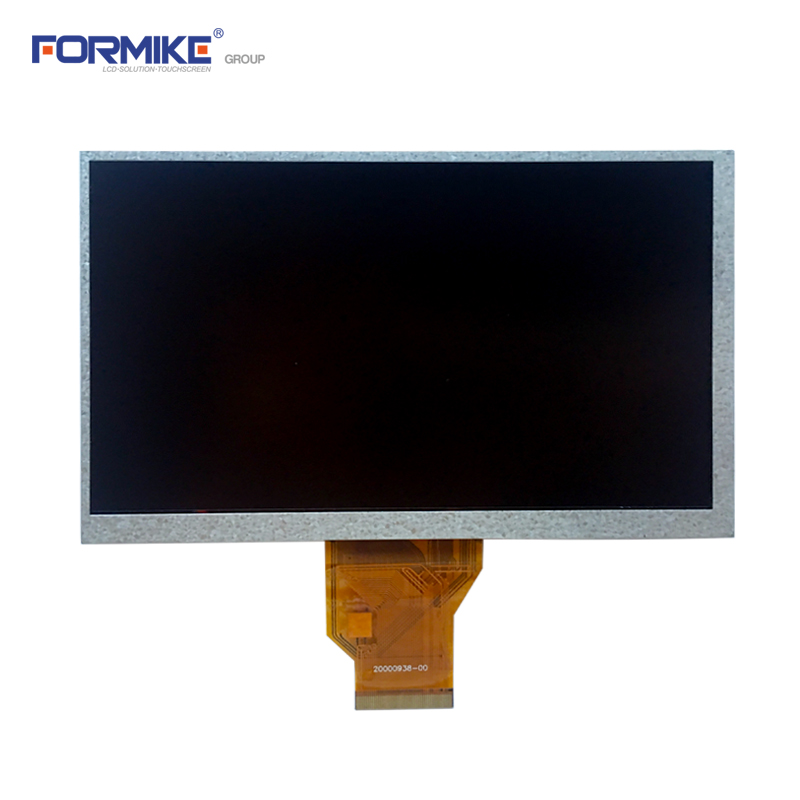

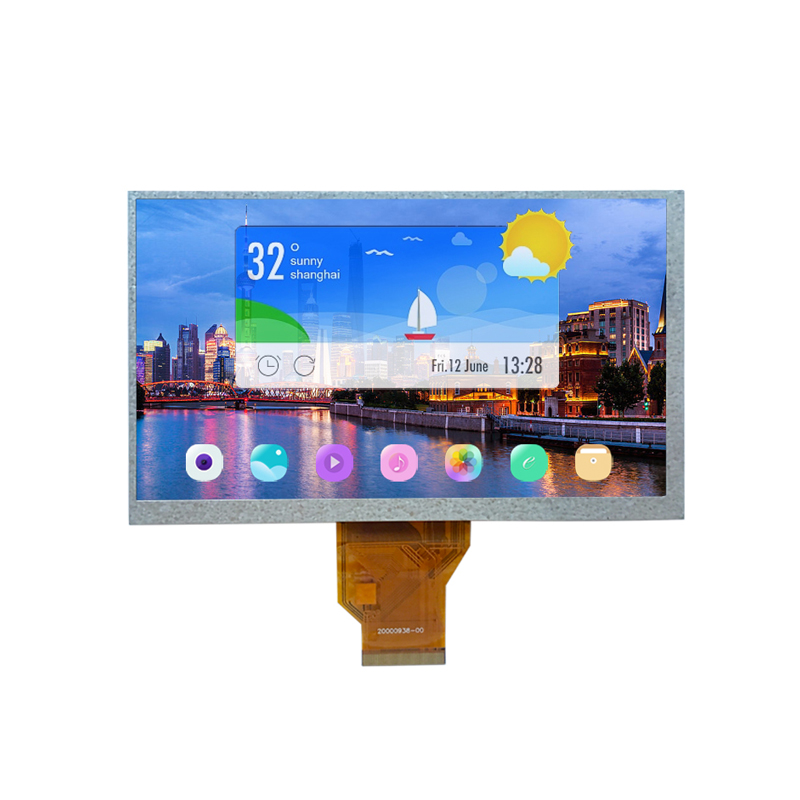

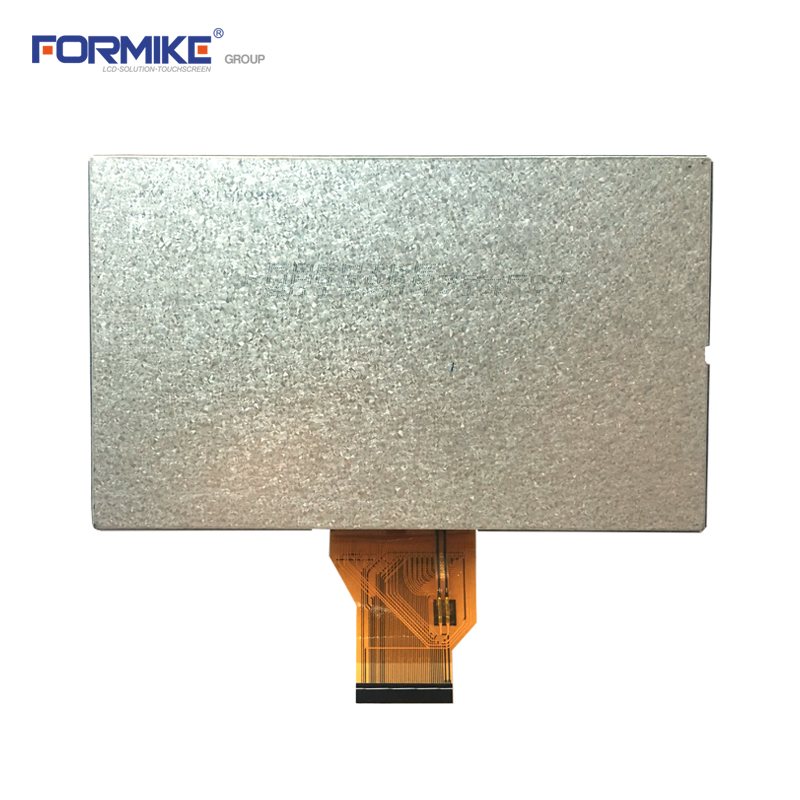

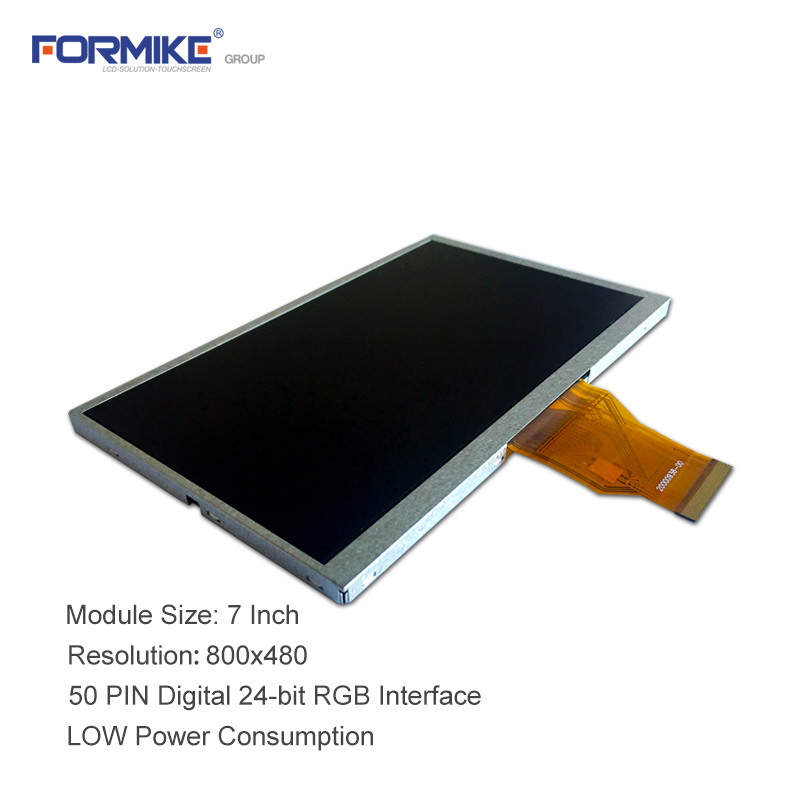

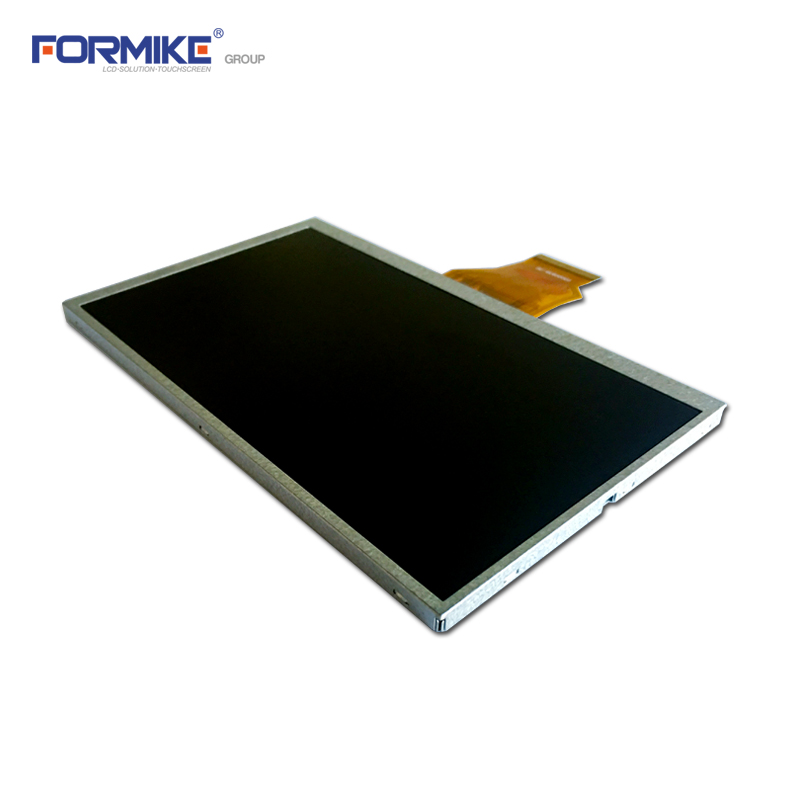

Industrial LCD 7 inch Display 800x480 TFT LCD Screen Module With 50 Pin(KWH070KQ38-F01)
- LCD Name: Industrial LCD 7 inch Display 800x480 TFT LCD Screen Module With 50 Pin
- LCD size: 7 inch LCD Display
- Display mode: Transmissive LCD
- Touch Panel: Without touch screen
- Resolution: 800*480

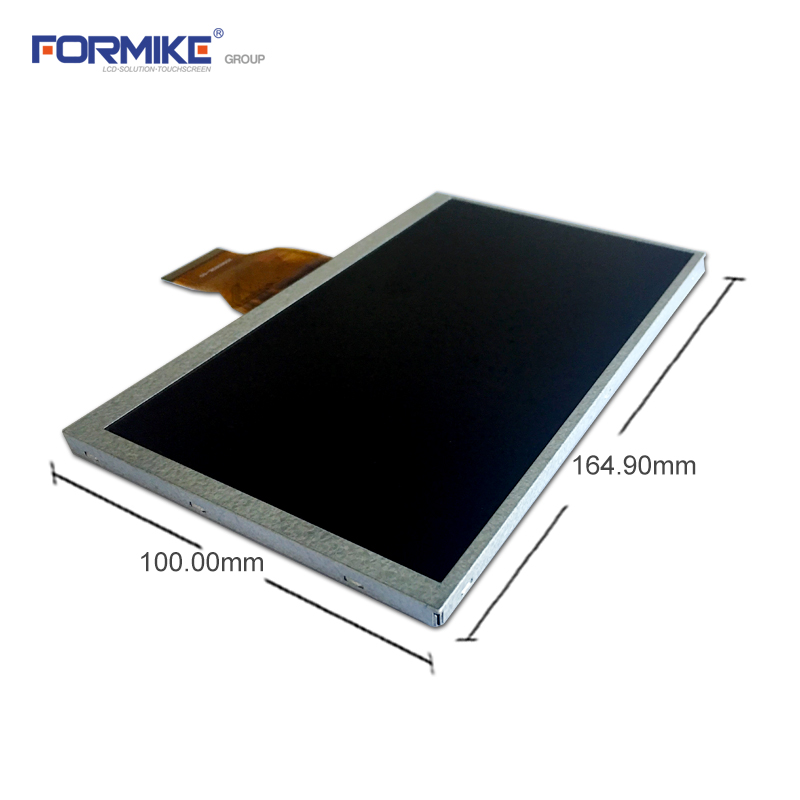

- Outline dimensions: 164.90 x 100.00x 5.8 mm
- Active area: 154.08x85.92mm
- Viewing Direction: 6 O' clock
- Brightness: 250 cd/m2
- Contrast Ratio: 500: 1
- Supply Voltage: 9.6V
- Supply Current: 80mA
- Power dissipation: 768mW
- Interface: 24 Bit RGB Interface

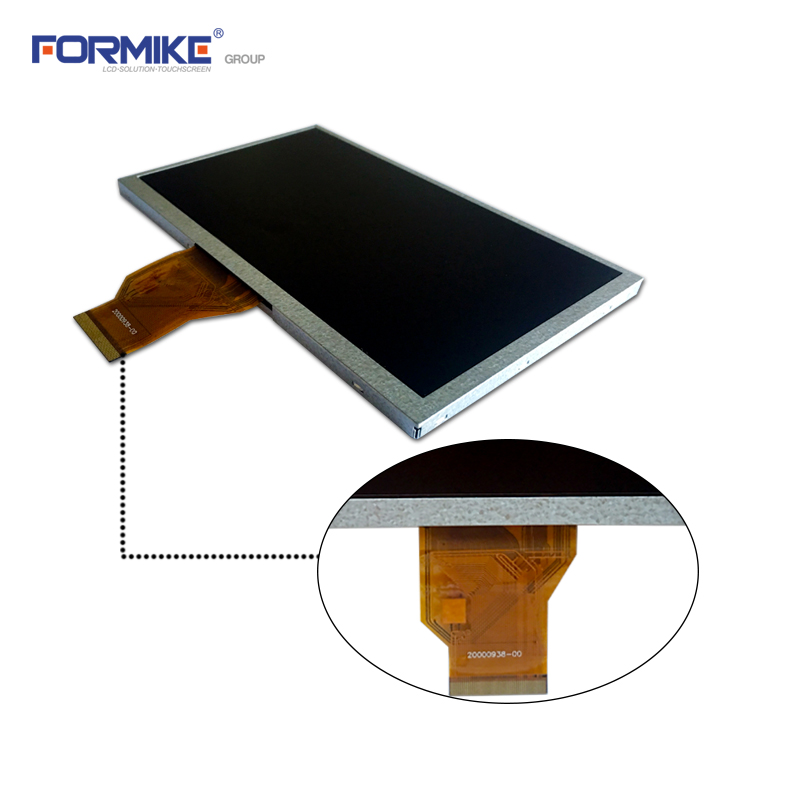

- Connector: 50 pin FPC
- Backlight: 7 LEDs
Industrial LCD 7 inch Display 800x480 TFT LCD Screen Module With 50 Pin
| LCD Name | Industrial LCD 7 inch Display 800x480 TFT LCD Screen Module With 50 Pin | ||
|
LCD Size |
7 inch LCD Module |
Resolution |
800(RGB)X480 Resolution |
|
Color Depth |
16.7M |
Contrast Ratio |
500:1 |
|
Outline Dimension |
164.90x 100.00 x 5.5mm |
Active Area(HxV mm) |
154.08x85.92mm |
|
Viewing Direction |
6 O'clock |
Interface |
Digital, 24 BIT RGB, 50 Pin |
|
Backlight |
White LED |
Brightness |
250cd/m2 |
|
Operation Temperature |
-20~70℃ |
Backlight Supply Current/Voltage |
80mA 9.6V |
* KWH070KQ38-F01 is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* It is 800x480 resolution TFT LCD module.
* Backlight with different brightness options from 200 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.
