3.3V Bluetooth RTL8723BU USB 2.0 Wifi Module with External Antenna(KWH-8723-BU)3.3V Bluetooth RTL8723BU USB 2.0 Wifi Module with External Antenna(KWH-8723-BU)3.3V Bluetooth RTL8723BU USB 2.0 Wifi Module with External Antenna(KWH-8723-BU)3.3V Bluetooth RTL8723BU USB 2.0 Wifi Module with External Antenna(KWH-8723-BU)3.3V Bluetooth RTL8723BU USB 2.0 Wifi Module with External Antenna(KWH-8723-BU)

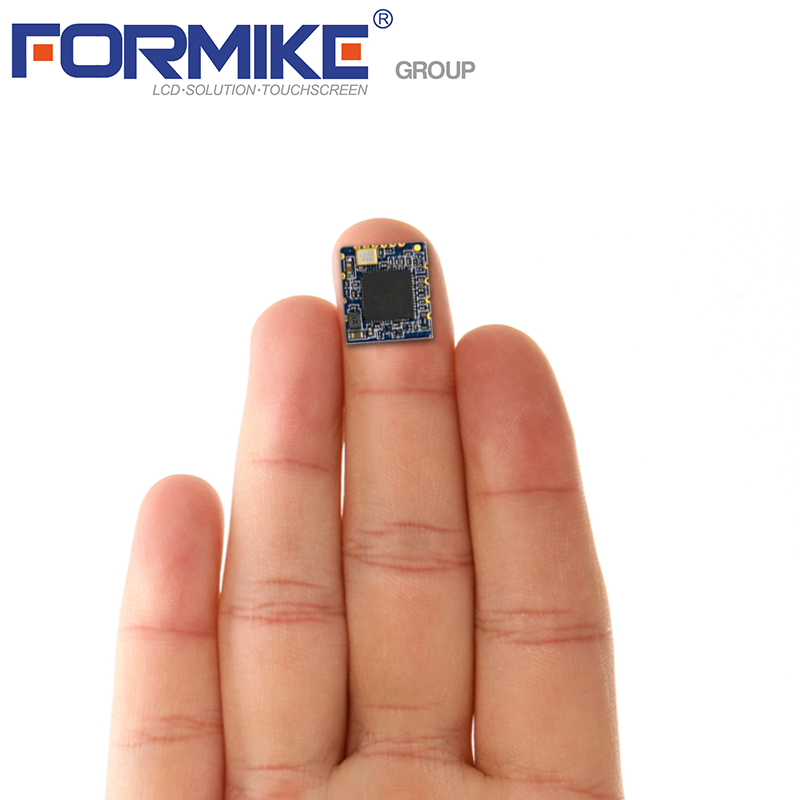

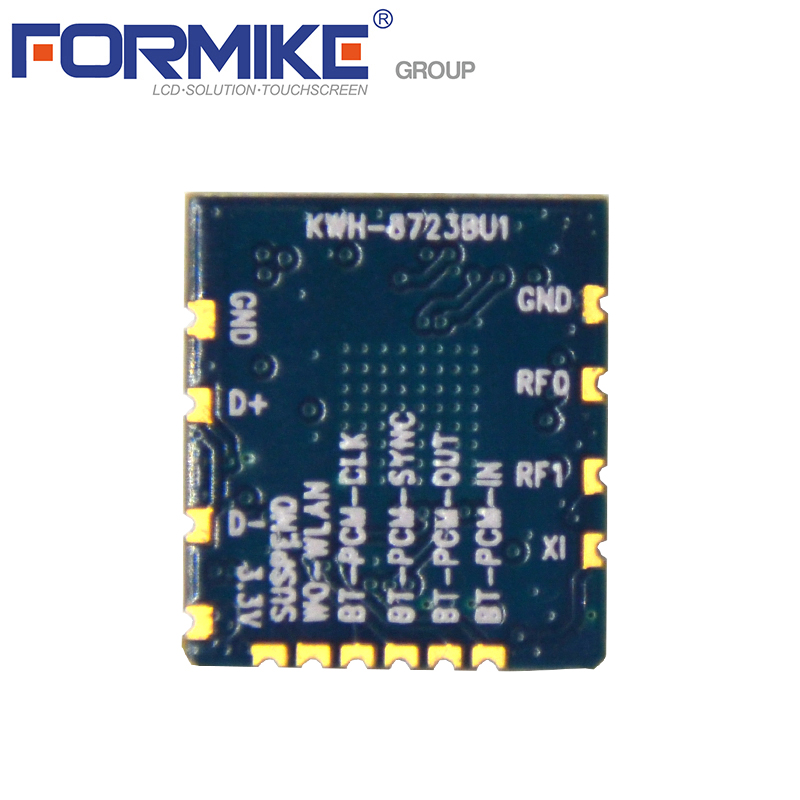

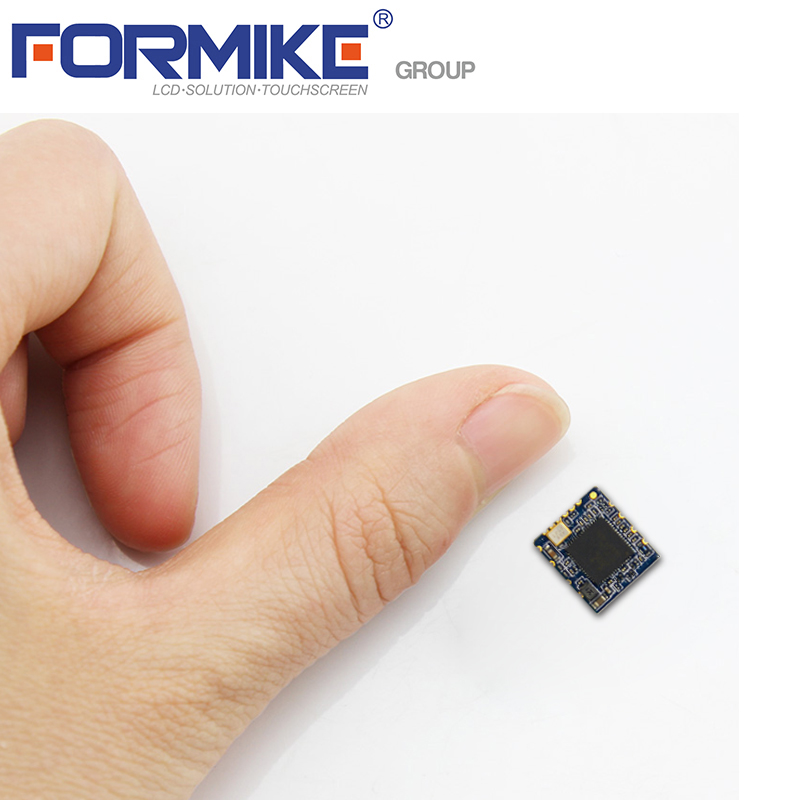

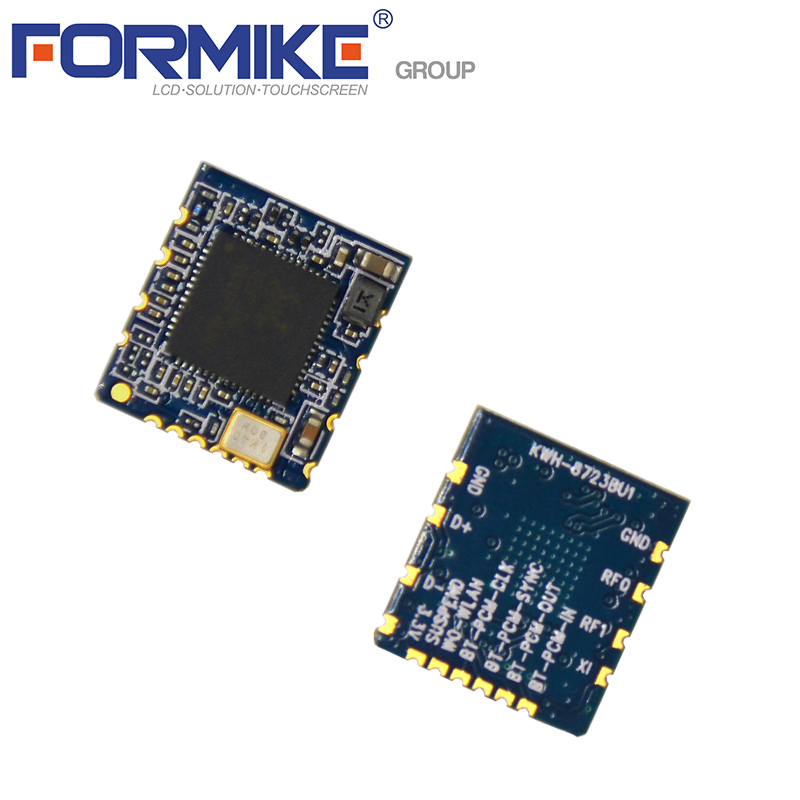

3.3V Bluetooth RTL8723BU USB 2.0 Wifi Module with External Antenna(KWH-8723-BU)

  •  > USB Host Interface
  •  > External Intenna Type
  •  > 2.4G ~ 2.4835 GHz Operating Brand
  •  > wifi standard:802.11b/g/n,BT2.1+EDR/3.0,BT4.0

Part No.

KWH-8723-BU


IMG_256

Dimensionis  ( L x W  mm)

13 x 12.2

Main IC

Realtek RTL8723BU

Operation Voltage (V)

3.3

Host Interface

USB

Operating Temperature

0'C-+70'C

Data rate

150 Mbps

RF Chains

2.4G:1T1R

Antenna type



Internal

N

External

External

Operating Brand



2.4G(2.40G~2.4835GHz)

Y

5.0G(5.15G - 5.82GHz)



Wifi/BT Standard



802.11b/g/n

Y

802.11a



802.11ac



BT2.1+EDR/3.0

Y

BT4.0

Y

Function

WLAN+BT

State

M
