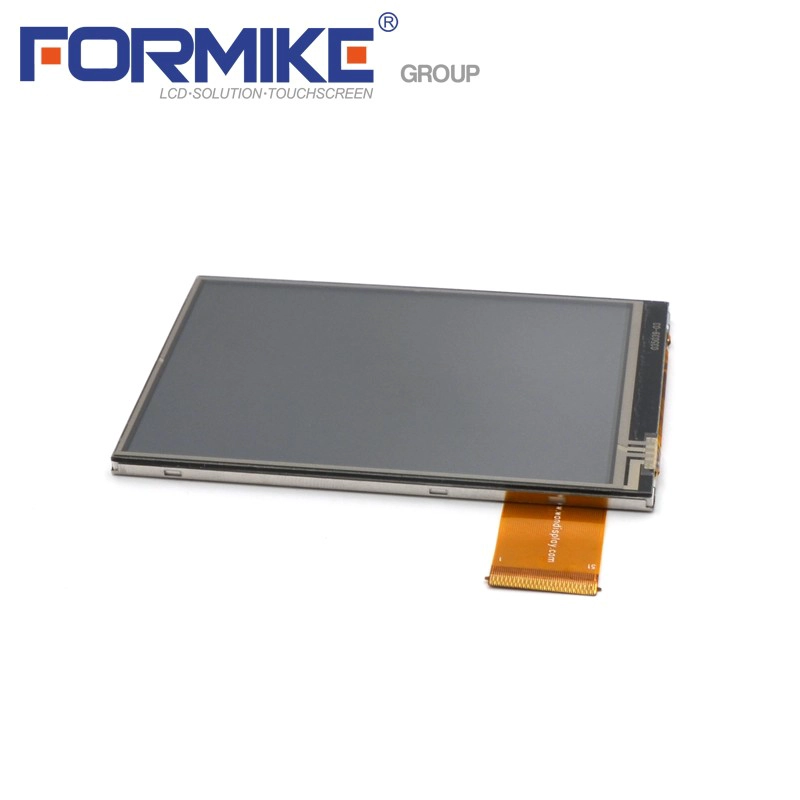

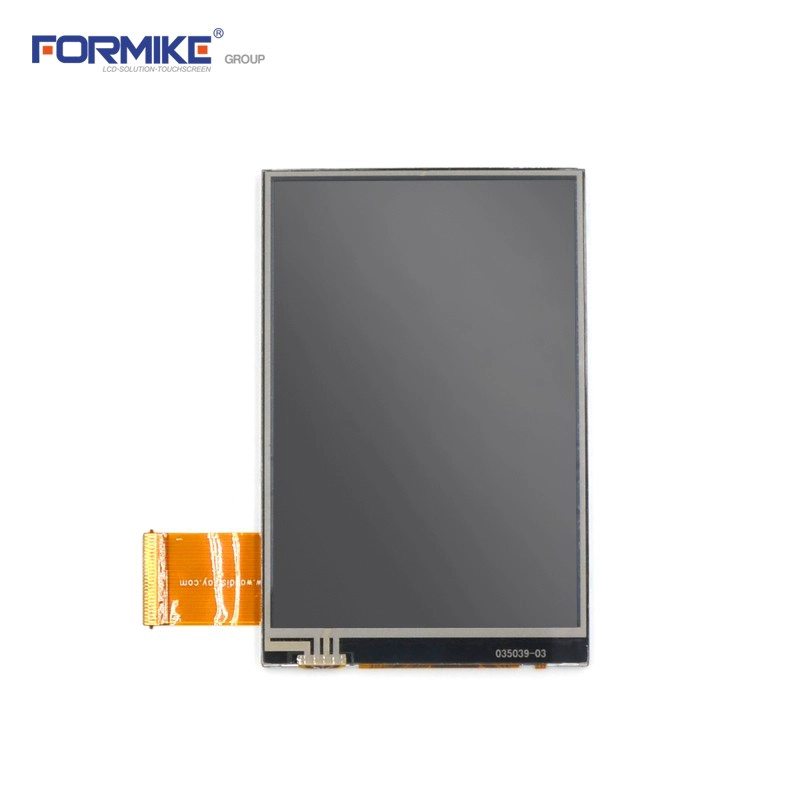

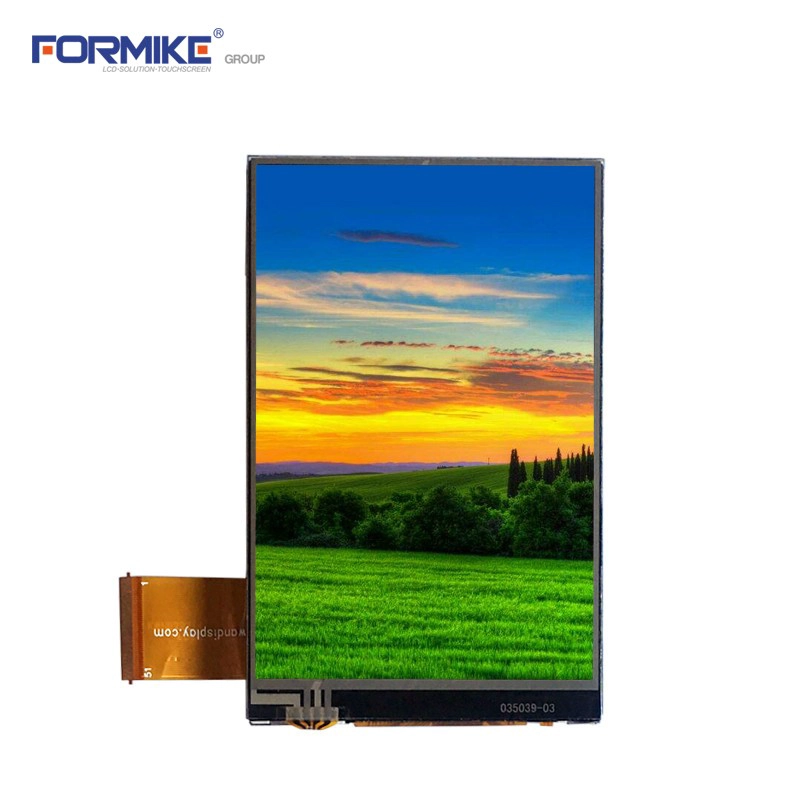

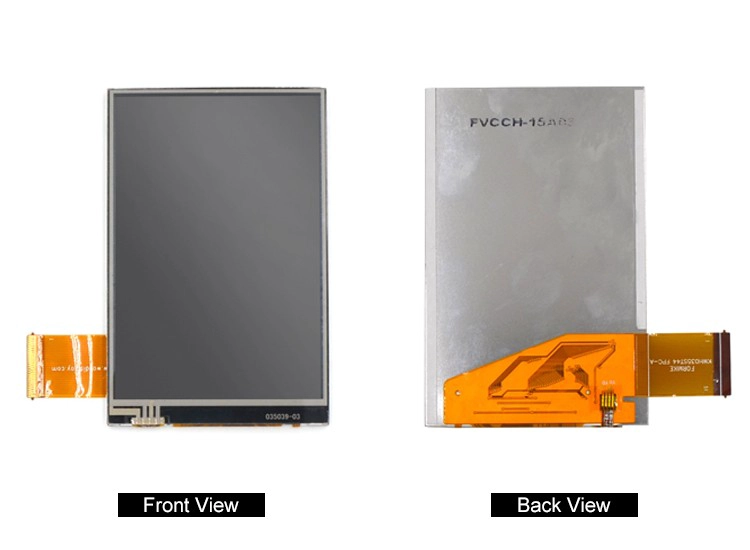

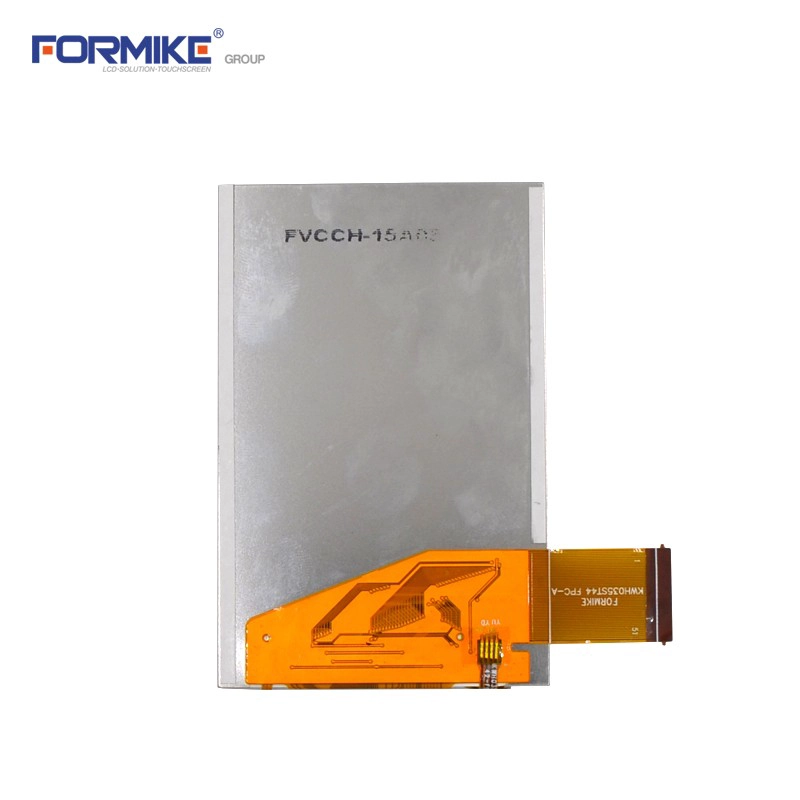

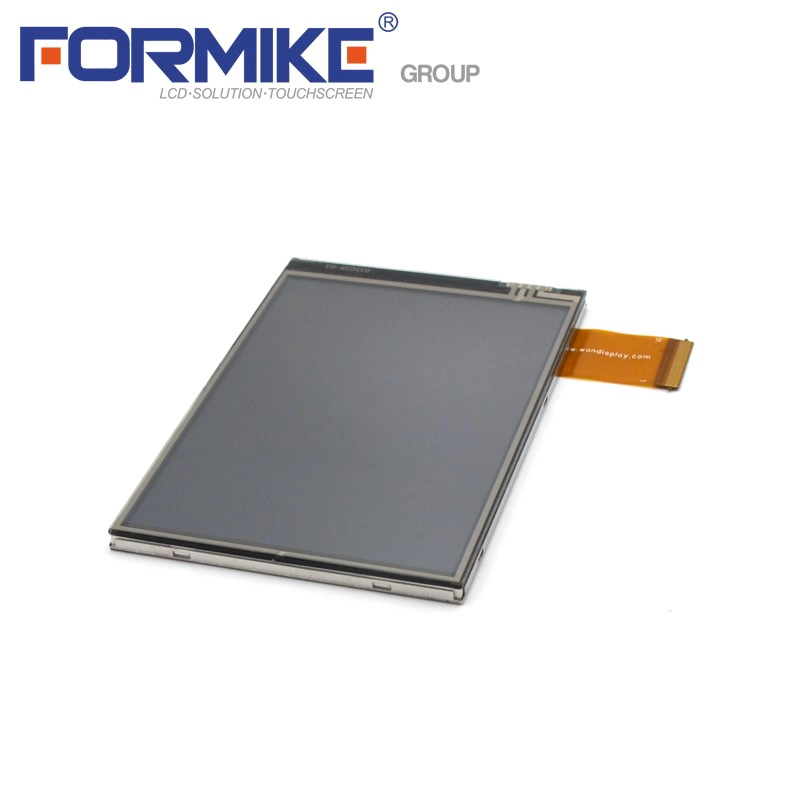

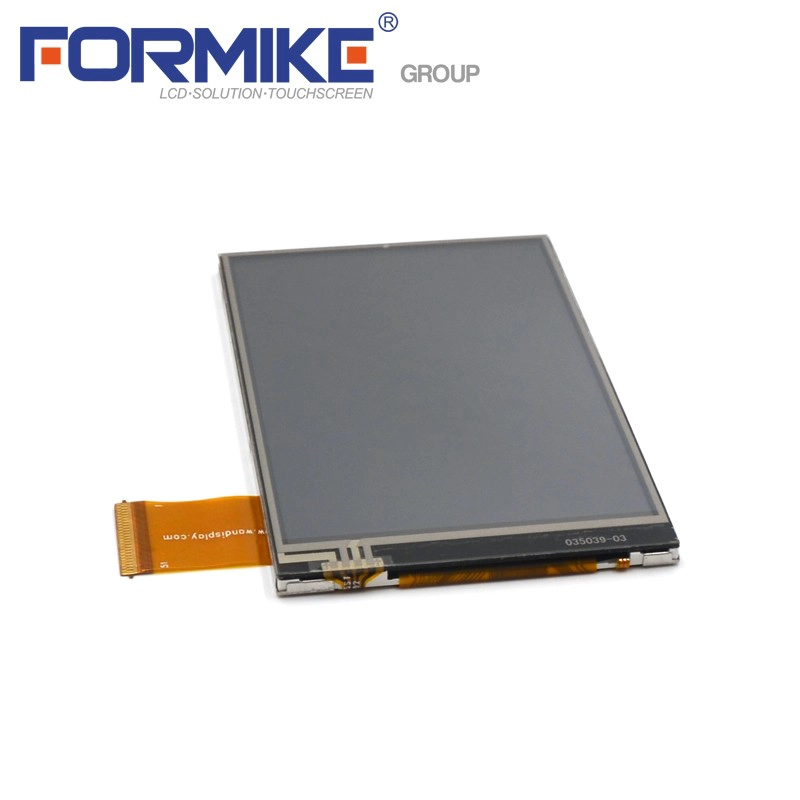

KWH035ST44-F02

KWH035ST44-F02

  • Main Specification
  • 3.5 inch TFT LCD display(Landscape)
  • Resolution: 320 x 3 RGB x 480
  • Interface: 8/9 BIT MCU/16/18/24 BIT RGB
  • Touch Panel : Without

Deatailed Specification

3.5 inch TFT display(Landscape)

Resolution: 320 x 3 RGB x 480

Driver element : a-Si TFT active matrix

Display Type: Normally White,Transmissive,51PIN

Driving IC:HX8238-A or equivalent

Color configurtion : R.G.B-stripe

Interface: 8/9 BIT MCU/16/18/24 BIT RGB

Module Size:55.04(W) x 84.71(L) x 3.65(H) (MAX)

Active Area:78.96(W) x 73.44(L)

Touch Panel : Option
