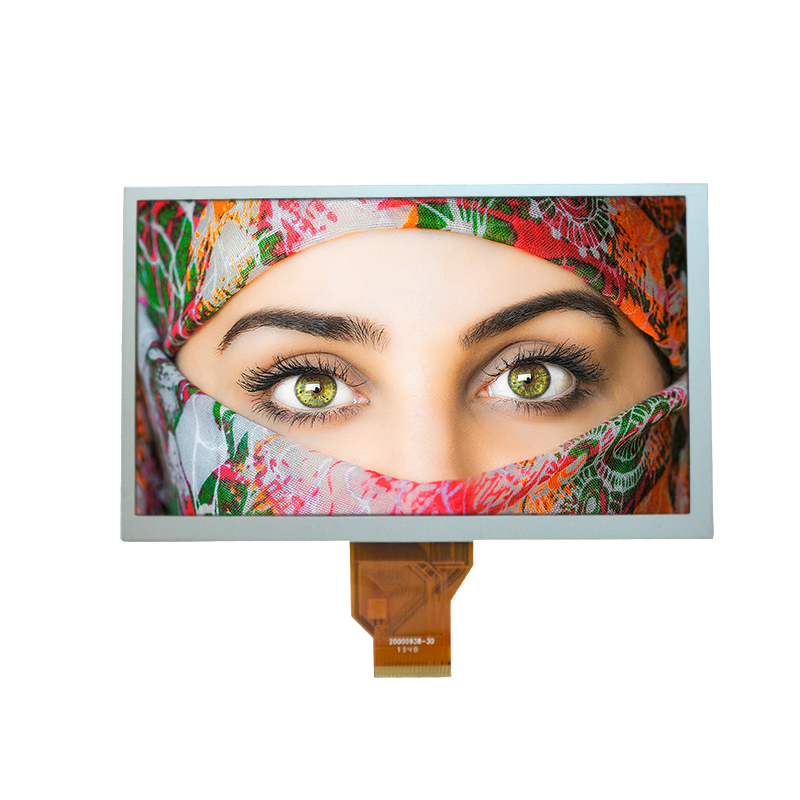

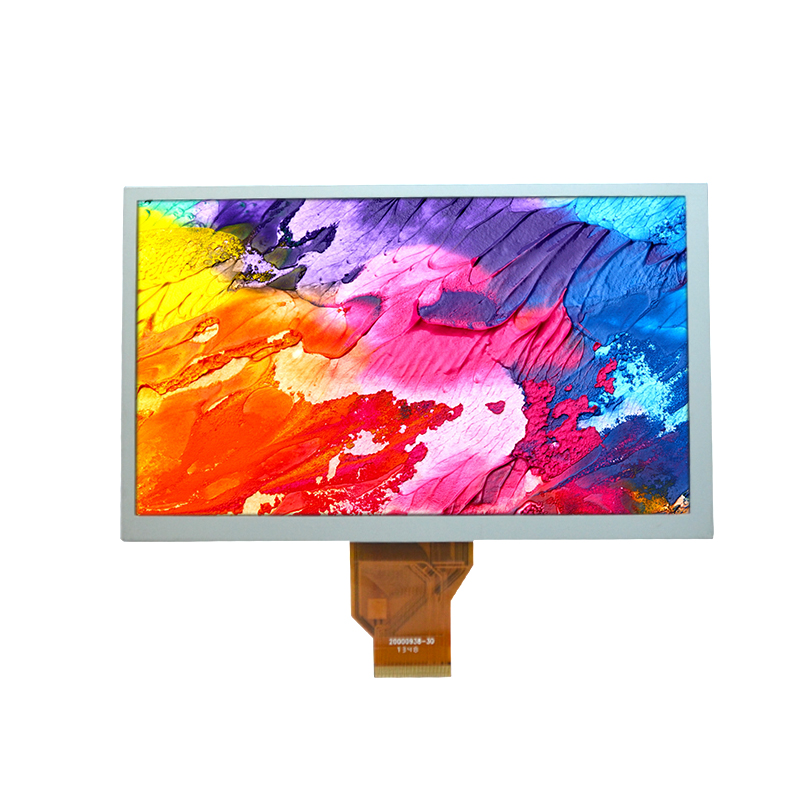

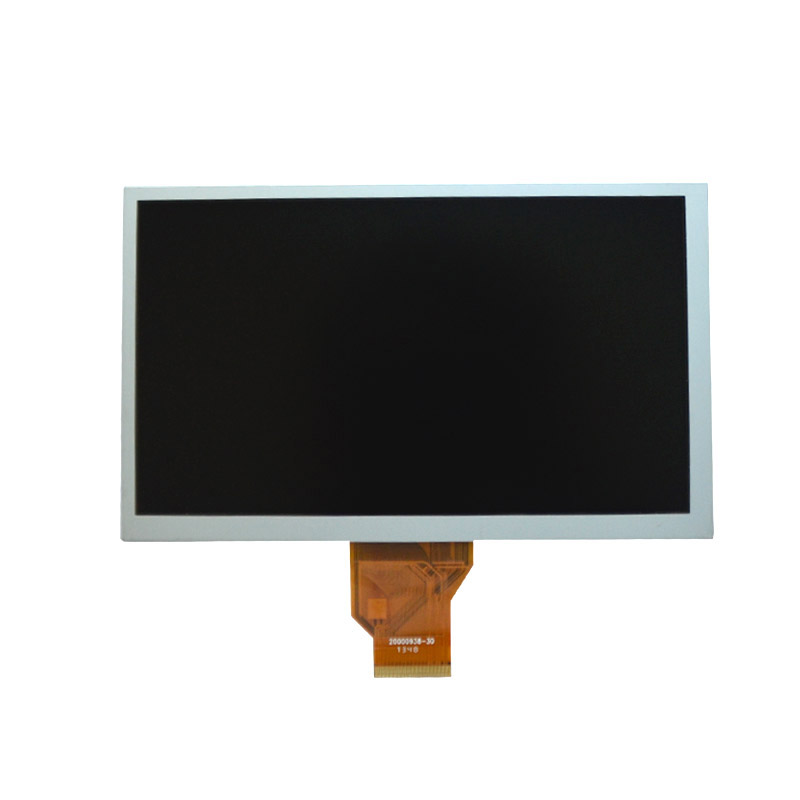

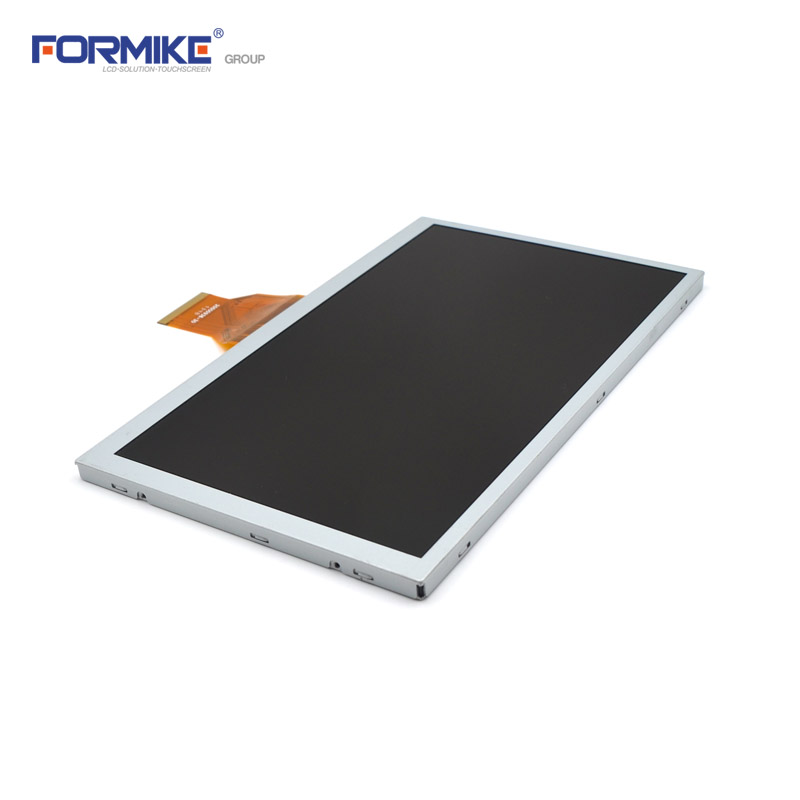

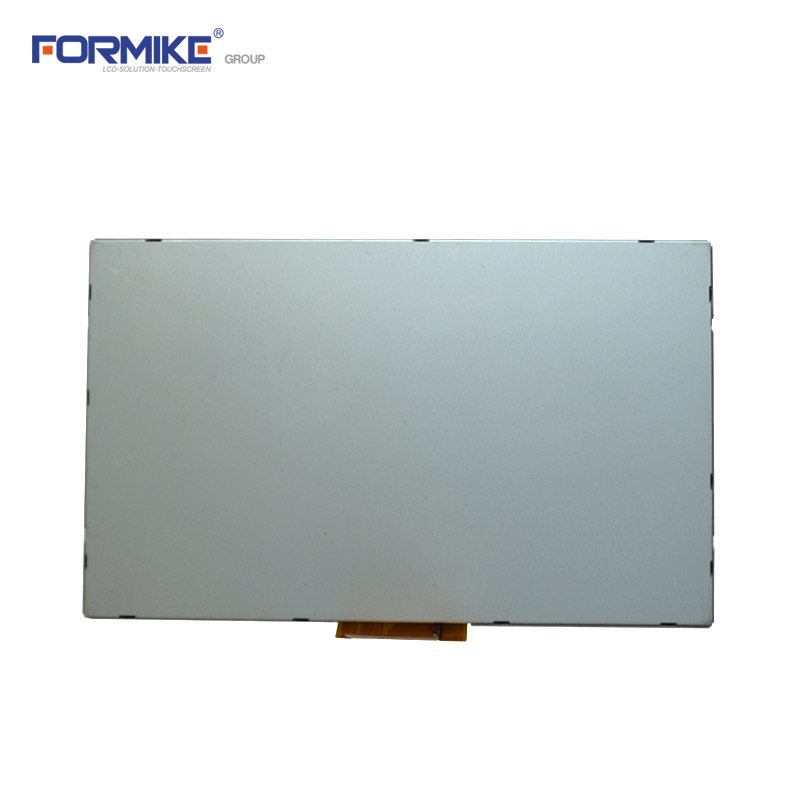

50 Pin TFT LCD Module 8 Inch 800x480 LCD Display TFT 8inch LCD Panel(KWH080KQ08-F01)

50 Pin TFT LCD Module 8 Inch 800x480 LCD Display TFT 8inch LCD Panel(KWH080KQ08-F01)

LCD Name: 50 Pin TFT LCD Module 8 Inch 800x480 LCD Display TFT 8inch LCD Panel
LCD size: 8 Inch LCD Display
Display mode: Transmissive TFT
Touch Panel: Without touch screen
Resolution: 800x480

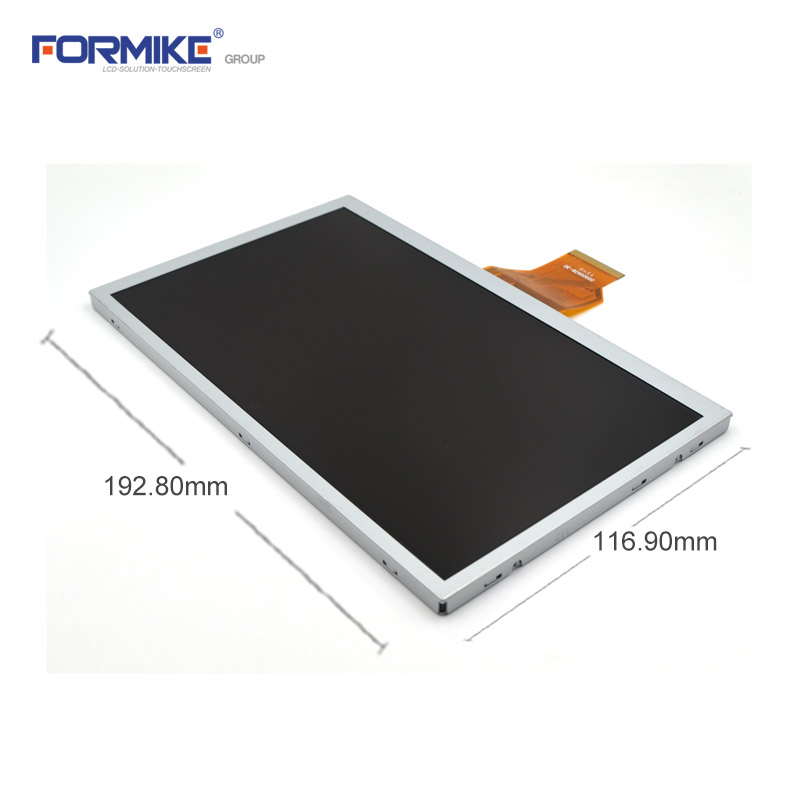

Outline dimensions: 192.80 x 116.90x 6.40mm
Active area: 176.64x99.36mm
Viewing Direction: 6 O’clock
Brightness: 450 cd/m2
Contrast Ratio: 500: 1
Supply Voltage: 9.3V
Supply Current: 240mA
Power dissipation: 2232mW
Interface: Digital RGB Interface

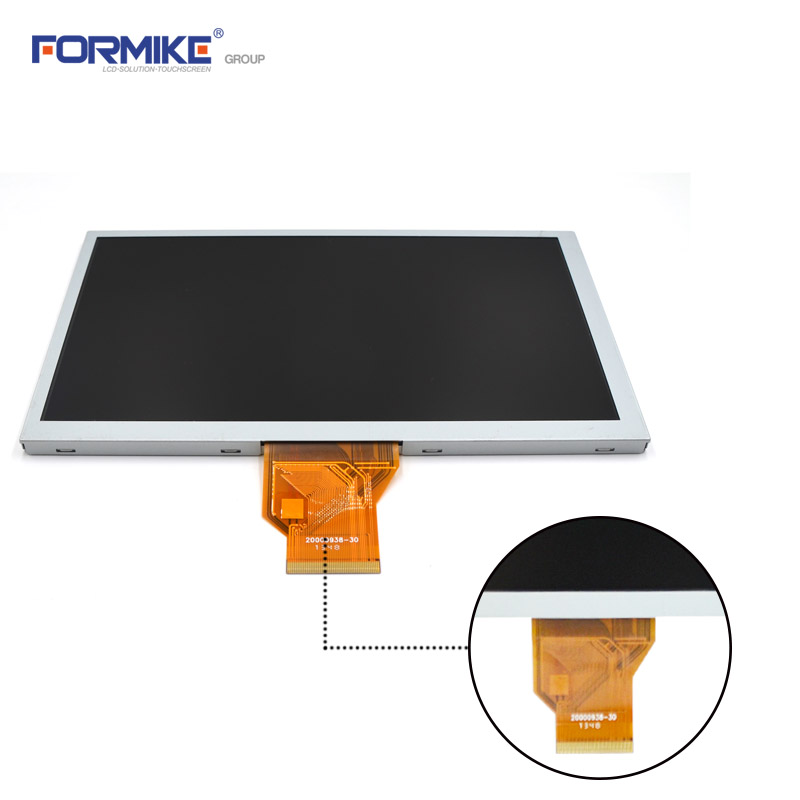

Connector: 50 pin FPC
Backlight: 36 White LED In serial/parallel

50 Pin TFT LCD Module 8 Inch 800x480 LCD Display TFT 8inch LCD Panel

tft lcd module 8 inch

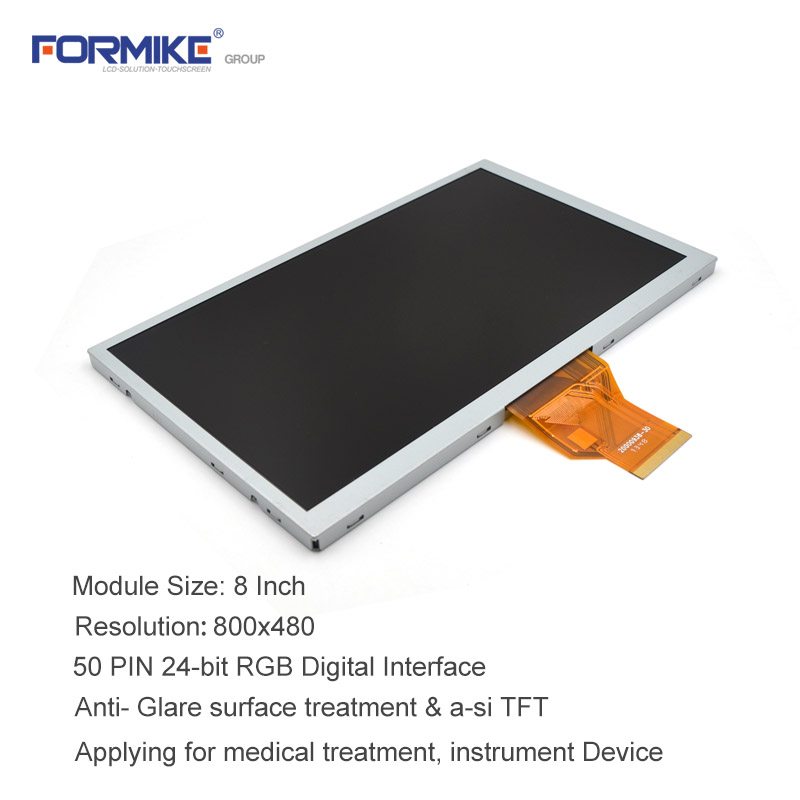

LCD Name	50 Pin TFT LCD Module 8 Inch 800x480 LCD Display TFT 8inch LCD Panel
LCD Size	8 inch LCD Module	Resolution	800(RGB)X480 Resolution
Resolution Configuration	RGB stripe	Contrast Ratio	500:1
Outline Dimension	192.80x 116.90 x 6.40mm	Active Area(HxV mm)	176.64x99.36mm
Viewing Direction	6 O'Clock	Interface	24-bit RGB, Digital, 50 Pin
Backlight	36 LED	Brightness	450cd/m2
Operating Temperature	-30℃~85℃	Backlight Supply Current/Voltage	240mA, 3.3V
Display element	a-si TFT	Surface Treatment	Anti- Glare type

* KWH080KQ08-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

8 inch 800x480 LCD Display tft 8inch lcd panel
