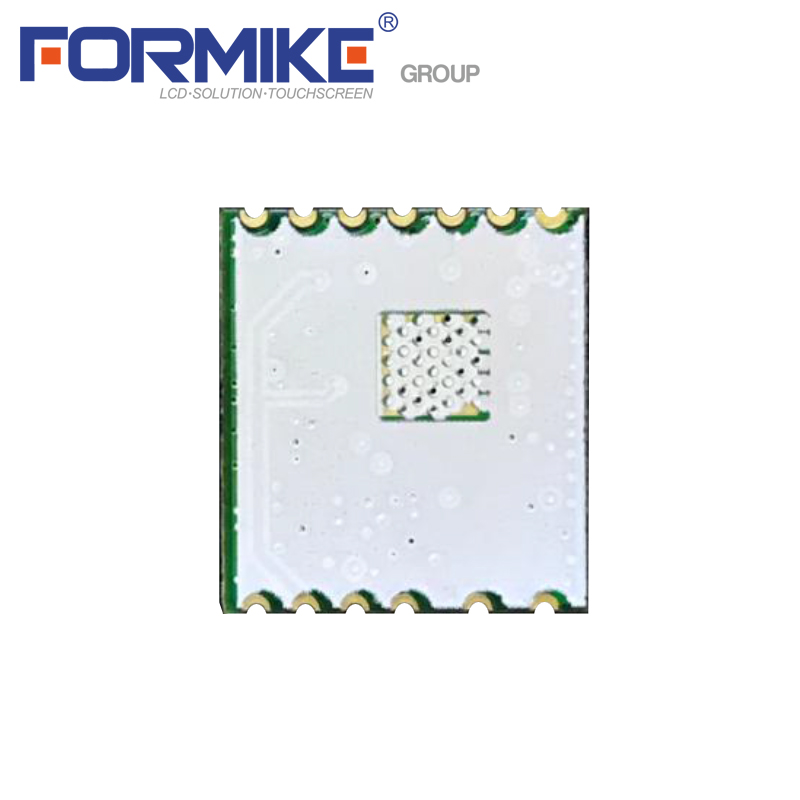

Realtek RTL8189ES chipset SDIO host interface module Wifi IC(KWH-8189-ES4)
- > SDIO Host Interface
- > External Intenna Type
- > 2.4G ~ 2.4835 GHz Operating Brand
- > 802.11b/g/n wifi standard
|
Part No. |
KWH-8189-ES4 |
|
Picture |
|
|
Dimensionis ( L x W mm) |
14 x 12.5 |
|
Main IC |
Realtek RTL8189ES |
|
Operation Voltage (V) |
3.3 |
|
Host Interface |
SDIO |
|
Operating Temperature |
0'C-+70'C |
|
Data rate |
150 Mbps |
|
RF Chains |
2.4G:1T1R |
|
Antenna type |
|
|
Internal |
N |
|
External |
External |
|
Operating Brand |
|
|
2.4G(2.40G~2.4835GHz) |
Y |
|
5.0G(5.15G - 5.82GHz) |
|
|
Wifi/BT Standard |
|
|
802.11b/g/n |
Y |
|
802.11a |
|
|
802.11ac |
|
|
BT2.1+EDR/3.0 |
|
|
BT4.0 |
|
|
Function |
WLAN |
|
State |
M |
