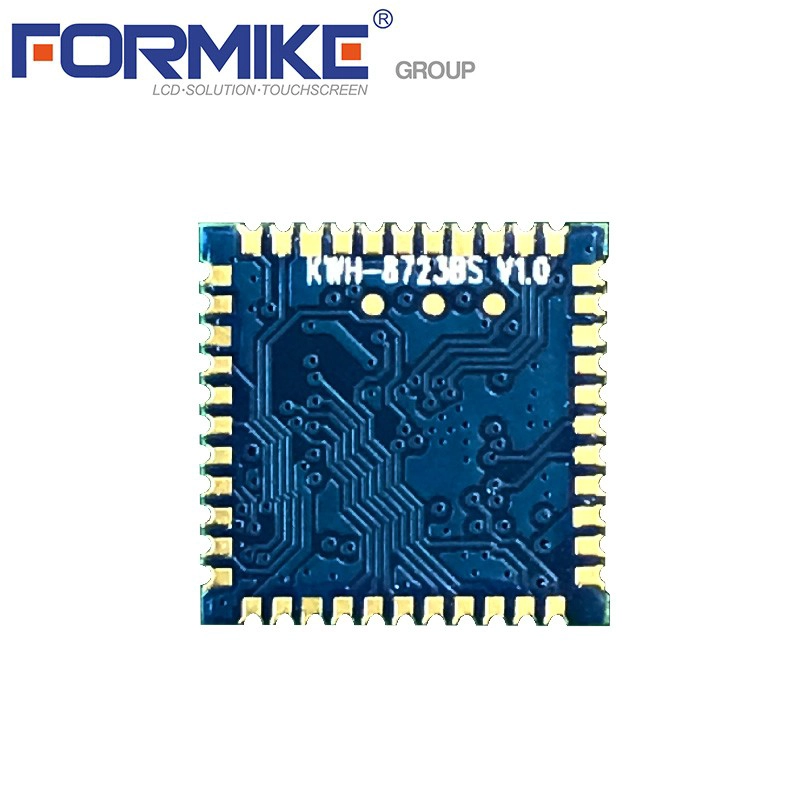

RTL8723BS chipset SDIO WiFi wireless transmitter and receiver module(KWH-8723-BS)RTL8723BS chipset SDIO WiFi wireless transmitter and receiver module(KWH-8723-BS)

RTL8723BS chipset SDIO WiFi wireless transmitter and receiver module(KWH-8723-BS)

  •  > SDIO Host Interface
  •  > External Intenna Type
  •  > 2.4G ~ 2.4835 GHz Operating Brand
  •  > wifi standard:BT2.1+EDR/3.0,BT4.0

Part No.

KWH-8723-BS


IMG_256

Dimensionis  ( L x W  mm)

12 x 12

Main IC

Realtek RTL8723BS

Operation Voltage (V)

3.3

Host Interface

SDIO

Operating Temperature

0'C-+70'C

Data rate

150 Mbps

RF Chains

2.4G:1T1R

Antenna type



Internal

N

External

External

Operating Brand



2.4G(2.40G~2.4835GHz)

Y

5.0G(5.15G - 5.82GHz)



Wifi/BT Standard



802.11b/g/n

Y

802.11a



802.11ac



BT2.1+EDR/3.0

Y

BT4.0

Y

Function

WLAN+BT

State

M
