Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64

Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64

  • LCD Name:Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64
  • Display Format:128x64
  • Display Mode:FSTN, Positive, Transflective
  • LCD Color:Display dot : Black,
  • Background: White

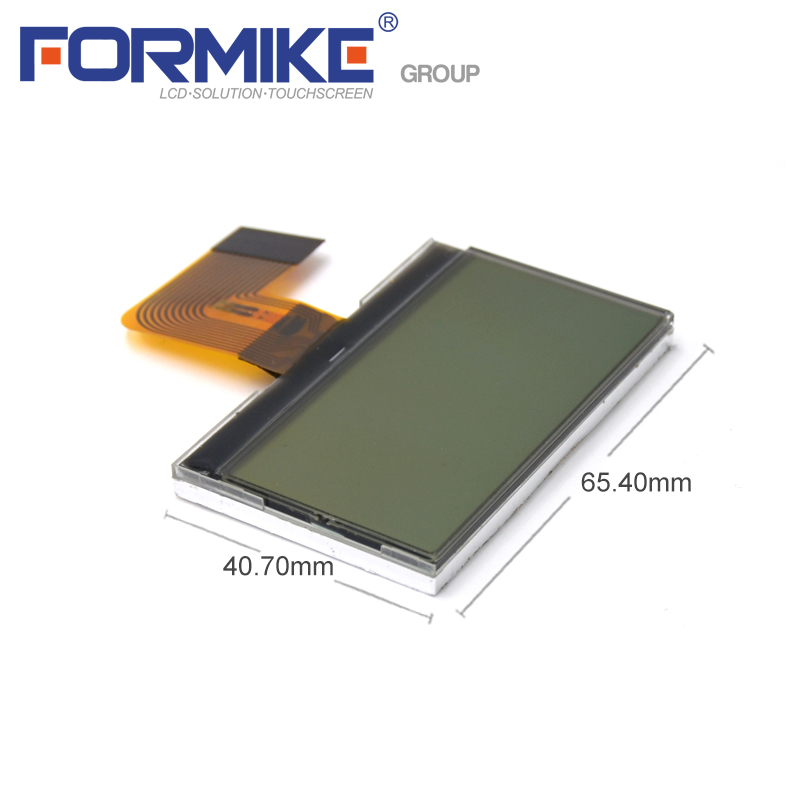

  • Outline Dimension:65.4(W) x40.7(H) x6.3(T) mm
  • Active Area:57.5MIN(W) x28.78MIN(H)mm
  • Viewing Direction:12 O’clock
  • Interface Input Data:SPI
  • Backlight:White LED backlight
  • Driving Method:1/64 Duty, 1/9 Bias
  • Working Temp.:-20℃~+70℃
  • Storage Temp.:-30℃~+80℃

Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64



128x64 cog lcd

LCD Name

Mono Graphics LCD Display 12864 COG LCD Display FPC 128x64

Display Format

128*64

Display Mode

FSTN, Transflective, positive

Outline Dimension

65.40*40.70*6.3 mm

Active Area

60.00*31.00 mm

Viewing Direction

12 O’clock

DUTY/BIAS

1/64, 1/9

Type

COG

Driver IC

ST7567

Working Temp.

-20℃~+70℃

Storage Temp.

-30℃~+80℃

Interface

SPI

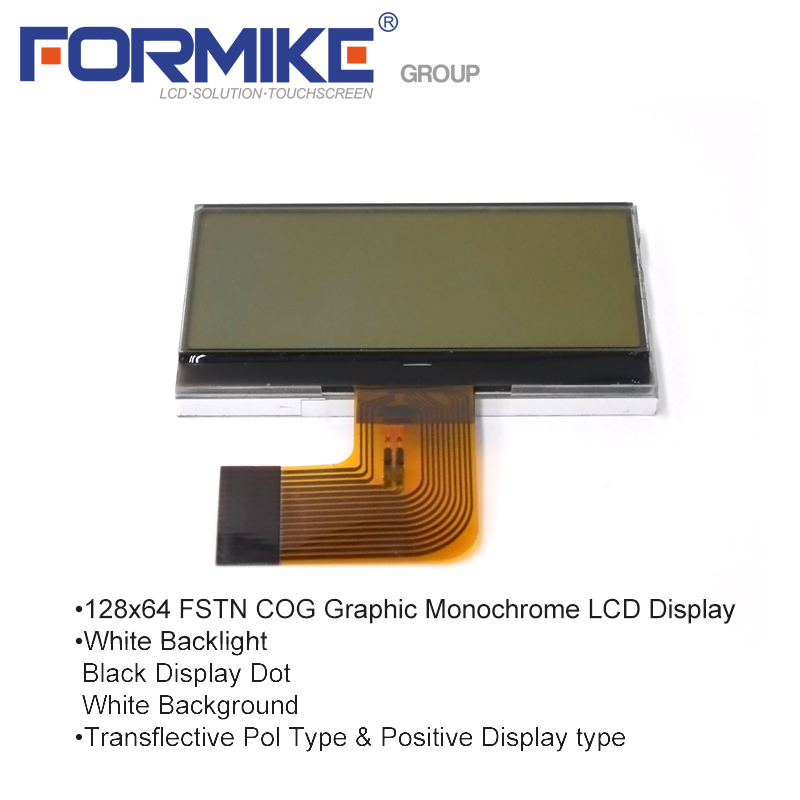

*WG1206Z3FSW7G is a Monochrome COG type FSTN, Transflective, Positive LCD.

* It is composed of a monochrome LCD panel, driver IC, FPC, and backlight.

*It is 128x64 dots monochrome Graphic FSTN lcd display.

* Backlight with white,blue,yellow,red color

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

128x64 graphic screen

lcd display 128x64 128x64 pixels display module lcd display
