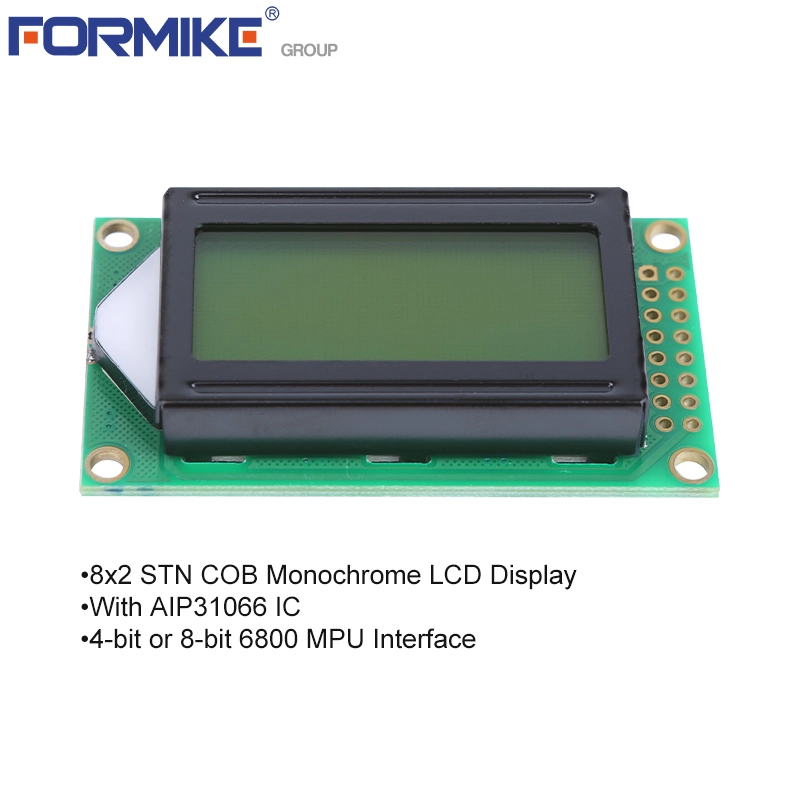

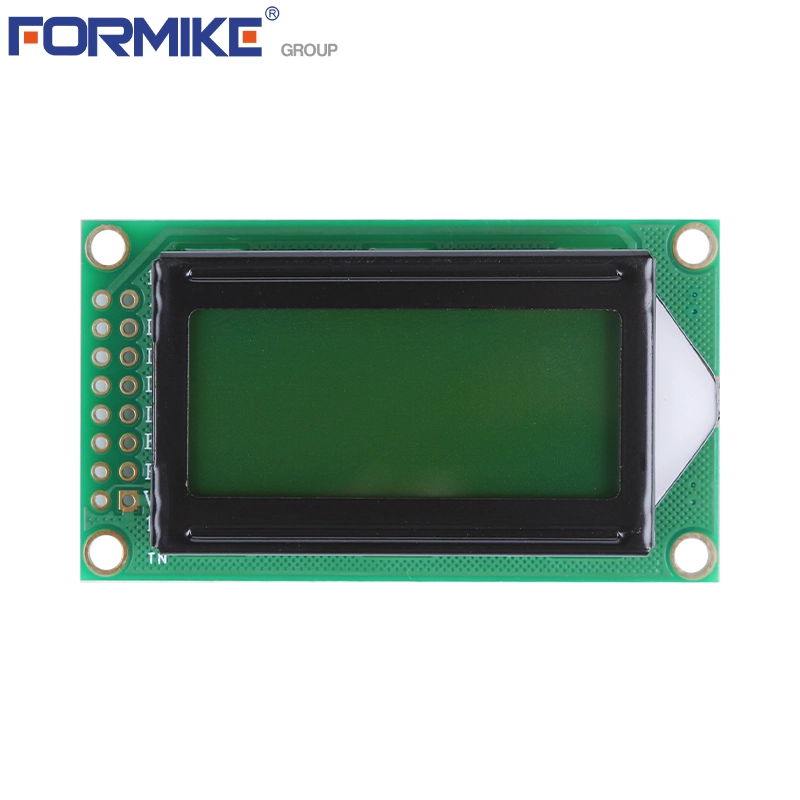

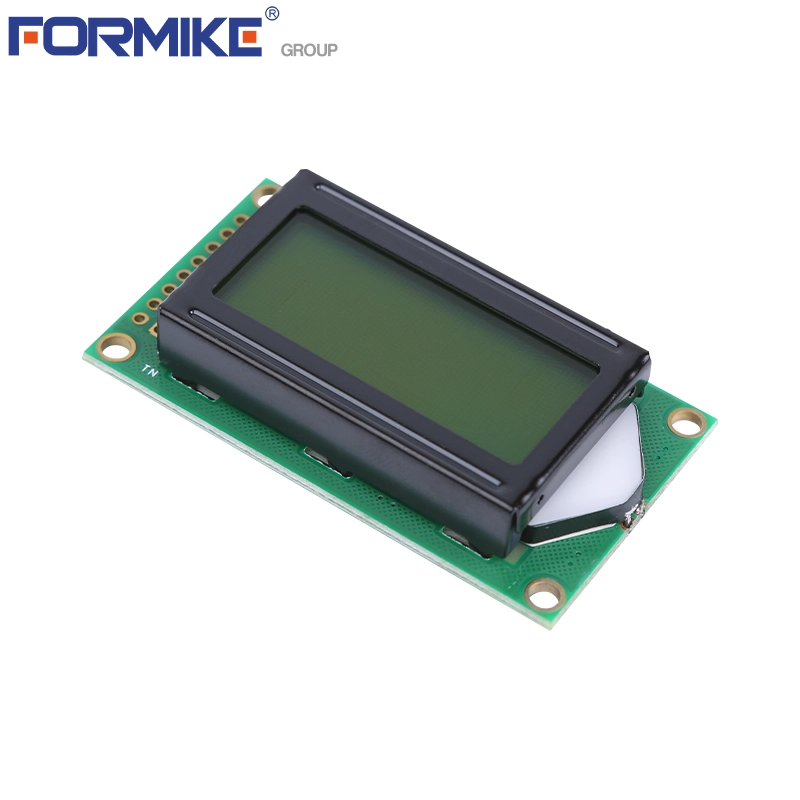

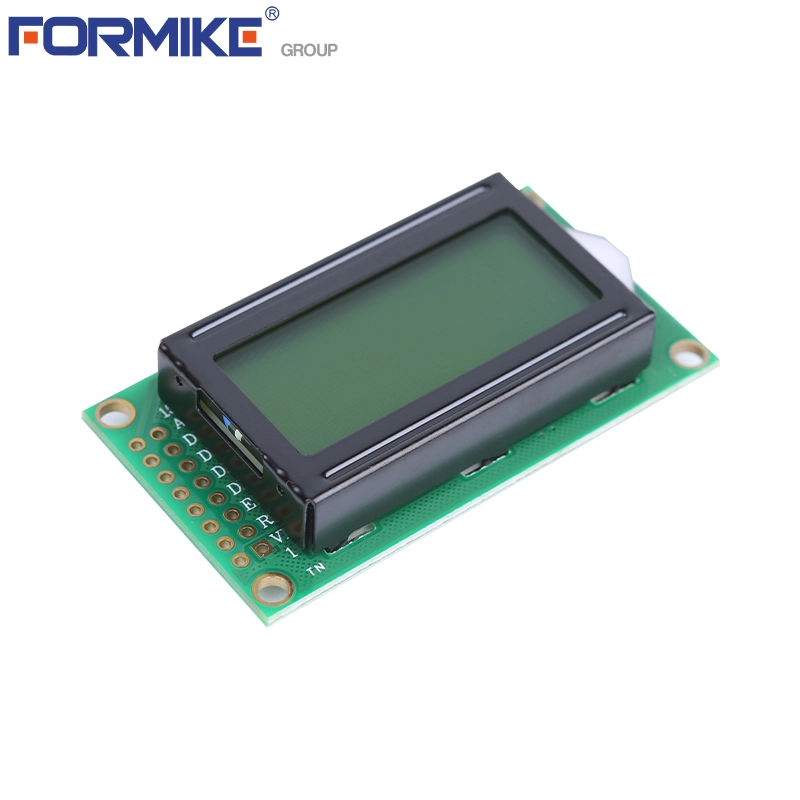

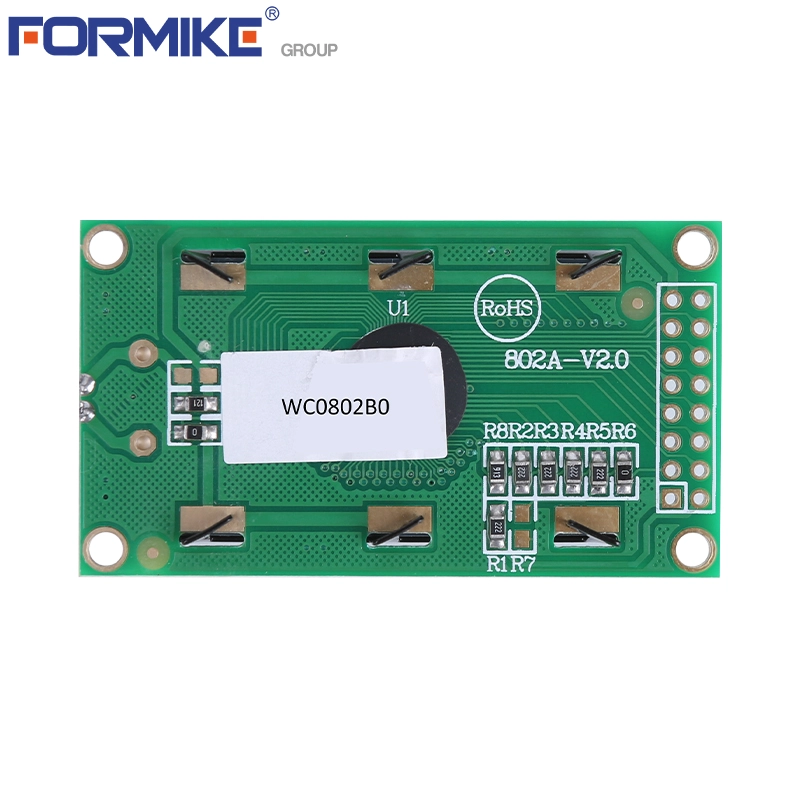

Character Lcd 2x8 0802 Display Modules For Instrument Meter (WC0802B0)

Browse Categories

TFT Display

Mono Display

OLED Display

Smart Watches

Smart Home Products

Touch Screen

LCD Name: Character Lcd 2x8 0802 Display Modules For Instrument Meter (WC0802B0)
Display Format: 8character*2 line

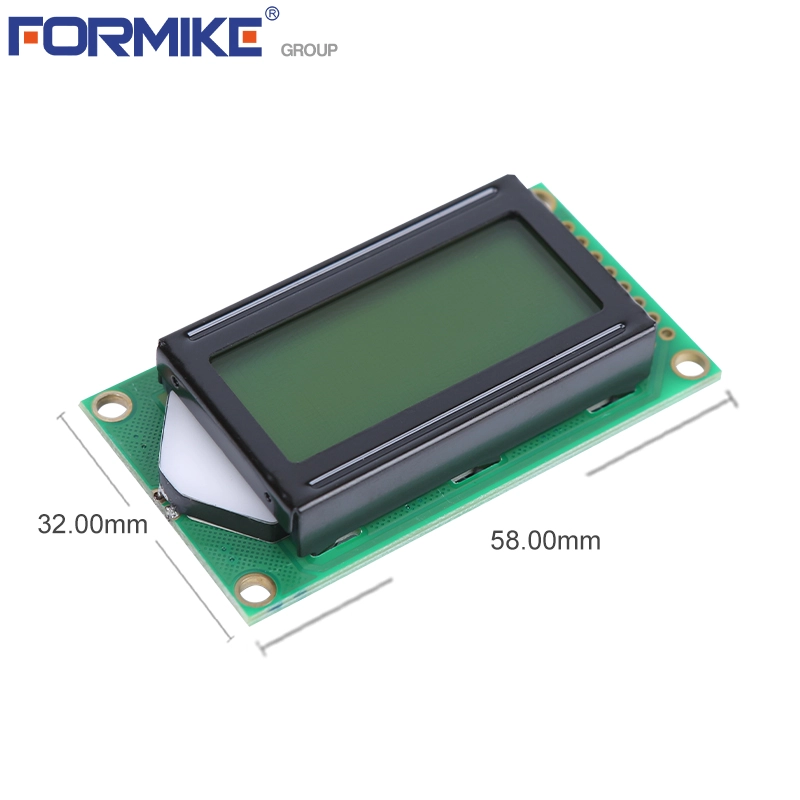

Module Size: 58.0mm×32.0mm×13.2mm
View Area: 38.0mm×16.0mm
Character Size: 2.96mm×5.56mm
Character Pitch: 3.55mm×5.94mm
IC: AIP31066 or Eqv (Defualt English / Japan Font)
Interface: 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method: 1/16 Duty, 1/5 Bias
Viewing Direction: 6 O’clock
Operating Temperature: -20℃~+70℃
Storage Temperature: -30℃~+80℃

Character Lcd 2x8 0802 Display Modules For Instrument Meter

0802 display

Product Specification
LCD Name			Character Lcd 2x8 0802 Display Modules For Instrument Meter
Display Format			8character*2 line
Module Size			58.0mm×32.0mm×13.2mm
View Area			38.0mm×16.0mm
Character Size			2.96mm×5.56mm
Character Pitch			3.55mm×5.94mm
IC			AIP31066 or Eqv (Defualt English / Japan Font)
Interface			16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method			1/16 Duty, 1/5 Bias
Viewing Direction			6 O’clock
Operating Temperature			-20℃~+70℃
Storage Temperature			-30℃~+80℃
Different series type LCD mode for you to choose
No.	Part Number	LCD Type	Backlight Color	Font Color	Background Color	Voltage
1	WC0802B0SBY6B-A1	STN Y-G Positive	Yellow Green Color	Black Color	Yellow Green Color	5V
2	WC0802B0SKW6B-A1	STN Grey Positive	White Color	Black Color	Grey Color	5V
3	WC0802B0SGW6B-A1	STN Negative Blue	White Color	White Color	Blue Color	5V

lcd 2x8

character lcd
