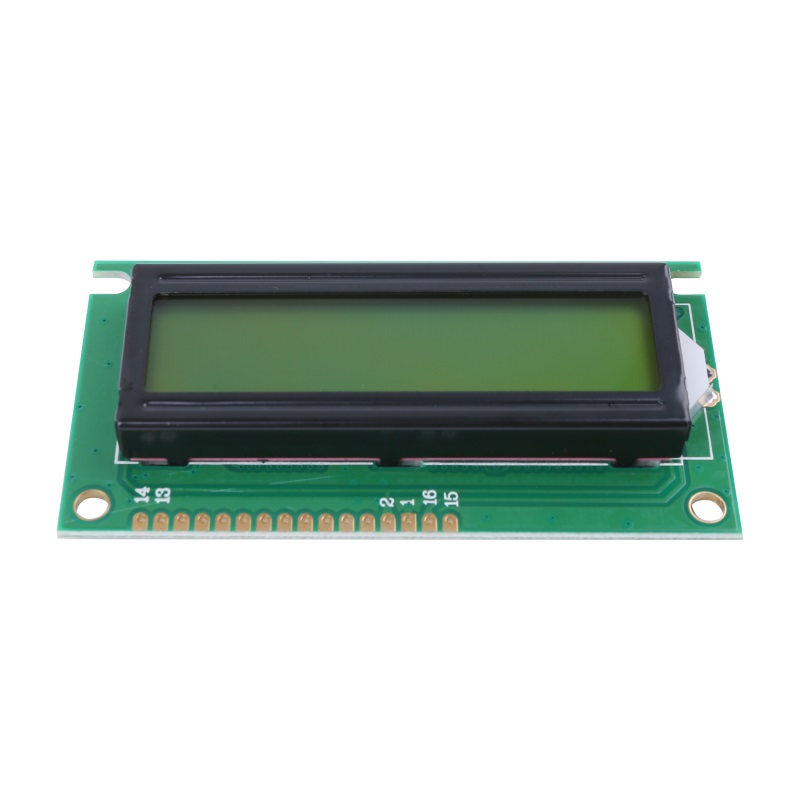

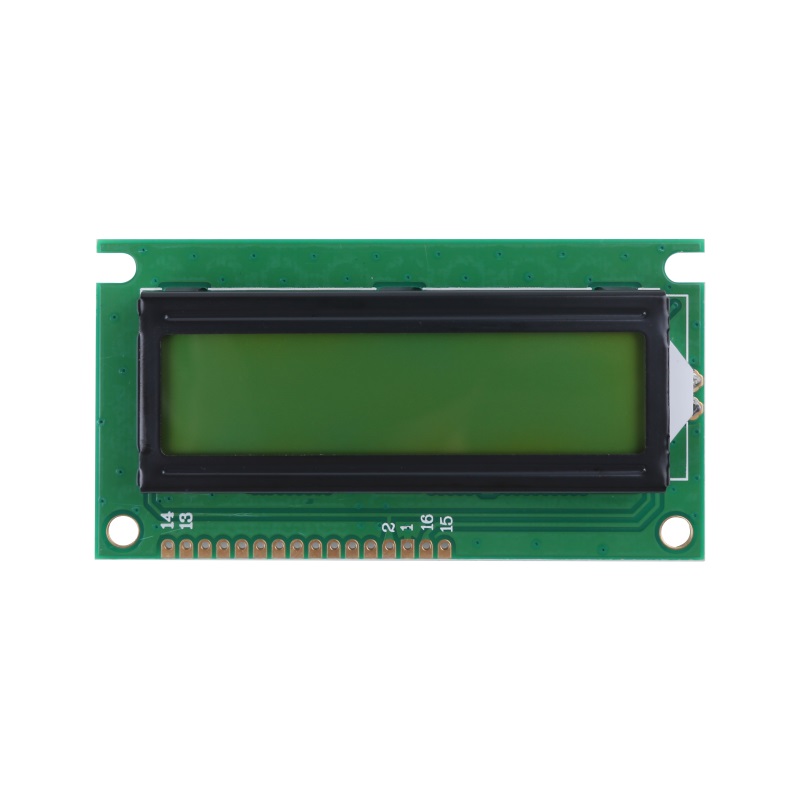

LCD Display 16x2 LCD 5v 3.3v 1602 LCD Seriel Parallel Interface LCD Module (WC1602B4)
- Product Specification
- LCD Name: LCD Display 16x2 LCD 5v 3.3v 1602 LCD Seriel Parallel Interface LCD Module
- Display Format: 16character*2 line
- Module Size: 84.0mm×44.0mm×13.0mm
- View Area: 64.5mm×16.0mm
- Character Size: 2.96mm×5.53mm
- Character Pitch: 3.55mm×5.98mm
- IC: AIP31066 or Eqv (Defualt English / Japan Font)

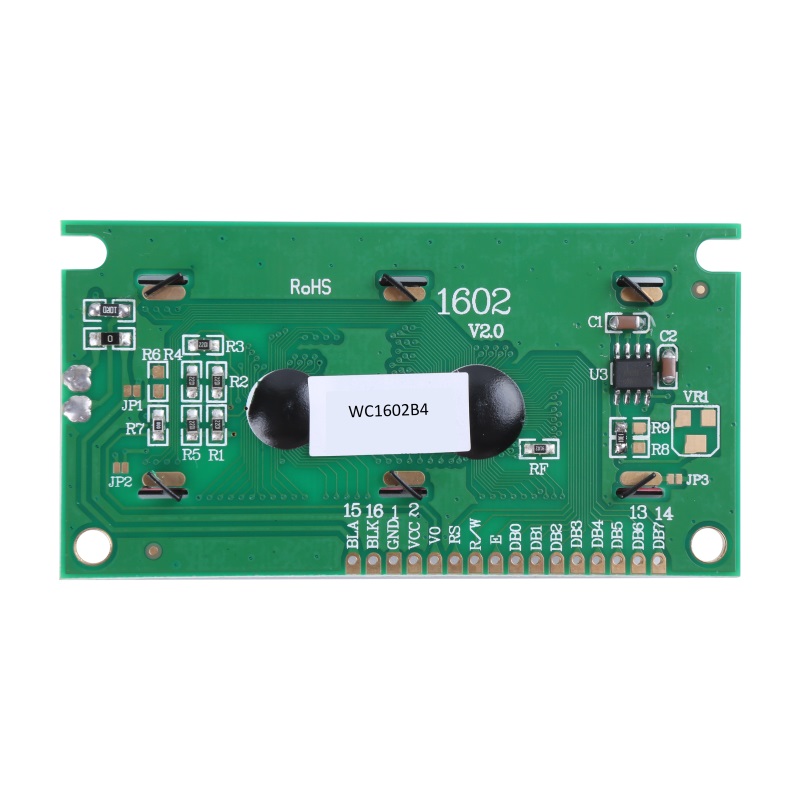

- Interface: 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
- Driving Method: 1/16 Duty, 1/5 Bias
- Viewing Direction: 6 O’clock
- Operating Temperature: -20℃~+70℃
- Storage Temperature: -30℃~+80℃
- Different series type LCD mode for you to choose
LCD Display 16x2 LCD 5v 3.3v 1602 LCD Seriel Parallel Interface LCD Module
| Product Specification | ||||||
|---|---|---|---|---|---|---|
| LCD Name | LCD Display 16x2 LCD 5v 3.3v 1602 LCD Seriel Parallel Interface LCD Module | |||||
| Display Format | 16character*2 line | |||||
| Module Size | 84.0mm×44.0mm×13.0mm | |||||
| View Area | 64.5mm×16.0mm | |||||
| Character Size | 2.96mm×5.53mm | |||||
| Character Pitch | 3.55mm×5.98mm | |||||
| IC | AIP31066 or Eqv (Defualt English / Japan Font) | |||||
| Interface | 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled | |||||
| Driving Method | 1/16 Duty, 1/5 Bias | |||||
| Viewing Direction | 6 O’clock | |||||
| Operating Temperature | -20℃~+70℃ | |||||
| Storage Temperature | -30℃~+80℃ | |||||
| Different series type LCD mode for you to choose | ||||||
| No. | Part Number | LCD Type | Backlight Color | Font Color | Background Color | Voltage |
| 1 | WC1602B4SBY6B-A1 | STN Y-G Positive | Yellow Green Color | Black Color | Yellow Green Color | 5V |
| 2 | WC1602B4SBY6B-A2 | STN Y-G Positive | Yellow Green Color | Black Color | Yellow Green Color | 3.3V |
| 3 | WC1602B4SGW6B-A1 | STN Negative Blue | White Color | White Color | Blue Color | 5V |
| 4 | WC1602B4SGW6B-A2 | STN Negative Blue | White Color | White Color | Blue Color | 3.3V |
| 5 | WC1602B4SKW6B-A1 | STN GREY Positive | White Color | Black Color | Grey Color | 5V |
| 6 | WC1602B4SKW6B-A2 | STN GREY Positive | White Color | Black Color | Grey Color | 3.3V |
